Digital Inputs
The two digital inputs are independent of the internal data bus. This means that
digital signals are processed even if the internal data bus breaks down.
Voltage range Low: -3 V … +5 V
High: +11 V … +30 V (+24 V standard)
Max. current per
channel
5 mA
Channels
2
Input impedance Min. 1.5 kOhm
Max. 6 kOhm at 30 V
Characteristics Optocoupler, 2 kV
Low-pass filter, 10 kHz
Current limitation
Surge protection
Reverse voltage protection

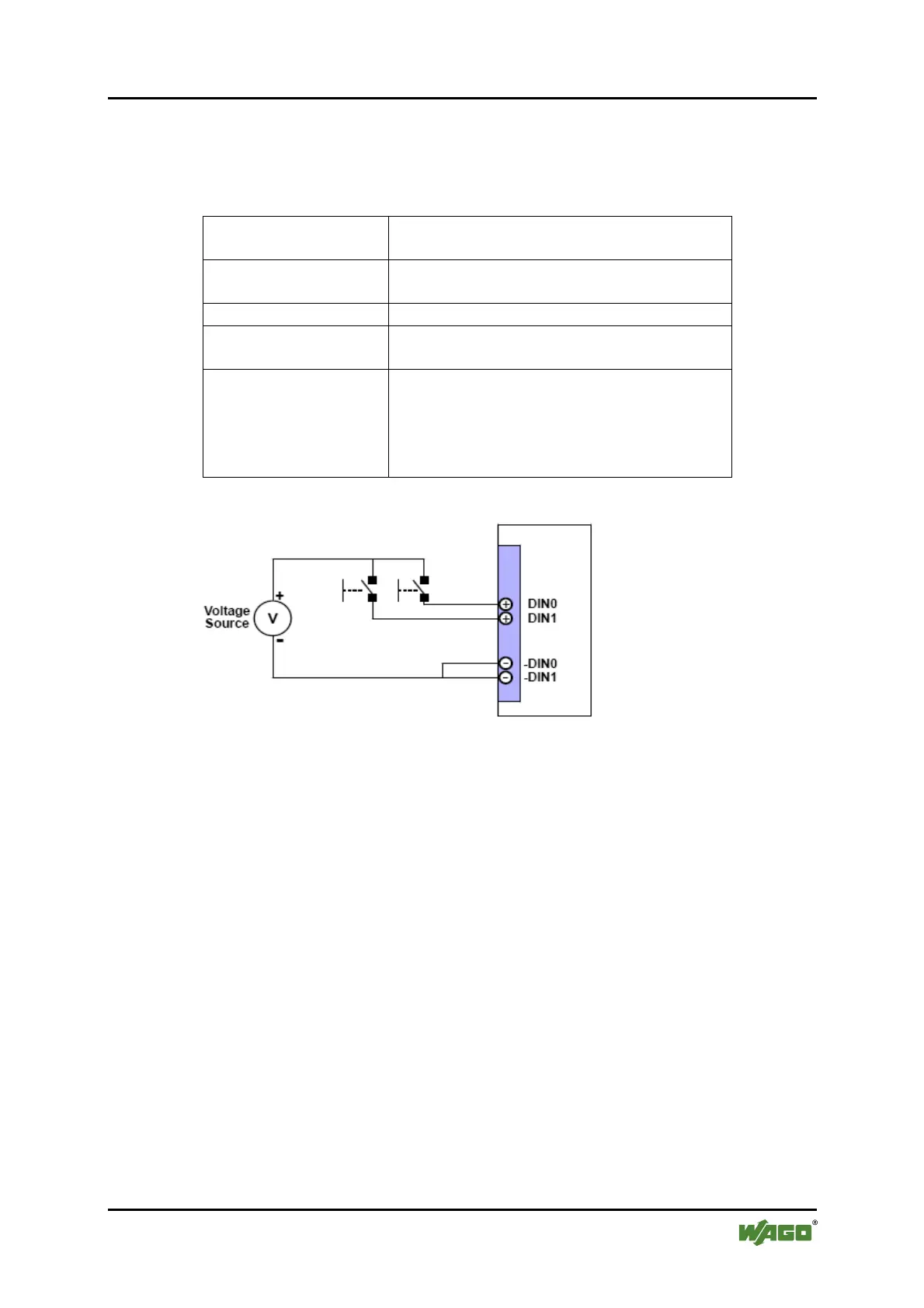

Figure 8: Connection of integrated inputs
1
2
9
10
I/O-IPC
