17.1 Marking Configuration Examples
Pos: 56.5 /Serie 750 (W AGO-I/O-SYSTEM)/Einsat z in Ex-Bereichen/Kenn zeichnung für Europa ge mäß CENELEC und IEC - Überschr ift 3 @ 3\mod_1224157620203_21. doc @ 24185 @ 3 @ 1
17.1.1 Marking for Europe according to CENELEC and IEC
Pos: 56.6 /Serie 750 (W AGO-I/O-SYSTEM)/Ei nsatz in Ex-Bereichen/Bei spielbedruckung der ATEX- und IEC-Ex-zugelass enen Busklemmen ge mäß CENELEC und IEC @ 7\mod_127434003 1573_21.doc @ 56687 @ @ 1

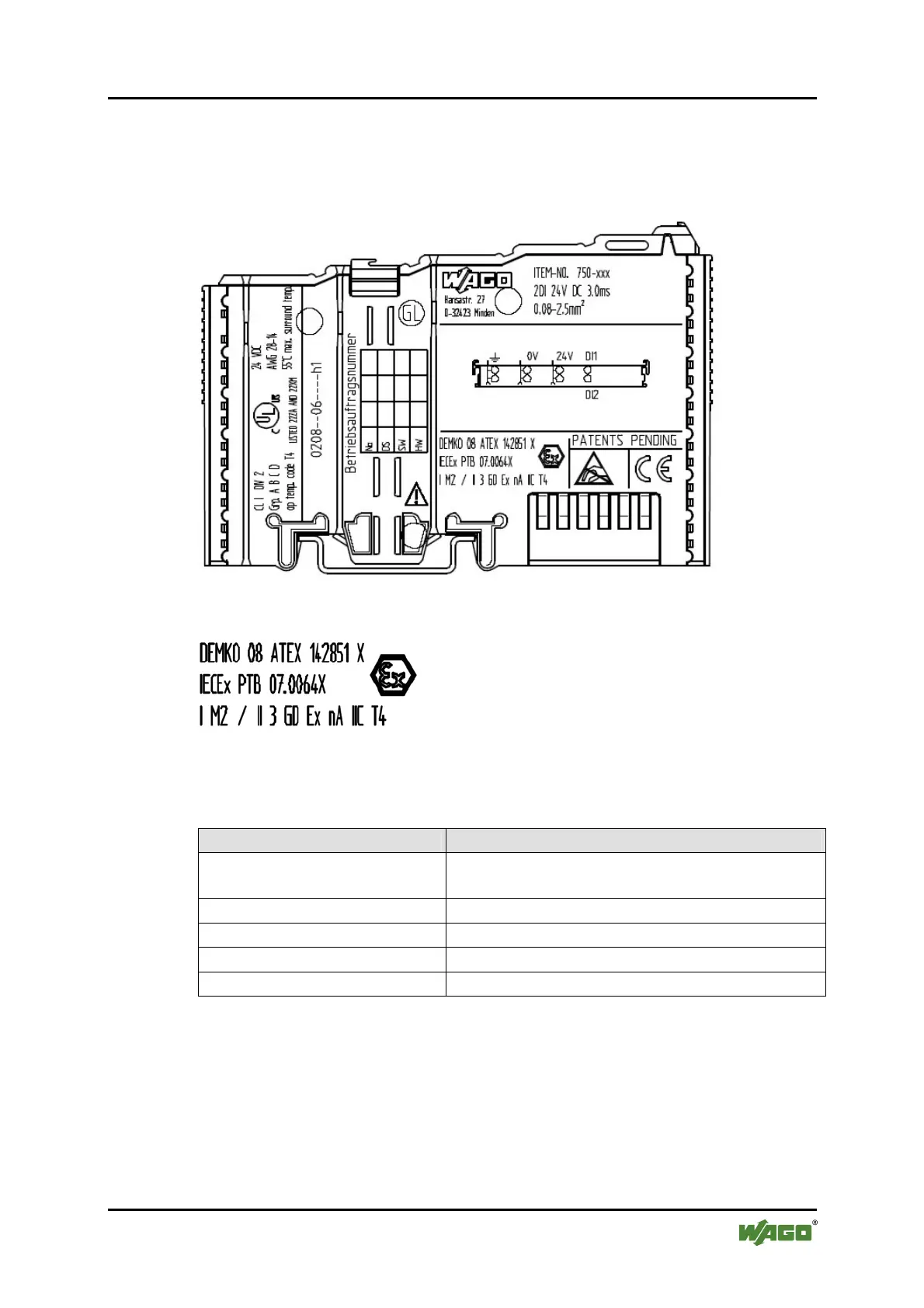

Figure 112: Side marking example for ATEX and IEC Ex approved I/O modules according to
CENELEC and IEC
Figure 113: Printing Text detail – Marking example for ATEX and IEC Ex approved I/O modules
according to CENELEC and IEC
Table 76: Description of marking example for ATEX and IEC Ex approved I/O modules according
to CENELEC and IEC
Printing on Text Description
DEMKO 08 ATEX 142851 X
IECEx PTB 07.0064X
Approval body and/or number of the examination
certificate
I M2 / II 3 GD Explosion protection group and Unit category
Ex nA Type of ignition and extended identification
IIC Explosion protection group
T4 Temperature class
