WAGO WAGO-I/O-IPC-C6 User Manual

WAGO-I/O-SYSTEM 750 PROFIBUS Master in CoDeSys 2.3 161
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
The amount of diagnostic information per channel of an I/O module (not
PROFIsafe) is 3 bytes.

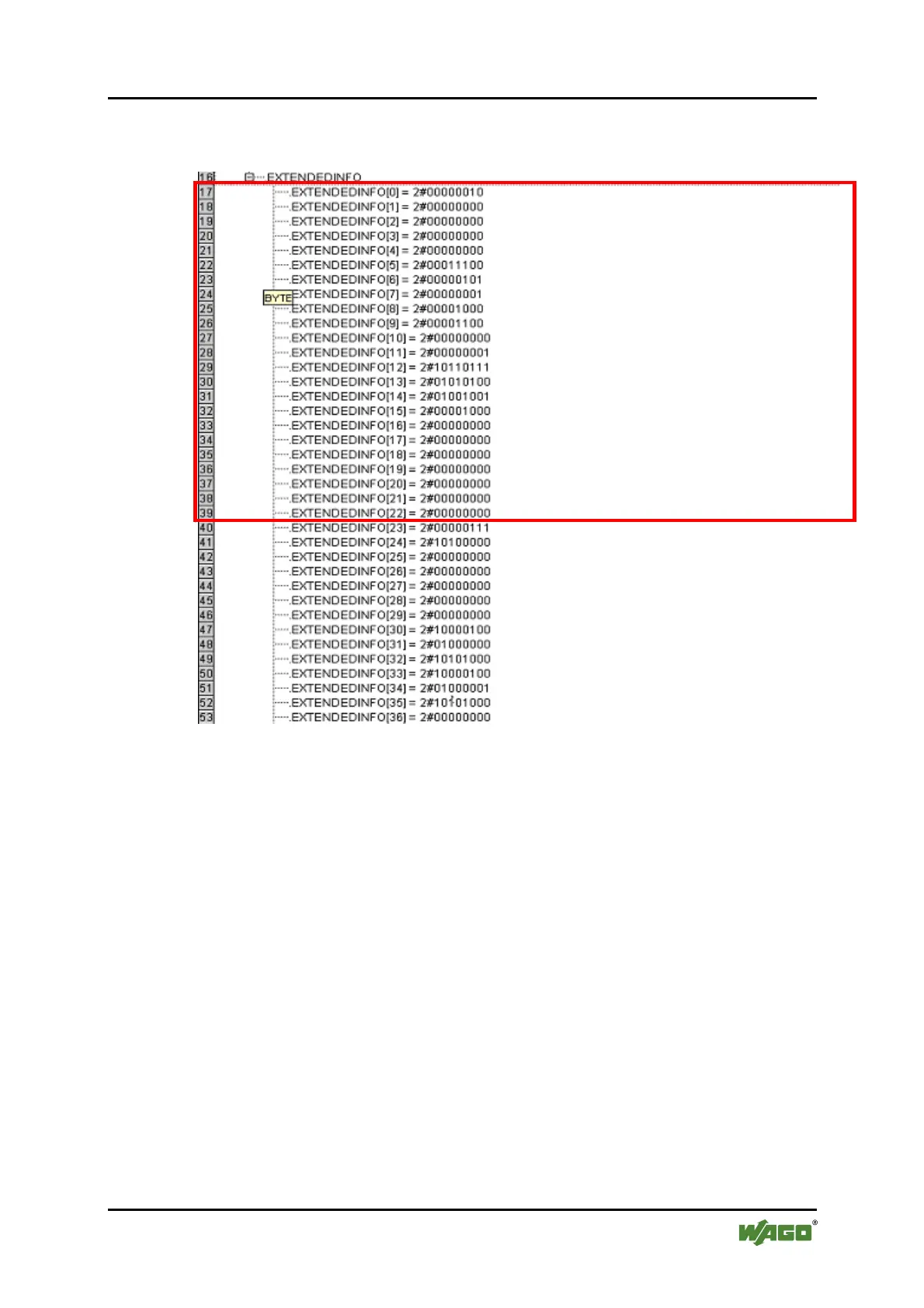

Figure 89: Online view of the array EXTENDEDINFO in the binary representation
The diagnostic information of the EXTENDEDINFO array is described on the
following page.
Area for PROFIBUS
specification diagnostics
Bereich für die Diagnose der
WAGO-Busklemmen
Area for WAGO I/O module
diagnostics
