2. Generate a start page for the visualization. Use the right mouse button to
click on the "Visualization" folder on the "Visualization" tab. Select
Add object ... from the context menu. The "New visualization" dialog box
opens.

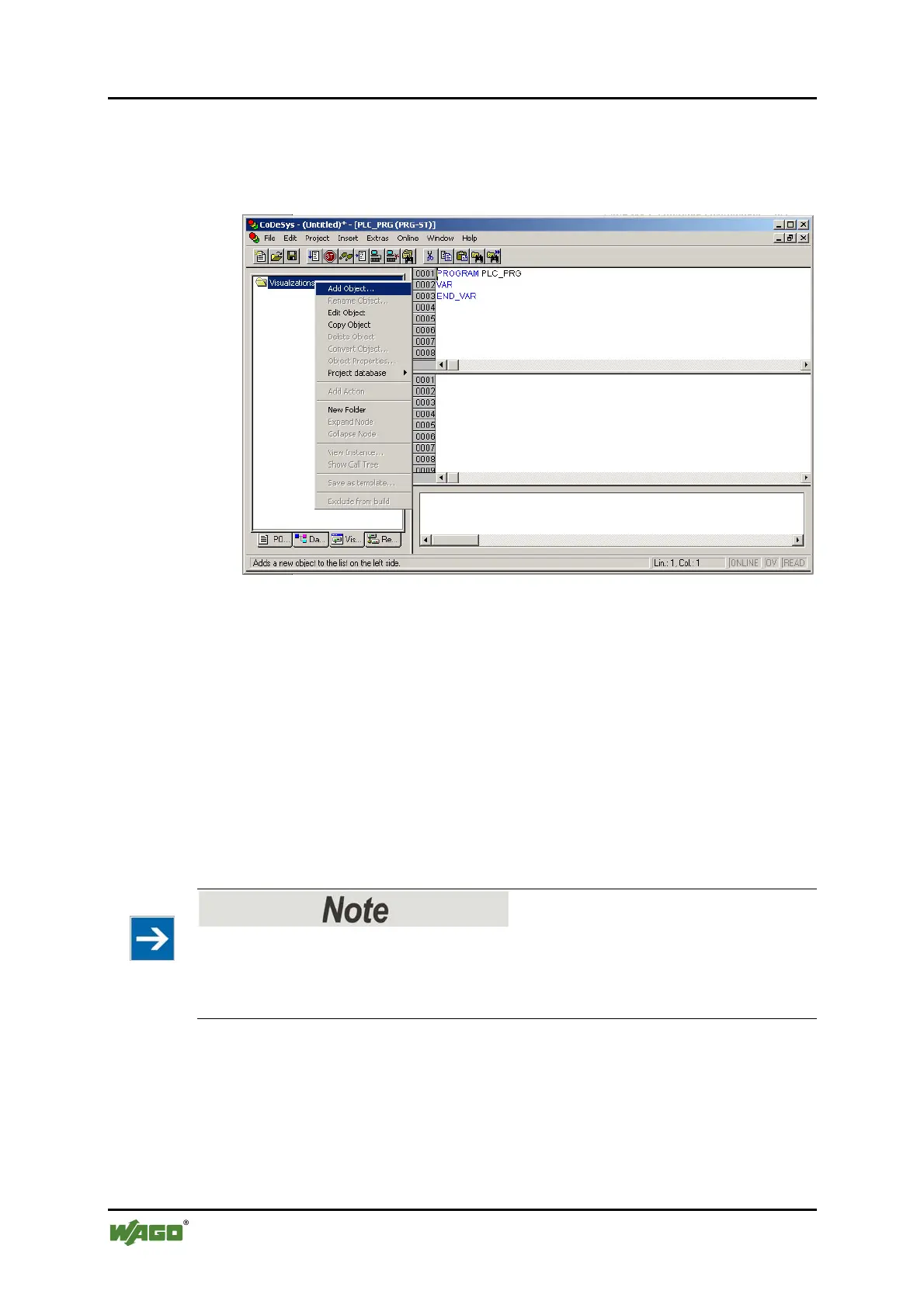

Figure 59: Generating the PLC_VISU home page
3. On the "New visualization" dialog, enter PLC_VISU as name for the start
visualization.
If another name should be used, the file "webvisu.htm" must be adapted
accordingly.
If you transfer the PLC program into the I/O-IPC (Online > Log in) and you have
started it (Online > Start), the target visualization is displayed automatically. To
display the Web visualization, enter the following URL in the address line:
http://<IP>:8080/webvisu.htm.
Furthermore, you can also display the Web visualization via the WBM. For more
information, see section "’WebVisu’ Page".
Further Informations
You can obtain additional information (FAQ) on CoDeSys Web visualization in
section “Frequently Asked Questions About CoDeSys Web Visualization” and in
the CoDeSys 2.3 online help.
