15 Diagnostics
Pos: 51.1 /Serie 758 ( Funk, IPC und PFC)/Di agnose/Diagnose LED-Signali sierung 758-87x allge mein @ 10\mod_131253460960 0_21.doc @ 76001 @ 2 @ 1
15.1 Operational Messages
All operational messages of the I/O-IPC are described in the table below. These
messages are indicated by LEDs:
Pos: 51.2 /Serie 758 ( Funk, IPC und PFC)/Di agnose/Diagnose LED-Signalisi erung 758-87x FB - Bild @ 10\ mod_1312535195873_21. doc @ 76008 @ @ 1
RST
Stop
Run
U1
IDE/PWR
IO
ERR
STA
RDY
RUN
U2
A
B
C
D
A
B
C
D

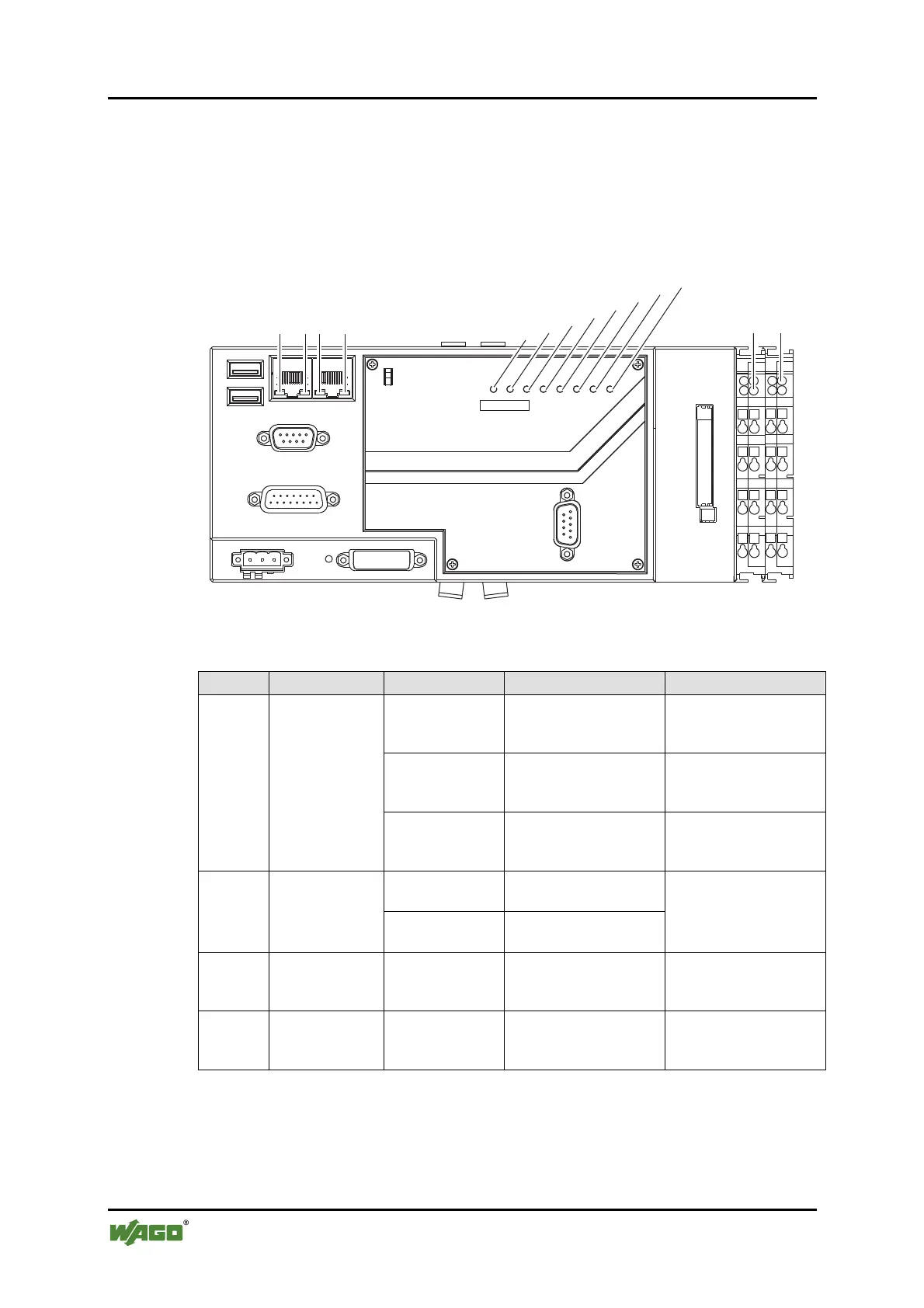

Figure 107: Identification of LEDs
Pos: 51.3 /Serie 758 ( Funk, IPC und PFC)/Di agnose/Diagnose LED-Signali sierung 758-87x Tabe lle allgemein 1 @ 10\mod_1313 038907721_21.doc @ 76398 @ @ 1
Table 71: I/O-IPC Operational Messages
Position LED Color/Status Cause Explanation/Remedy
OFF I/O-IPC has no
connection to the
ETHERNET network
Check the cables for
ETHERNET interfaces
X8/X9.
Yellow Connection to the
ETHERNET network is
available.
-
30/32 ACT/LNK
Yellow flashing Data is being
exchanged over
ETHERNET network.
-
Green Transmission speed
100 Mbit/s
31/33 Speed
OFF Transmission speed
10 Mbit/s
Transmission speed is
defined by the
ETHERNET network
participants.
35 U2 Green, red,
yellow, off,
-
LED that can be freely
programmed by the user
(using MiscLib.lib).
36 U1 Green, red,
yellow, off
-
LED that can be freely
programmed by the user
(using MiscLib.lib).
36
3
7
35
38
39
40
41
42
44
3
1
30
32
33
4
3
