WAGO WAGO-I/O-IPC-C6 User Manual

118 CoDeSys 2.3 Runtime Environment WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
3. To assign a new name to the task (e.g. PLC_Prog), click on "NewTask".
Then select the type of task. In this example, this is the "cyclic" type.

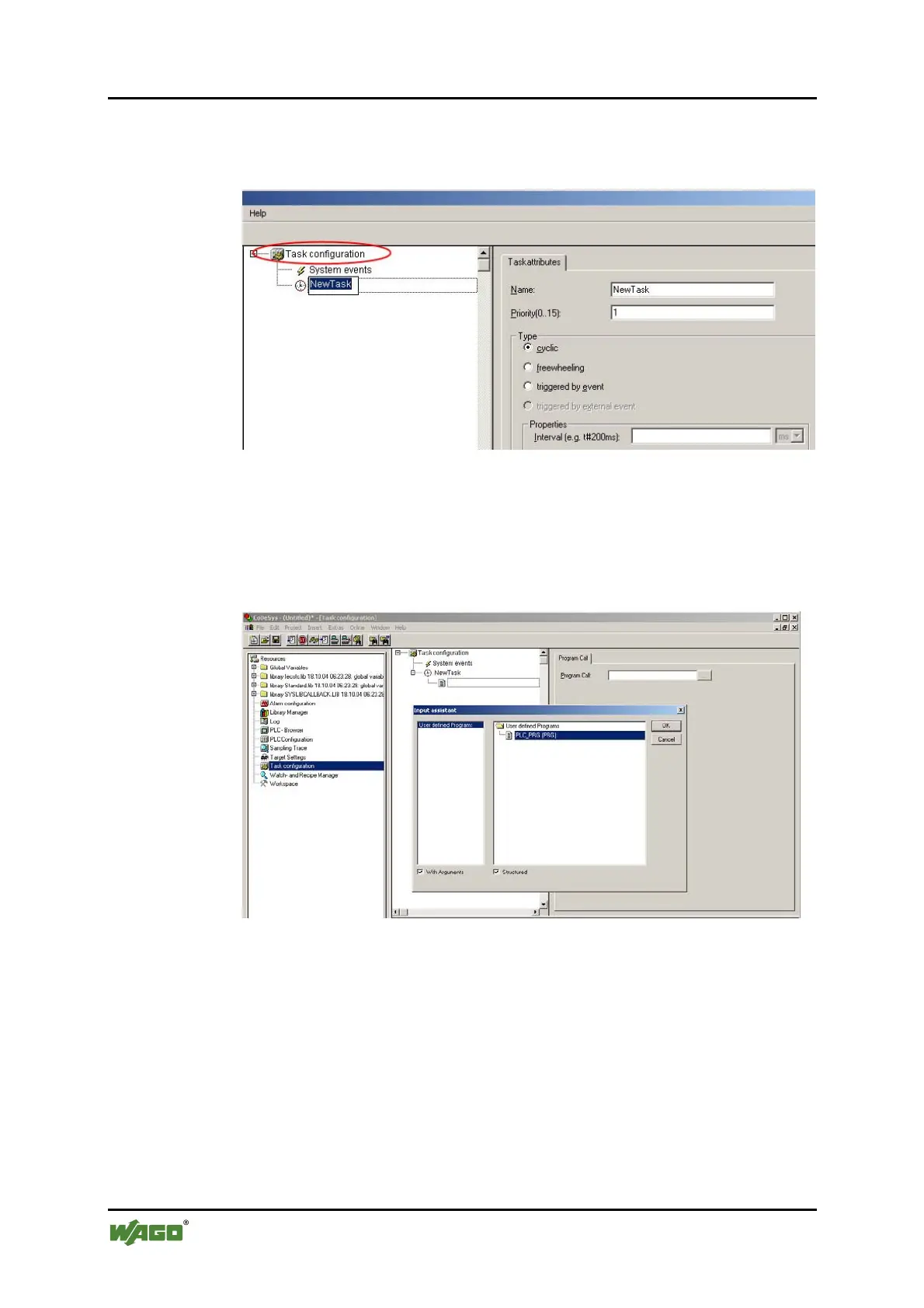

Figure 49: Changing the task name
4. Add the previously created program function block PLC_PRG (see section
"Editing a Program Function Block") by right clicking on the "hour" symbol
and selecting "Append Program Call" in the context menu. Then click on
[…] button and [OK].
Figure 50: Call to add program function block
5. Compile the example program by selecting Project > Rebuild all in the
context menu.
