12 PROFIBUS Master in CoDeSys 2.3
12.1 PROFIBUS I/O-IPC PLC Configuration
Calling up addresses or symbolic names of inputs and outputs
Addresses or symbolic names of the inputs and outputs have to be called
explicitly, because otherwise the process image is not updated. Alternatively, you
can also create an array of max. 240 bytes at the memory addresses IB%4800 or
QB%4800. This array has to be called in the PLC program.
Before an application has access to the connected PROFIBUS network, you must
configure it in CoDeSys:
1. To integrate the PROFIBUS-I/O-IPC in the PLC configuration, right click
on "PLC Configuration" and select "Append WAGO-FB-DPM".

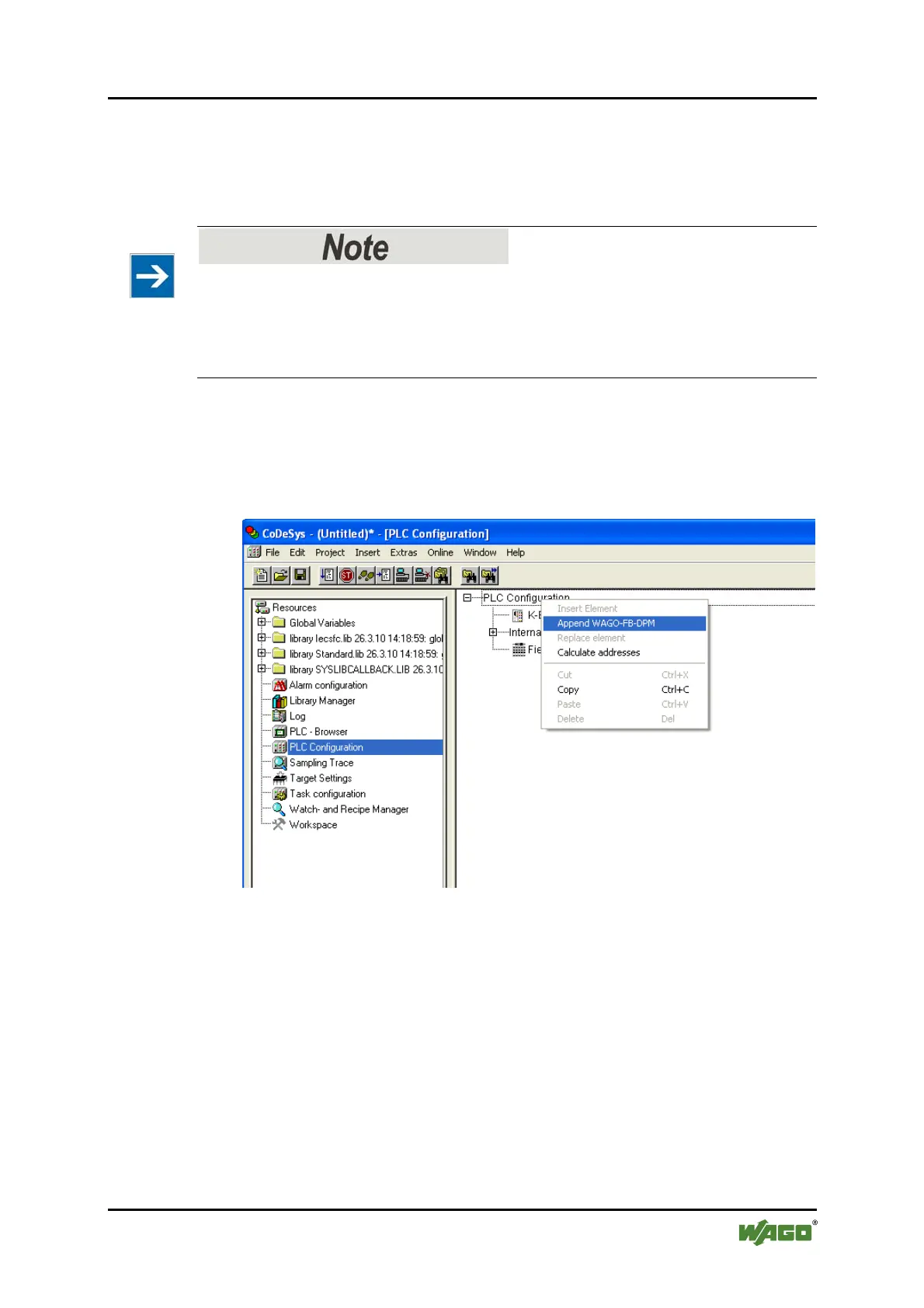

Figure 60: Adding the PROFIBUS master
