184 Operating System WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
Pos: 48.16 /Serie 758 ( Funk, IPC und PFC)/Betr iebssystem/Betriebssy stem Linux 758-87x IPC - Zugriff über Tastatur und Monitor (DVI/USB) @ 10\mod_1312533925172_21.doc @ 75988 @ 4 @ 1
14.4.1.3 Access over keyboard and monitor (DVI-I and USB Interface)
In order to access the Linux console over a monitor/touch screen connected to the
DVI-I interface and a USB keyboard, proceed as follows:
Pos: 48.17 /Serie 758 ( Funk, IPC und PFC)/Betri ebssystem/Betriebssy stem Linux 758-87x IPC mit Feldbus - Zugriff über Tastatur und Monitor, S chritt 1 @ 10\mod_1313401143 947_21.doc @ 76923 @ @ 1
1. Connect a monitor to the DVI-I interface X7 (9) of the I/O-IPC.
Pos: 48.18 /Serie 758 ( Funk, IPC und PFC)/Betr iebssystem/Betriebssy stem Linux 758-87x IPC - Zugriff über Tastatur und Monitor, Schri tt 2 @ 10\mod_1313401153354_2 1.doc @ 76926 @ @ 1
2. Connect a USB keyboard to one of the two USB interfaces
X10 (1) or X11 (2).
Pos: 48.19 /Serie 758 ( Funk, IPC und PFC)/Betr iebssystem/Betriebssy stem Linux 758-87x IPC mit Feldbus - DVI- und USB-Sc hnittstellen X7/ X10/X11 - Bild @ 10\mod_1312533 972985_21.doc @ 75991 @ @ 1
RST
Stop
Run
U1
IDE/PWR
IO
ERR
STA
RDY
RUN
U2

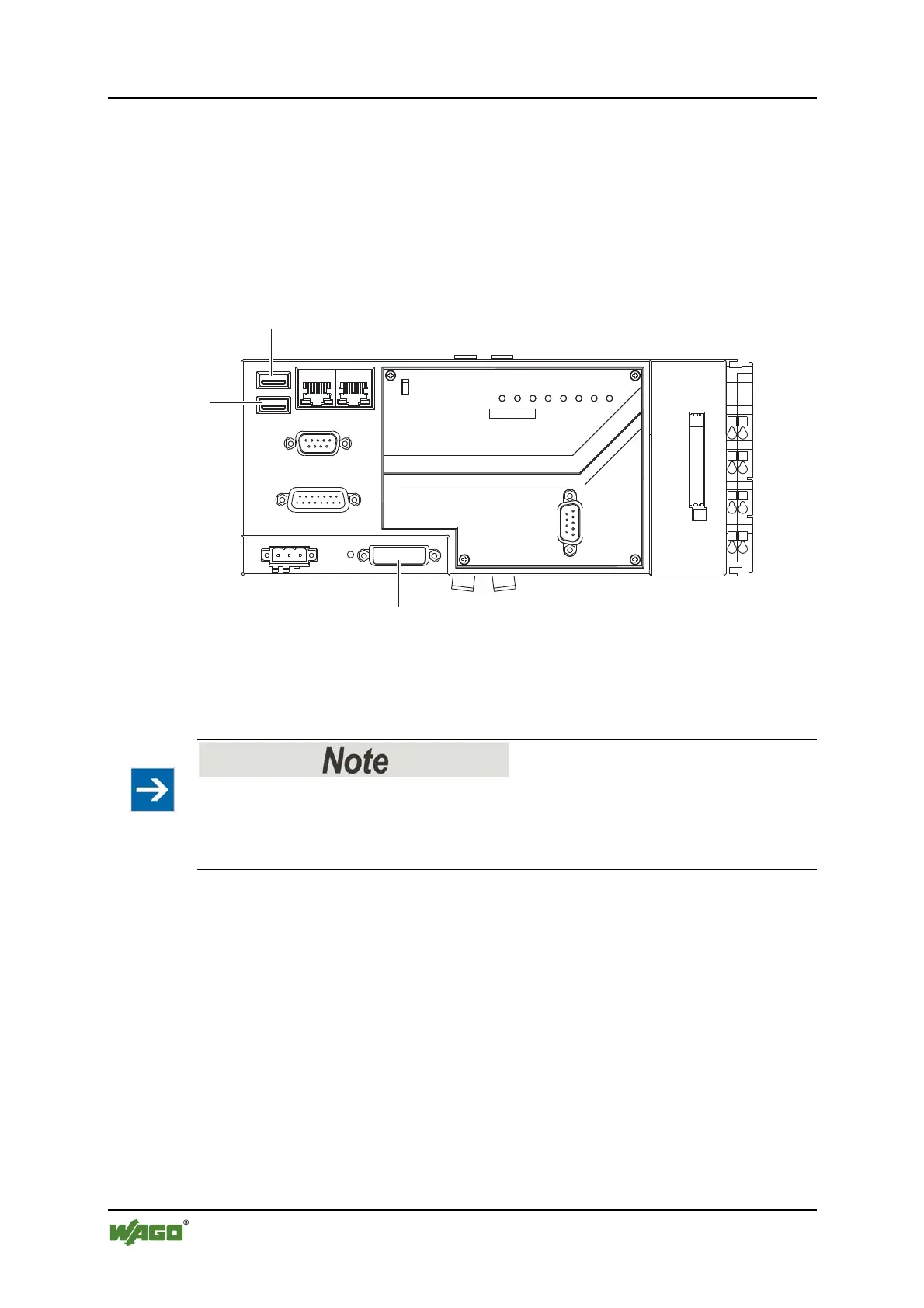

Figure 105: DVI-I interface X7 and USB interfaces X10/11
Pos: 48.20 /Serie 758 ( Funk, IPC und PFC)/Betr iebssystem/Betriebssy stem Linux 758-87x IPC - Zugriff über Tastatur und Monitor, Schri tte 3- 6 @ 10\mod_1312534069985_21. doc @ 75995 @ @ 1
3. After starting Linux, the starting image of the target visualization appears on
the monitor.
Monitor/Touch screen resolution
If only a dark screen is displayed, then the resolution of the monitor/touch screen
may not be right. Change the resolution with WBM (see section "‘HMI Settings’
Page").
4. Using [Alt] + [F2] on the connected keyboard, change over to the Linux
console.
5. Enter your user name (See section "Access to the Linux console").
6. Enter the password for your user name. The Linux console of the I/O-IPC
opens in the HOME directory (
~
) of the selected user.
You can display the Linux start messages again through cat /proc/kmsg (or
dmesg).
