WAGO-I/O-SYSTEM 750 CoDeSys 2.3 Runtime Environment 109
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
In the PLC configuration, the added I/O modules appear under "K-bus[FIX]" with
the corresponding fixed addresses.

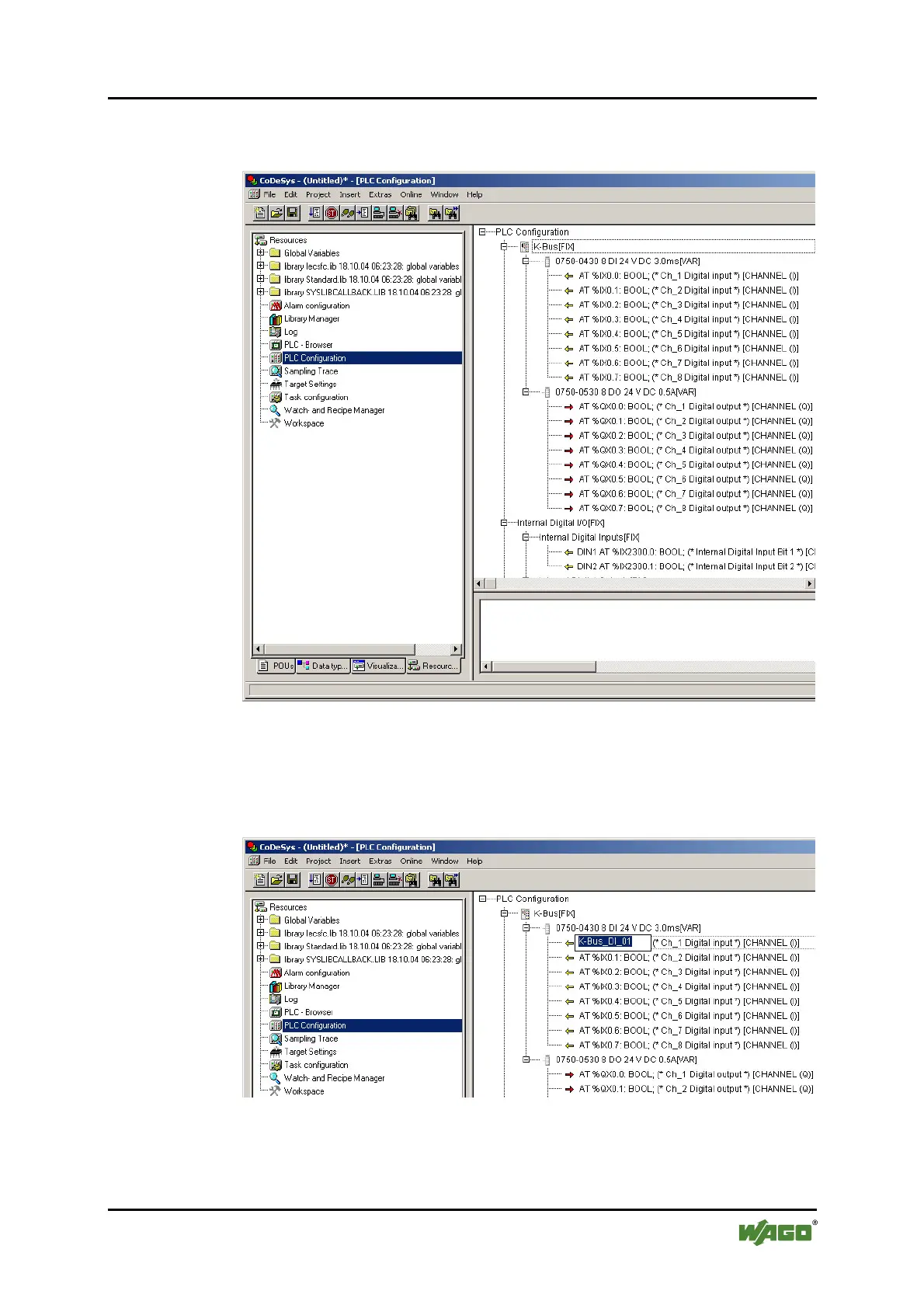

Figure 44: PLC configuration: I/O module with the associated addresses
8. You can declare a variable for each input and output
(e.g., K-Bus_DI_01 and K-Bus_Do_01). To do this, double click on the
entry "AT" beside the arrow.
Figure 45: PLC configuration with symbolic names
