WAGO WAGO-I/O-IPC-C6 User Manual

WAGO-I/O-SYSTEM 750 Device Description 21
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
Pos: 32.13 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Ansch lüsse/Anschlüsse 758- 87x DPM und CANopen - Bild @ 10\mod_1 312355079086_21.doc @ 75616 @ 2 @ 1
4.1 Overview of Physical Interfaces
RST
Stop
Run
U1
IDE/PWR
IO
ERR
STA
RDY
RUN
U2
A
B
C
D
A
B
C
D

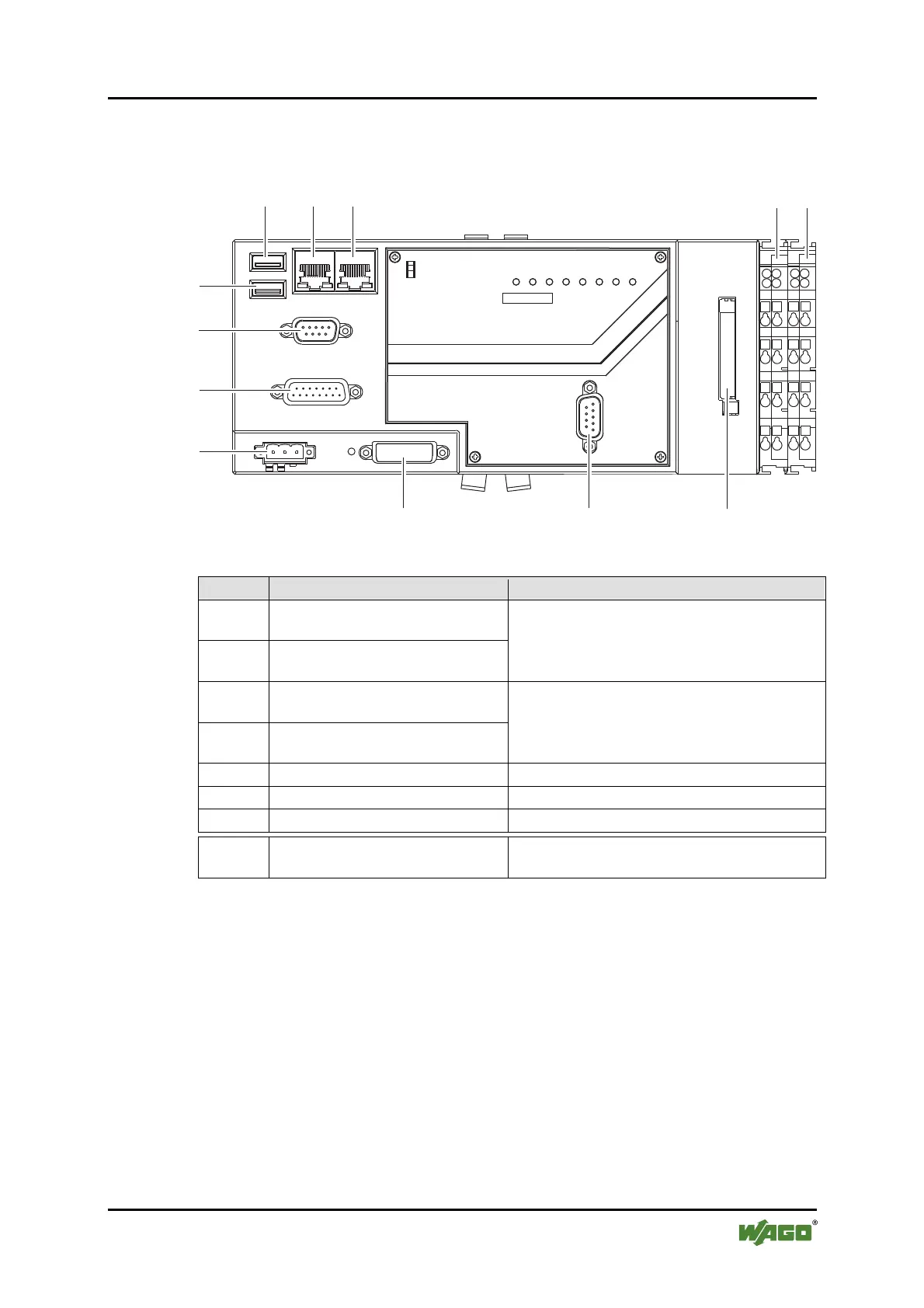

Figure 1: Overview of interfaces
Pos: 32.14 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Ansch lüsse/Anschlüsse 758- 87x allgemein -Tabel le 1 @ 10\mod_13123556353 68_21.doc @ 75620 @ @ 1
Position Description Function
1
USB interface (X10),
Type A
2
USB interface (X11),
Type A
To connect USB devices such as, keyboards,
USB memories, etc.
3
Ethernet interface (X8),
RJ-45
4
Ethernet interface (X9),
RJ-45
Interfaces to connect the I/O-IPC to a
ETHERNET Network.
5 I/O module interface Data exchange over the internal data bus
6 750-602 Power Supply Module Infeed of the field supply (sensors/actuators).
7 Slot for CF card Slot for CF cards, type I and II.
Pos: 32.15 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Ansch lüsse/Anschlüsse 758- 87x DPM - Tabelle 2 @ 10\mod_131 2355752746_21.doc @ 75628 @ @ 1
8
PROFIBUS interface (X3),
9-pole D-sub socket
Interface to connect the I/O-IPC to a PROFIBUS
network.
Pos: 32.16 /Dokumenta tion allgemein/Glied erungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
11
12
1
2
3
5
4
9
10
8
6
7
