44 Installing and Removing the I/O-IPC WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
6.2 Accessories Required for Installation
To install the I/O-IPC, you will need
• perforated or non-perforated mounting rails according to EN 60715 and
• a 750-600 End Module.
6.3 Acceptable Mounting Directions for the I/O-IPC
The I/O-IPC can be mounted either horizontally or vertically on a mounting rail.
For vertical installation, appropriate measures shall be taken, such as using a
safeguard to prevent sliding down (B) so that the I/O-IPC does not fall down due
to vibrations and shock loads.
Heat dissipation
In order to achieve good heat dissipation for the I/O-IPC, we recommend
installing the device in mounting direction A 1 (Figure 10) on a mounting rail that
has a heat dissipating connection to the fastening site.
Pos: 36.5 /Serie 758 ( Funk, IPC und PFC)/Montieren/ Montage 758-87x FB - Bild 1 @ 10\ mod_1312436672542_21. doc @ 75833 @ @ 1

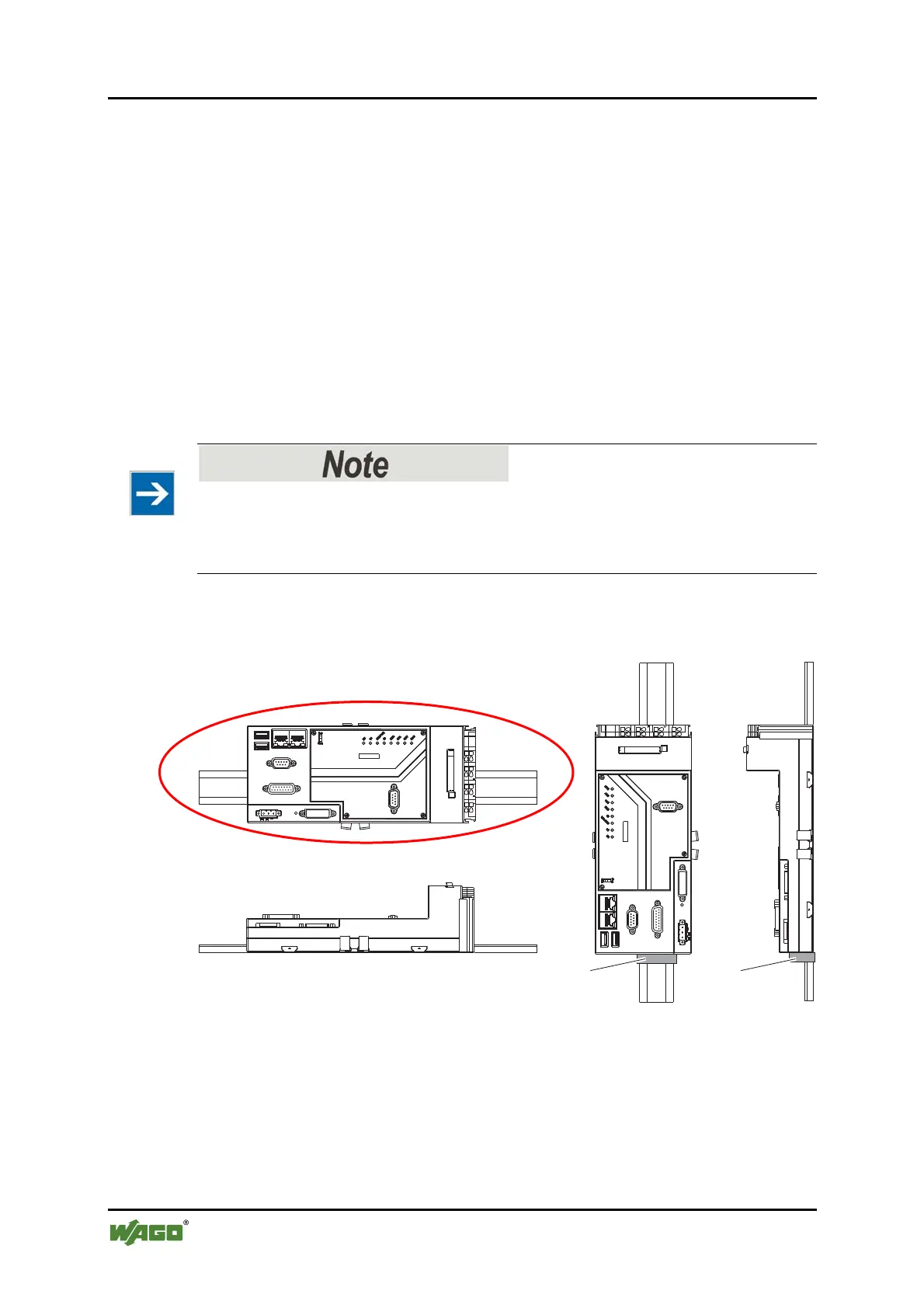

Figure 13: Mounting directions for the I/O-IPC; recommended mounting direction (A 1)
Pos: 36.6 /Dokumentatio n allgemein/Glieder ungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
Horizontal Vertical
B
B
A 2
A 1
