WAGO WAGO-I/O-IPC-C6 User Manual

140 PROFIBUS Master in CoDeSys 2.3 WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
DP Parameters

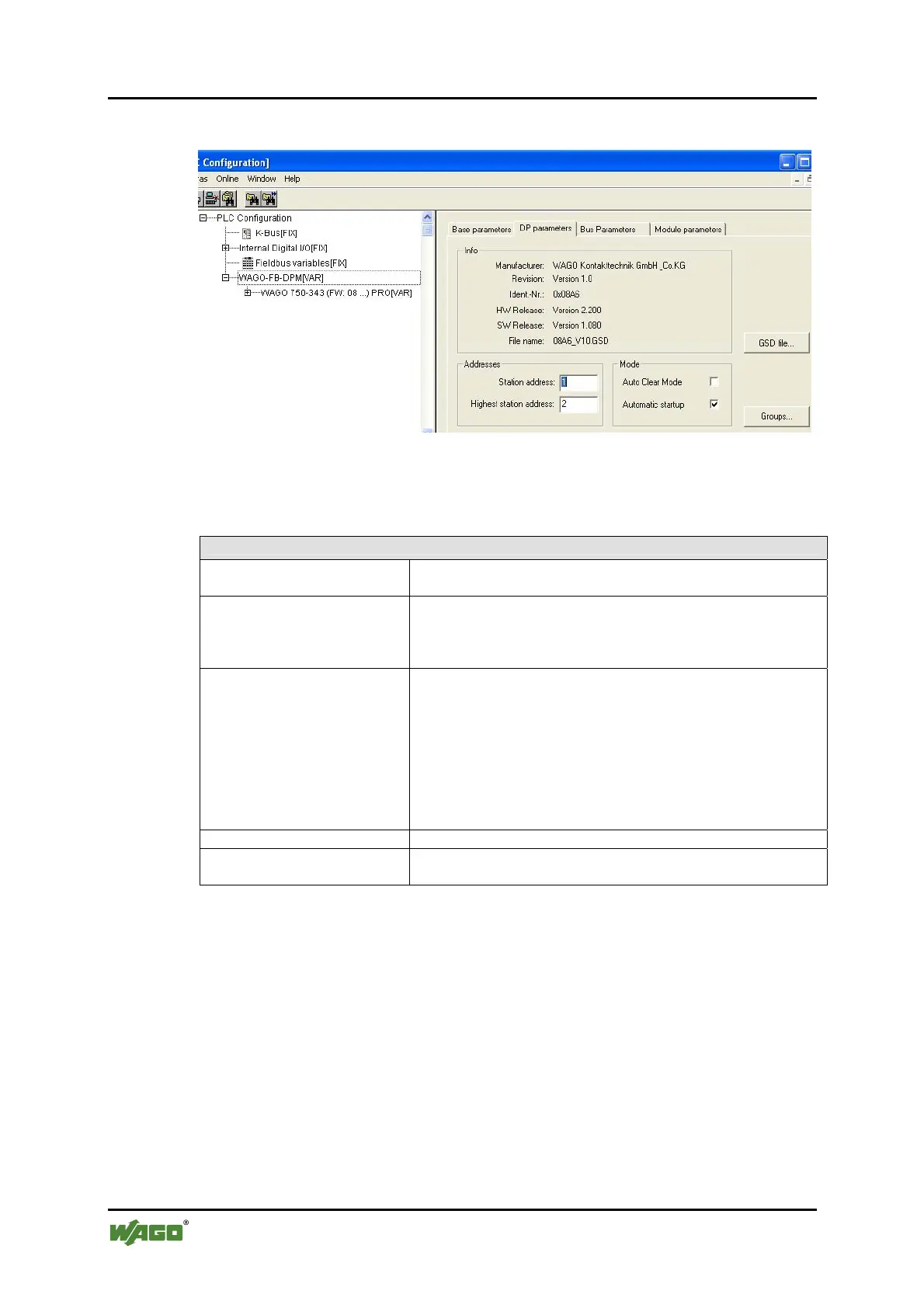

Figure 65: "DP Parameters" tab
The following table explains the parameters listed in the register:
Table 59: Description of the Parameters
DP Parameters
Info General information on the PROFIBUS master from the GSD
file.
Addresses
Station address
Highest station address
Address of the I/O-IPC in a PROFIBUS network.
Highest station address in the PROFIBUS network. This value is
automatically set.
Mode
Auto Clear Mode
Automatic startup
When errors are detected on the fieldbus, the I/O-IPC initiates
the OPERATE state and switches the outputs to the
"FAILSAFE" state. Connected slaves that support the DPV-1
protocol are also put in this state.
When errors are detected on the bus, the master goes into the
Clear state and sends data telegrams of zero length to the slaves.
A reset is required to exit this state.
GSD file … Here, you obtain information on the GSD file
Groups … Here, you indicate whether the "Sync Mode" and/or the "Freeze
Mode" are to be used for a group.
