To connect the supply cable for the I/O-IPC electronic supply and for feeding in
the field supply for the connected I/O modules, sensors and actuators through the
power supply module, proceed as follows:
1. Disconnect from the power supply those parts of the system on which you
have mounted the I/O-IPC.
Pos: 38.6 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungska bel/Anschluss Da ten- und Versorgungskab el 758-87x 1.2 @ 10\mod_1313 409081015_21.doc @ 76978 @ @ 1
2. Connect the electronic supply cable to the I/O-IPC by connecting power
supply cable socket to the I/O-IPC X4 plug (10). Provide this supply with a
1.6 A fuse.
Pos: 38.7 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungska bel/Anschluss Da ten- und Versorgungskab el 758-87x allgemein 1.3 @ 10\mod_131340909254 7_21.doc @ 76981 @ @ 1
3. Then, secure the socket using the screws supplied for this purpose.
Pos: 38.8 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungska bel/Anschluss Da ten- und Versorgungskab el 758-87x 1.4 @ 10\mod_1315 215278706_21.doc @ 78139 @ @ 1
4. To feed in the field supply, connect the 750-602 Supply Module (5)
according to the illustration, with 24 V to "+" and 0 V to "-". Provide this
supply with a 10 A fuse.
Pos: 38.9 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungska bel/Anschluss Da ten- und Versorgungskab el 758-87x - Bild 1 mit Feldbus @ 10\ mod_1312441922481_21. doc @ 75867 @ @ 1
Electronic power supply Field power supply
24 V
0 V
GND
V_IN
+-
1,6 A
5
24 V
0 V
+-
10 A
10
+
+
+
+
+

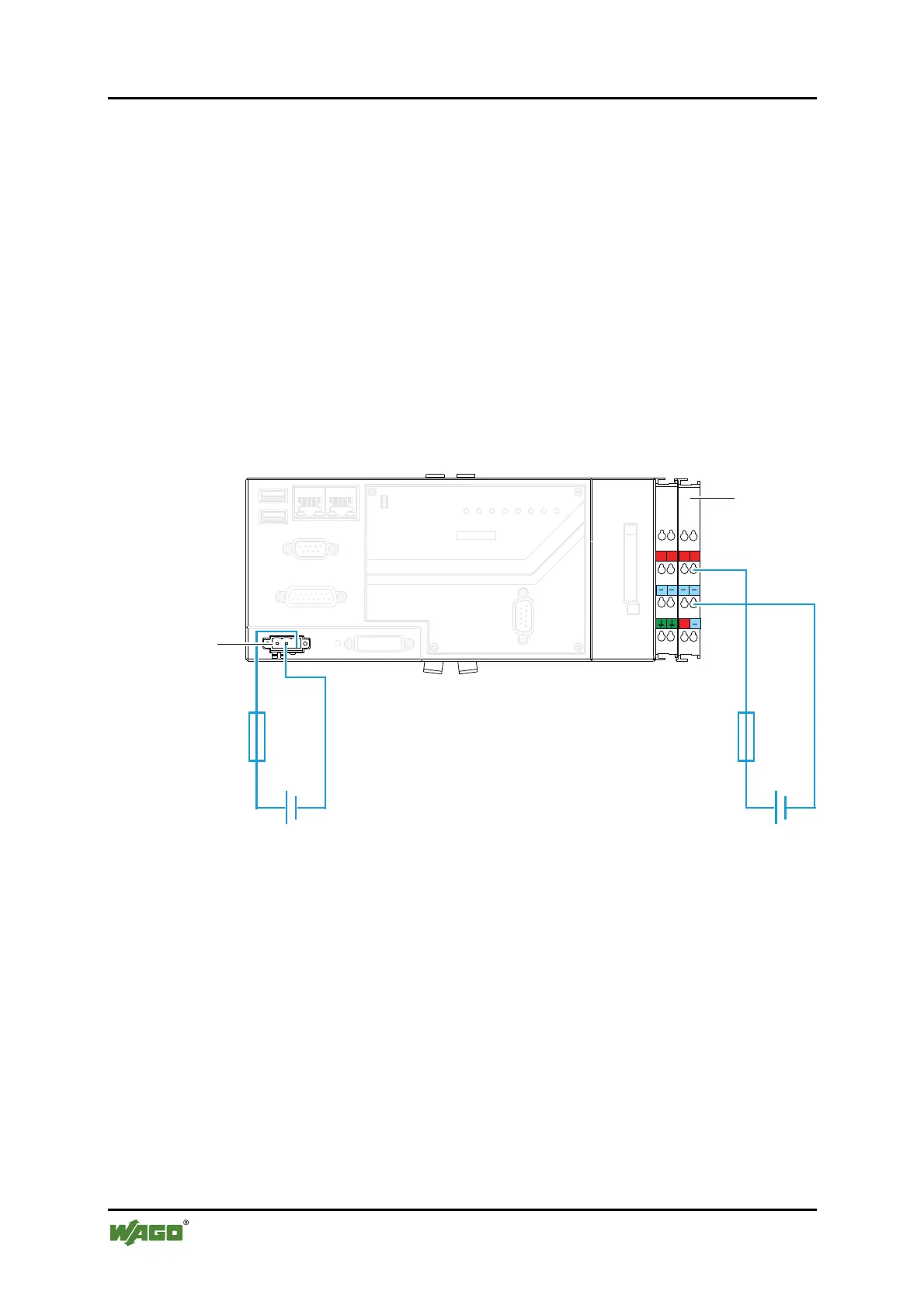

Figure 19: Power Supply via 750-602 up to HW 10 (with fieldbus)
