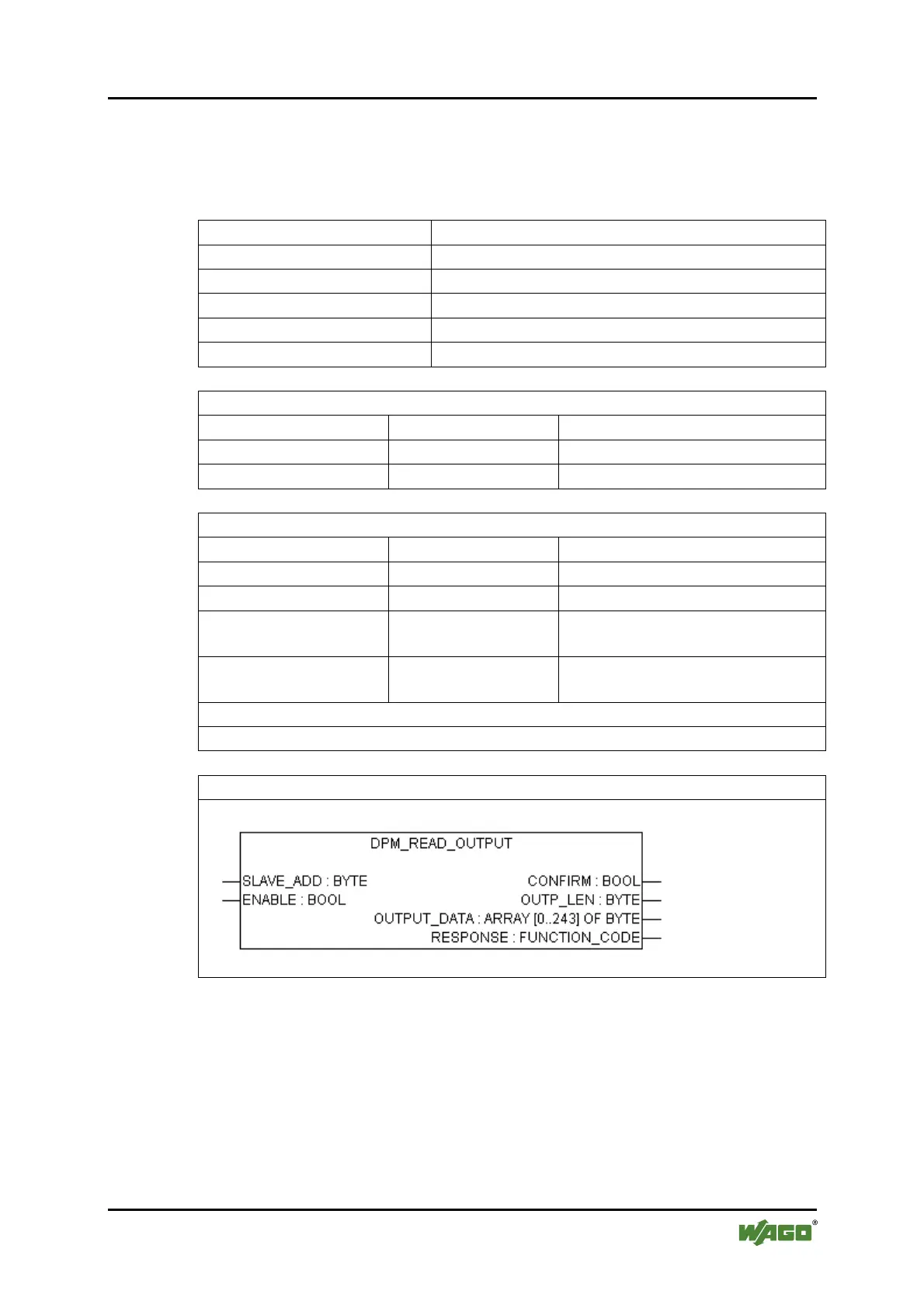

19.3.5 W DPM_READ_OUTPUT
The DPM_READ_OUTPUT function block reads the output process data of a
slave.
Category
PROFIBUS DP/V1 function blocks
Name
DPM_READ_OUTPUT
Type
Function block
Name of library
WAGO_DPM_01.lib
Required libraries
Applicable to
758-87x-111
Input parameter
Name Data Type Description
SLAVE_ADD BYTE PROFIBUS slave address
ENABLE BOOL Function start
Output parameters
Name Data Type Description
CONFIRM BOOL Execution confirmation
OUTP_LEN BYTE Data length
OUTPUT_DATA ARRAY [0..243] OF
BYTE
Output data of the slave
RESPONSE FUNCTION_CODE See section Data Type
"FUNCTION_CODE".
Variable declaration
Graphical illustration
