42 Description of I/O-IPC Interfaces WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
The following table provides information on the DVI-I interface pin assignments:

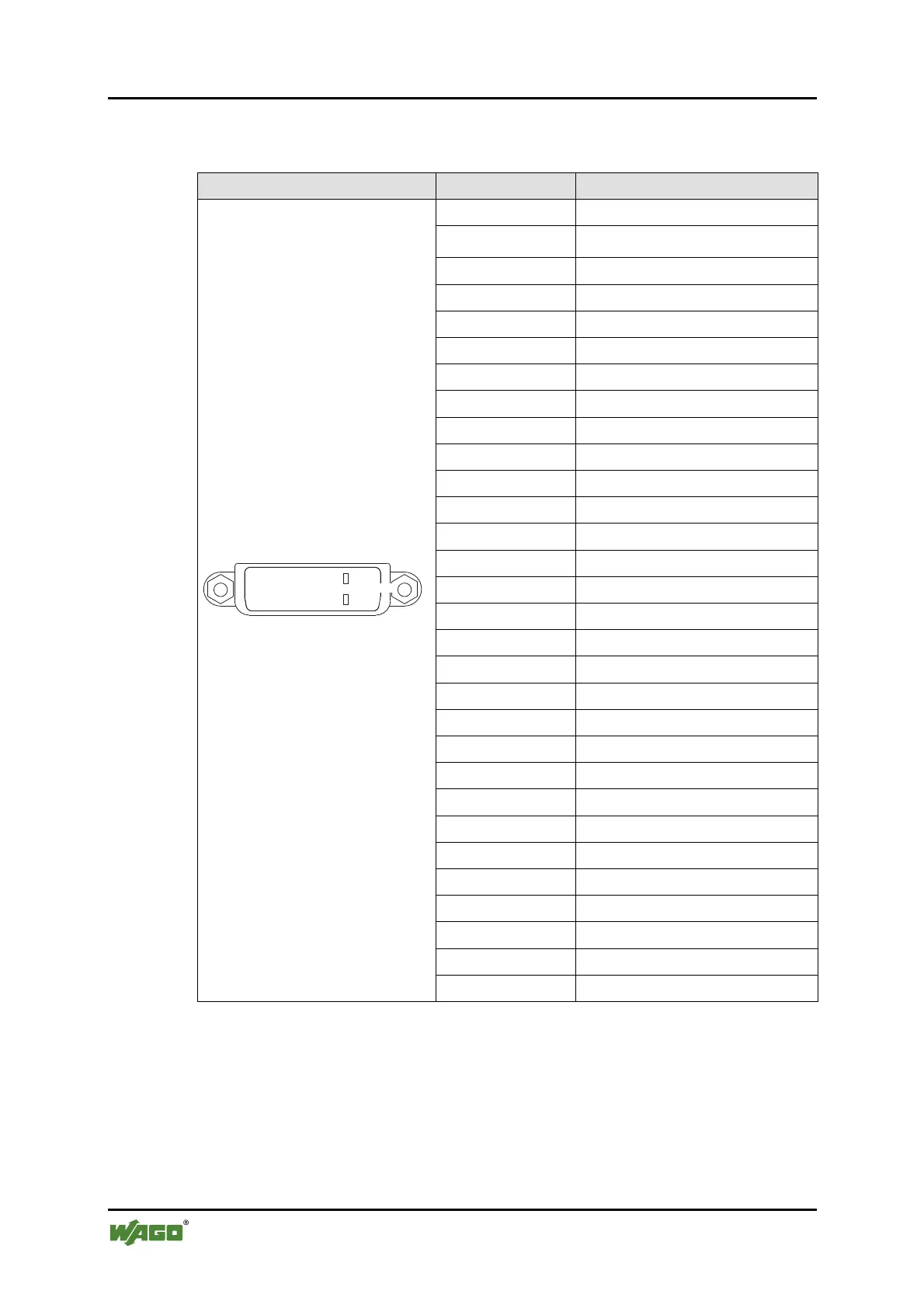

Table 18: DVI-I Interface: Pin Assignments
Connector Pin Description
1 TXD2-
2
TXD2+
3 GND
4 Not assigned
5 Not assigned
6 DDCCLK
7 DDCDATA
8 CRT_VSY
C1 CRT_R
C4 CRT_HSY
9 TXD1-
10 TXD1+
11 GND
12 Not assigned
13 Not assigned
14 VCC_DVI
15 GND
16 Not assigned
C2 CRT_G
C5 GND
17 TXD0-
18 TXD0+
19 GND
20 Not assigned
21 Not assigned
22 GND
23 TXCP
24 TXCN
C3 CRT_B
1
C3
C4
…
17
9
16
8
C2
C1
24
+
……
…
C5
Figure 12: DVI-I Interfave
C5A GND
