4.5 Labeling

Pos: 32.35 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Bedruc kung/Bedruckung 758- 87x allgemein ohne Exi @ 10\ mod_1314792404986_21. doc @ 77933 @ @ 1

There is a label on the side of the I/O-IPC with the following information:

• A: Name of the I/O-IPC

• B: Item number of the I/O-IPC

• C: Serial number of the device

• D: Hardware status at the time of delivery

• E: Firmware status at the time of delivery

• F, G: MAC addresses for X8 and X9 ETHERNET interfaces.

The MAC addresses are used to identify and address ETHERNET devices.

Each MAC address is unique worldwide.

• H: Licenses for the I/O-IPC

• I: Manufacturer

Pos: 32.36 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Bedruc kung/Bedruckung 758- 87x Zusatz Exi @ 10\mod_1314 792468471_21.doc @ 77936 @ @ 1

• J: ATEX-/IECEx marking with Ex logo

Pos: 32.37 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Bedruc kung/Bedruckung 758- 87x - Bild @ 10\mod_13123681111 06_21.doc @ 75750 @ @ 1

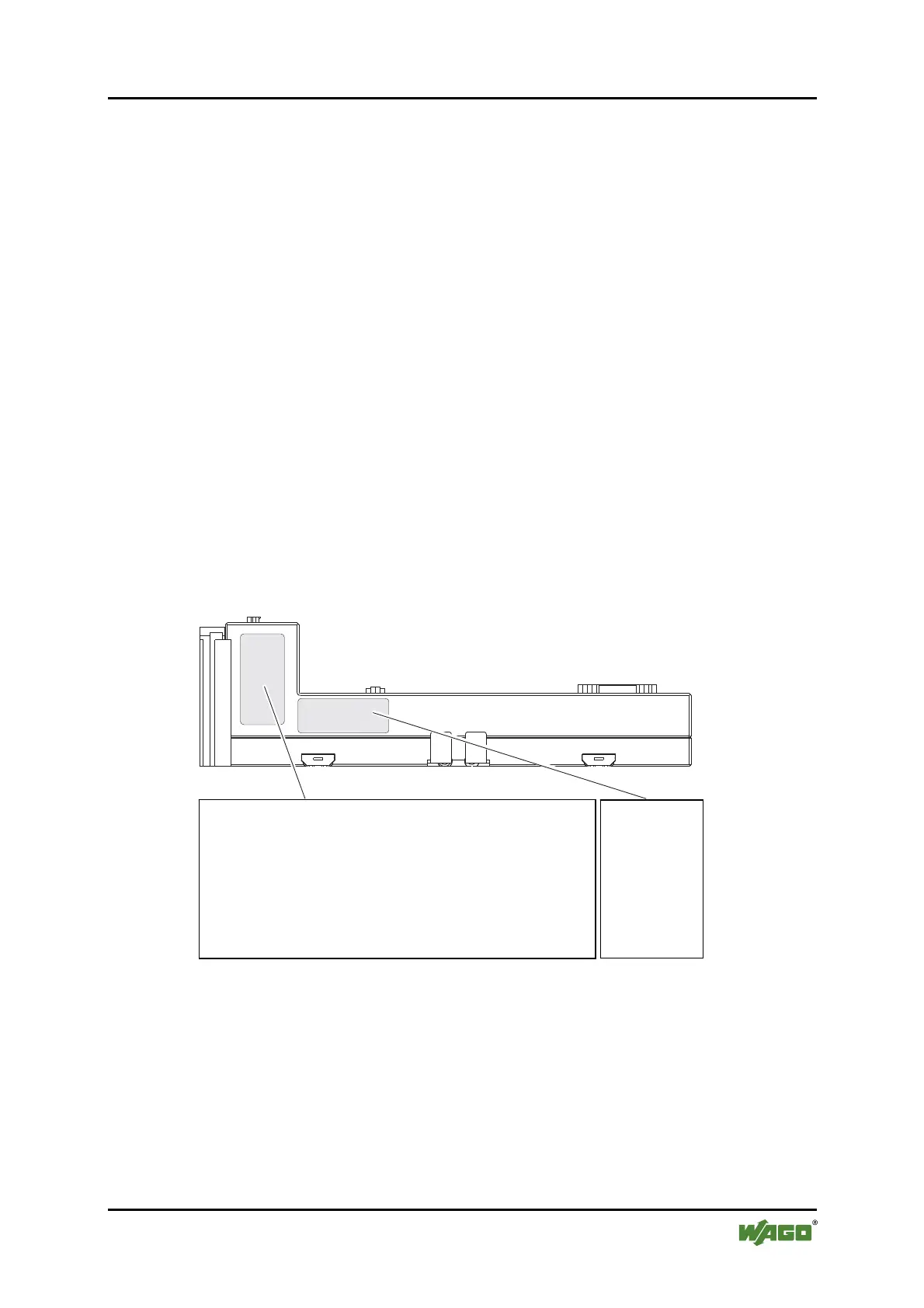

Figure 5: Lateral marking on the I/O-IPC

Pos: 32.38 /Dokumenta tion allgemein/Glied erungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1

A I/O-IPC-xxx B 758-xxx/xxx-xxx

C SN: xxxxxxxxx

D HW xx Rev. yy E FW x.x.x

F MAC ID X8: xxxxxx xxxxxx

G MAC ID X9: xxxxxx xxxxxx H

I xxxxxxxxxxxxxxx
