6.4 Securing the I/O-IPC to a Mounting Rail
Pos: 36.8 /Serie 758 ( Funk, IPC und PFC)/Montieren/ Montage 758-87x Ein leitung @ 10\mod_131495510 6193_21.doc @ 78070 @ @ 1
For installing the I/O-IPC on a mounting rail, there are four clamp levers on the
underside that secure the I/O-IPC to the mounting rail.
Pos: 36.9 /Serie 758 ( Funk, IPC und PFC)/Montieren/ Montage 758-87x Hin weis @ 10\mod_131495511527 1_21.doc @ 78073 @ @ 1
Fastening the mounting rail
If you use mounting rails with a height of 7.5 mm, then use flat riveting or sunken
screws to fasten the mounting rail. Otherwise, the I/O-IPC and the connected I/O
modules cannot be mounted correctly on the mounting rail.
Pos: 36.10 /Serie 758 ( Funk, IPC und PFC)/Montieren/ Montage 758-87x Ein leitung_Handlung allg emein @ 10\mod_1314955122 693_21.doc @ 78076 @ @ 1
Proceed as described below for mounting:
1. Disconnect from the power supply those parts of the system on which you
wish to mount the I/O-IPC.
Pos: 36.11 /Serie 758 ( Funk, IPC und PFC)/Montieren/ Montage 758-87x Hand lung @ 10\mod_13149551290 68_21.doc @ 78079 @ @ 1
2. To set the I/O-IPC on the mounting rail (25), press the four release levers
(20) together at the same time until they stop. Press the I/O-IPC onto the
mounting rail and then let the release levers go.
3. Check that the I/O-IPC is securely placed on the mounting rail. All four
wedges (23) must be locked behind the edge of the mounting rail.
4. If a side is not locked, press the corresponding release levers together, press
the unlocked side onto the mounting rail and then let go of the release levers
again.
Pos: 36.12 /Serie 758 ( Funk, IPC und PFC)/Montieren/ Montage 758-87x FB - Bild 2 @ 10\ mod_1312438374310_21. doc @ 75840 @ @ 1

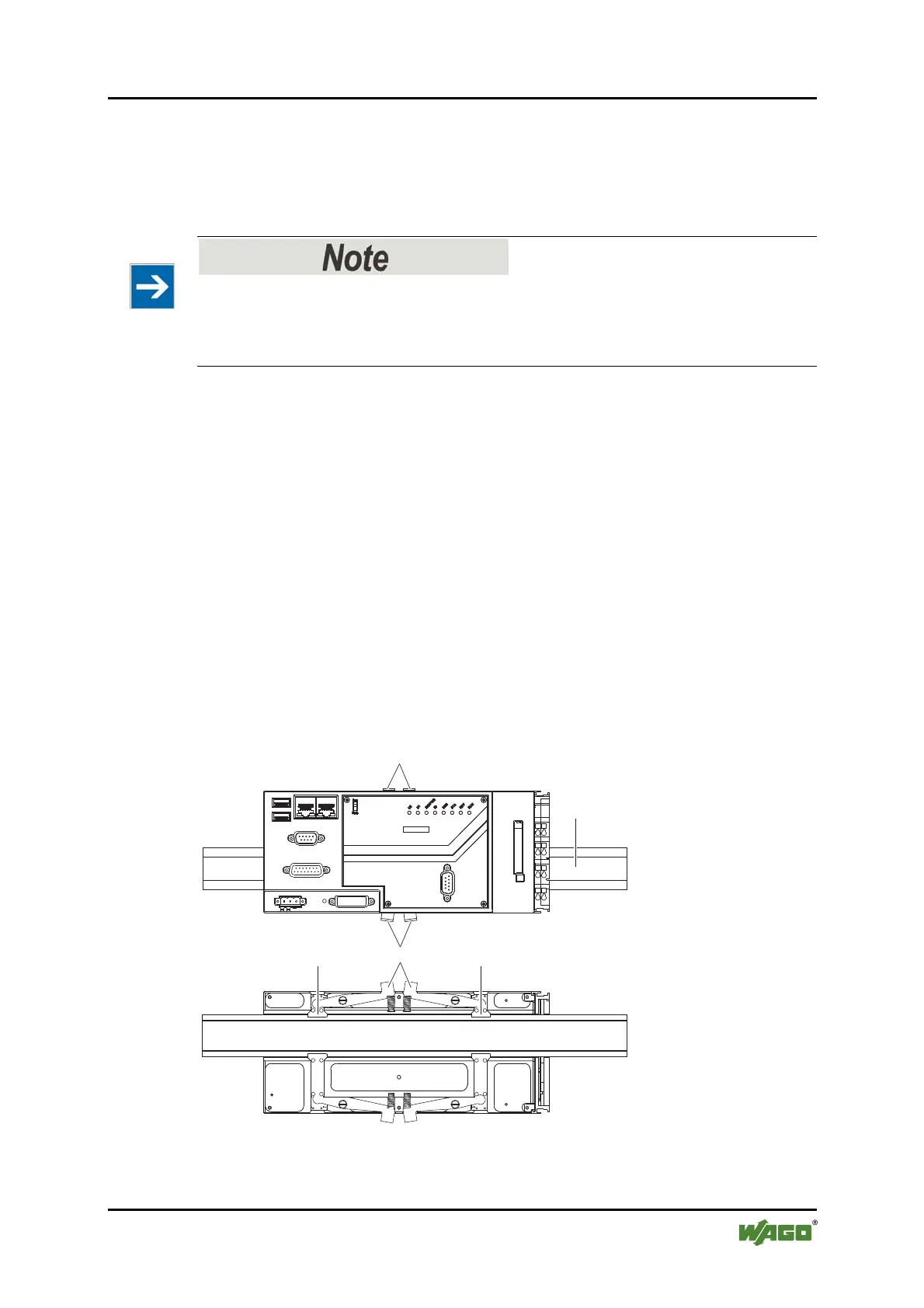

Figure 14: Securing of the I/O-IPC to a mounting rail
Pos: 36.13 /Dokumenta tion allgemein/Glied erungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
25
20 23
23
20
