Digital Outputs
Highest current carrying capacity of the output channels is 0.1A!
Always observe the maximum current carrying capacity of 0.1A for the digital
output channels. An increase in the current leads to overheating of the output
driver and damage to the I/O-IPC.
The two digital outputs are independent of the internal data bus. This means that
digital signals are processed even if the internal data bus breaks down.
External power supply, max. 24 V DC
Voltage range Depends on external circuit
Max. current per channel 0.1 A (typical)
Channels 2
Characteristics Optocoupler 2 kV

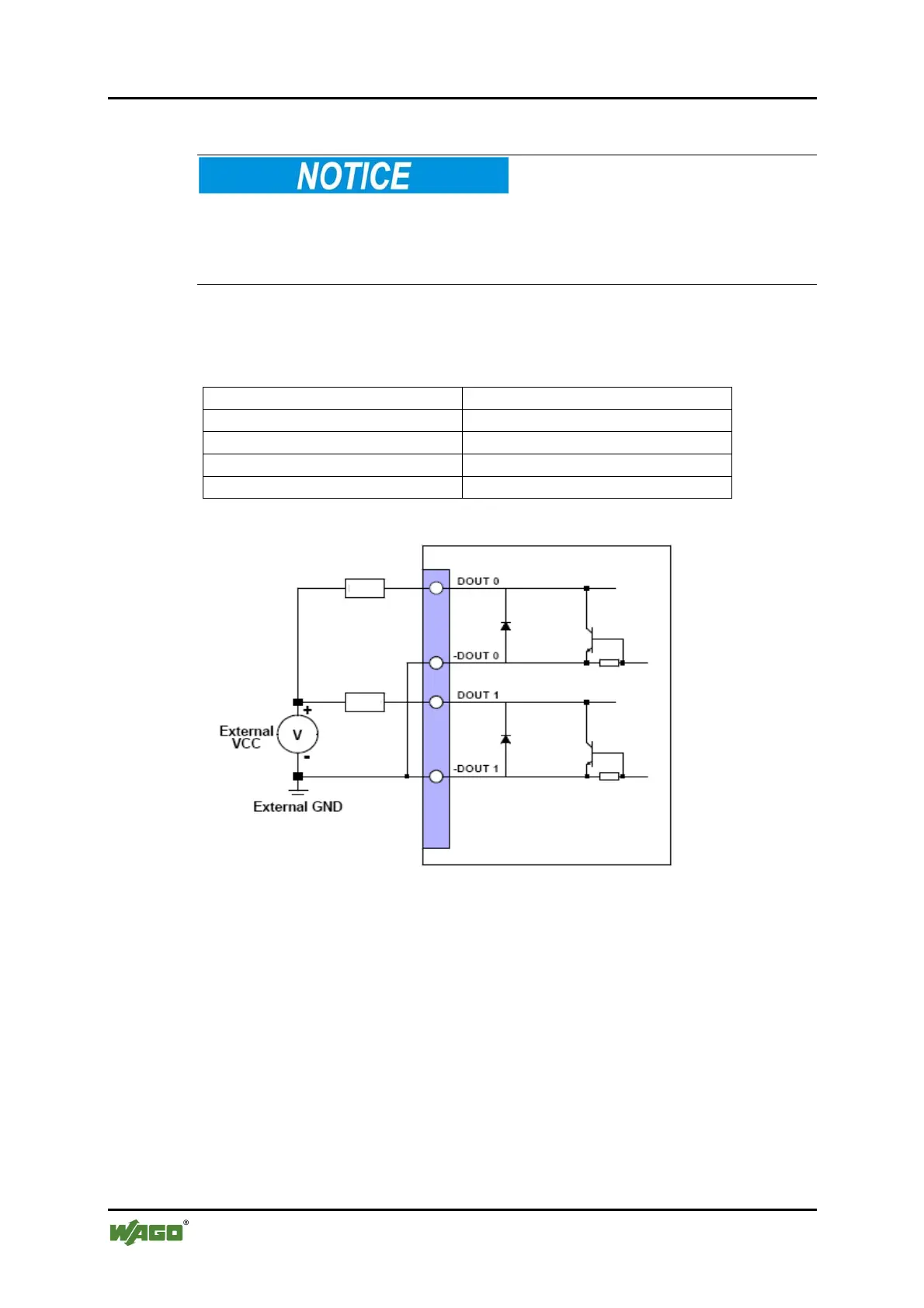

Figure 9: Connection of integrated outputs
R
R
12
4
11
3
I/O-IPC
