WAGO-I/O-SYSTEM 750 PROFIBUS Master in CoDeSys 2.3 151
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
4. Enter the assignment := behind the variable name.
5. Repeat step 3 for the variable "PB_Input_Bit".

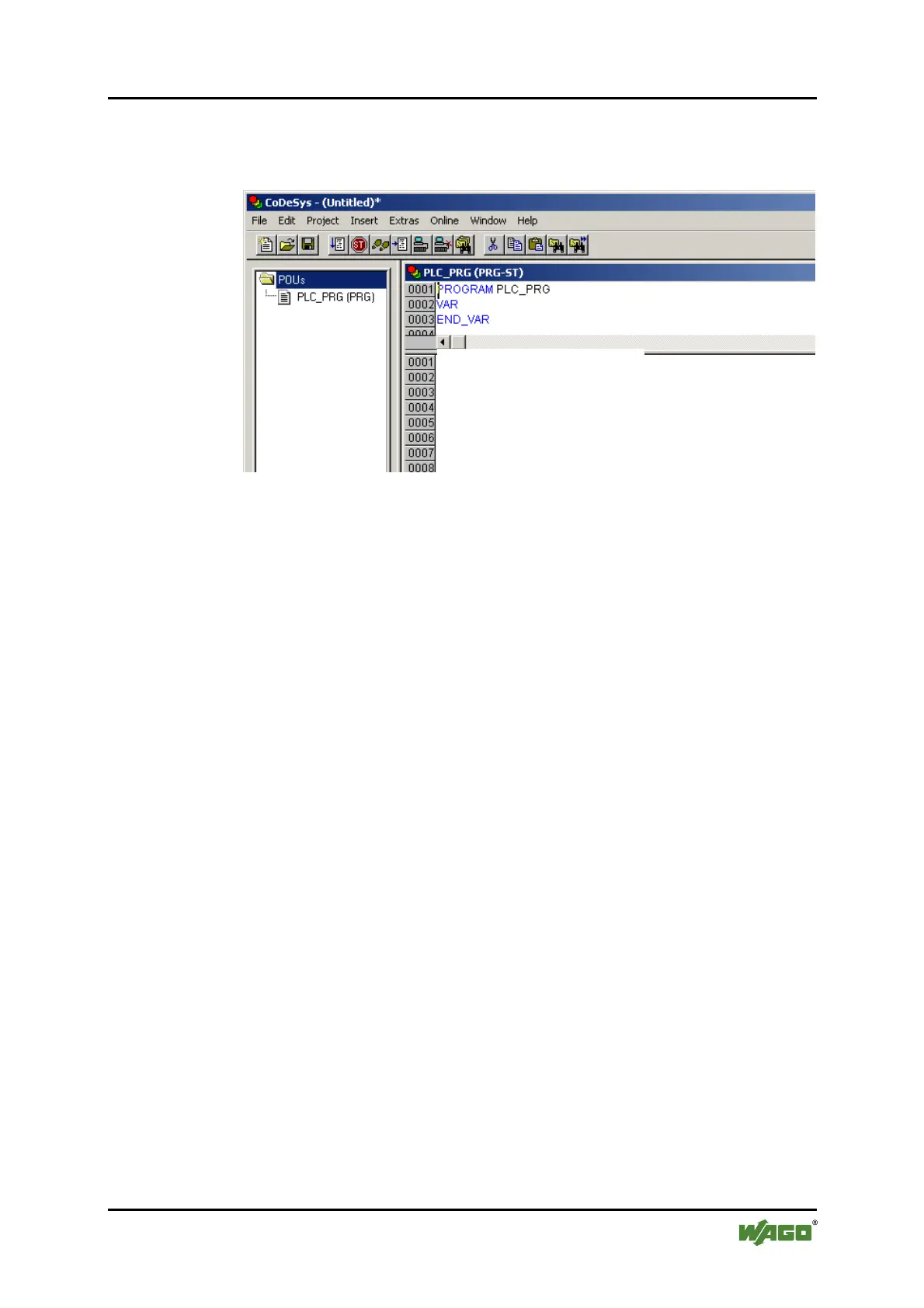

Figure 77: Example of an assignment of the previously created variables
6. To compile, click on Project in the menu bar and select Rebuild all.
12.4 Loading the Program in the I/O-IPC
Transfer the program to the I/O-IPC by clicking Online in the menu bar and
selecting Log in. The PROFIBUS starts automatically during the downloading of
the PLC configuration into the I/O-IPC. For more information, see section
“Loading and Executing the PLC Program in Control (ETHERNET)”.
Pos: 46.11 /Dokumenta tion allgemein/Glied erungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
PB_Output_Bit:=PB_Input_Bit;
