WAGO-I/O-SYSTEM 750 Device Description 23
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
Pos: 32.19 /Alle Seri en (Allgemeine Module)/ Überschriften für alle Serien/Gerätebeschr eibung/Anzeigeel emente - Überschrif t 2 @ 4\mod_1240984390875_21. doc @ 31964 @ 2 @ 1
4.2 Display Elements
Pos: 32.20 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Anzeigee lemente/Anzeigee lemente 758-87x Feldbus - Bild @ 10\mod_1312360318466_ 21.doc @ 75653 @ @ 1
RST
Stop
Run
U1
IDE/PWR
IO
ERR
STA
RDY
RUN
U2
A
B
C
D
A
B
C
D

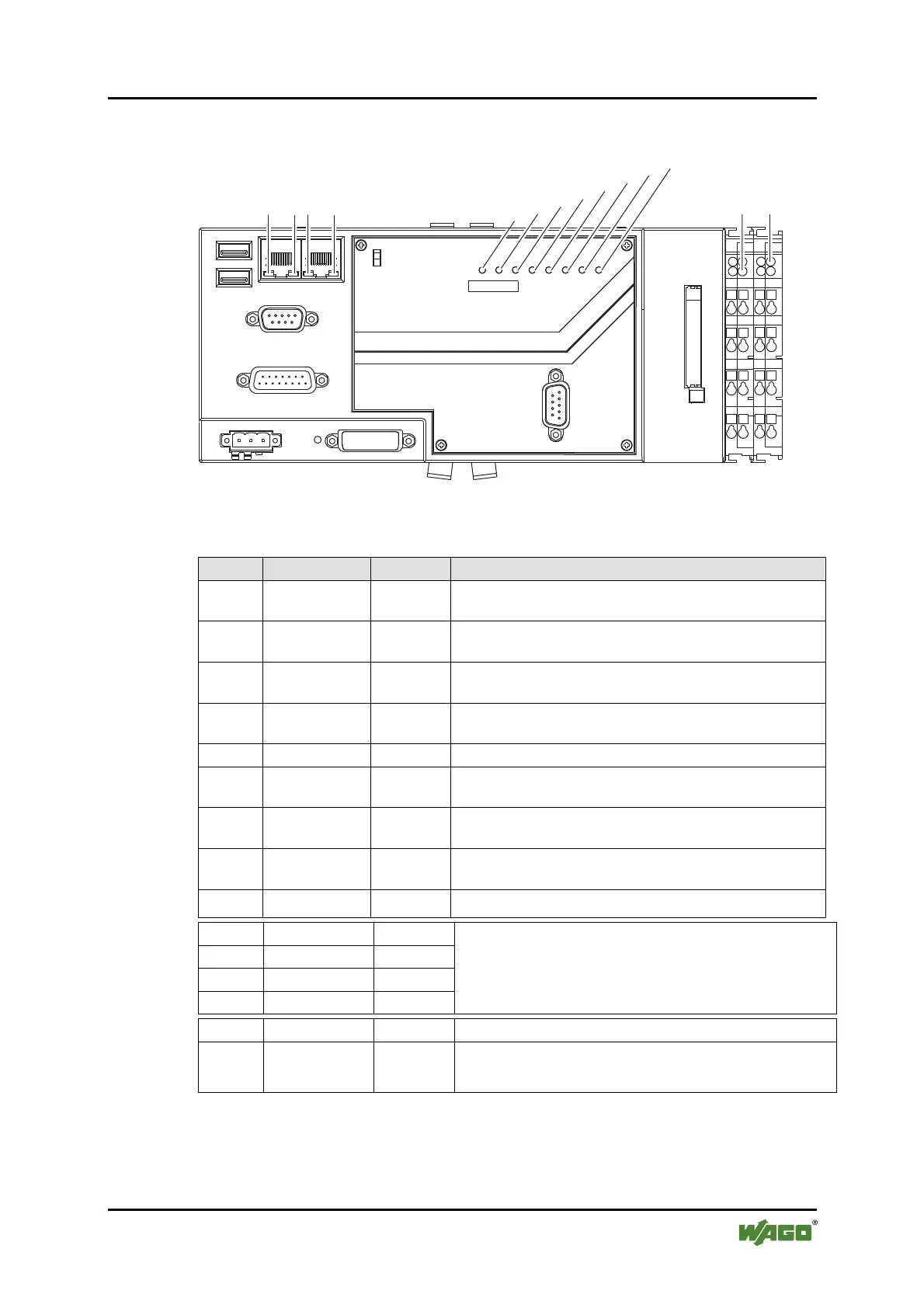

Figure 2: LEDs
Pos: 32.21 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Anzeigee lemente/Anzeigee lemente 758-87x allge mein - Tabelle 1 @ 10\mod_131236 1580359_21.doc @ 75657 @ @ 1
Position LED Color Description
30 ACT/LNK yellow/off
Status of the X8 ETHERNET interface network
connection X8.
31 Speed green/off
Status of the X8 ETHERNET interface transmission
speed X8.
32 ACT/LNK yellow/off
Status of the X8 ETHERNET interface network
connection X9.
33 Speed green/off
Status of the X8 ETHERNET interface transmission
speed. X9.
- - - -
35 U2
green/red/
yellow/off
LED that can be freely programmed by the user.
(two LEDs).
36 U1
green/red/
yellow/off
LED that can be freely programmed by the user.
(two LEDs).
37 IDE/PWR green/red
Power supply status of both internal flash memory and
CF card.
38 IO green/red Display of malfunction messages by a blink code.
Pos: 32.22 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Anzeigee lemente/Anzeigee lemente 758-87x Feldbus - Tabelle 2 @ 10\mod_1312542794 607_21.doc @ 76080 @ @ 1
39 ERR red
40 STA yellow
41 RDY yellow
42 RUN green
Fieldbus Status
Pos: 32.23 /Serie 758 ( Funk, IPC und PFC)/Geräteb eschreibung/Anzeigee lemente/Anzeigee lemente 758-87x allge mein - Tabelle 3 @ 10\mod_131254 2801560_21.doc @ 76083 @ @ 1
43 LED D off The I/O module interface LED is not used.
44 LED C green/off
24V supply voltage available via 750-602 Power Supply
Module.
Detailed information regarding the LEDs can be found starting in Section "LED
Signaling".
Pos: 32.24 /Dokumenta tion allgemein/Glied erungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
31
32
36
37
35
33
38
39
40
41
42
4
44
