90 Configuration WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
9.3 Configuration with Touch screen/Monitor and USB
Keyboard
Preparation:
You have connected a monitor to the DVI-I interface and a keyboard to the USB
interface of the I/O-IPC. For more information, see section „Access over
keyboard and monitor (DVI- and USB interface)“.
Using the key combination [Alt] + [F3], open the third console of the I/O-IPC on
which the IPC configuration tool is located. You cannot quit this Linux console.
Therefore, "QUIT" on the navigation bar has no function.

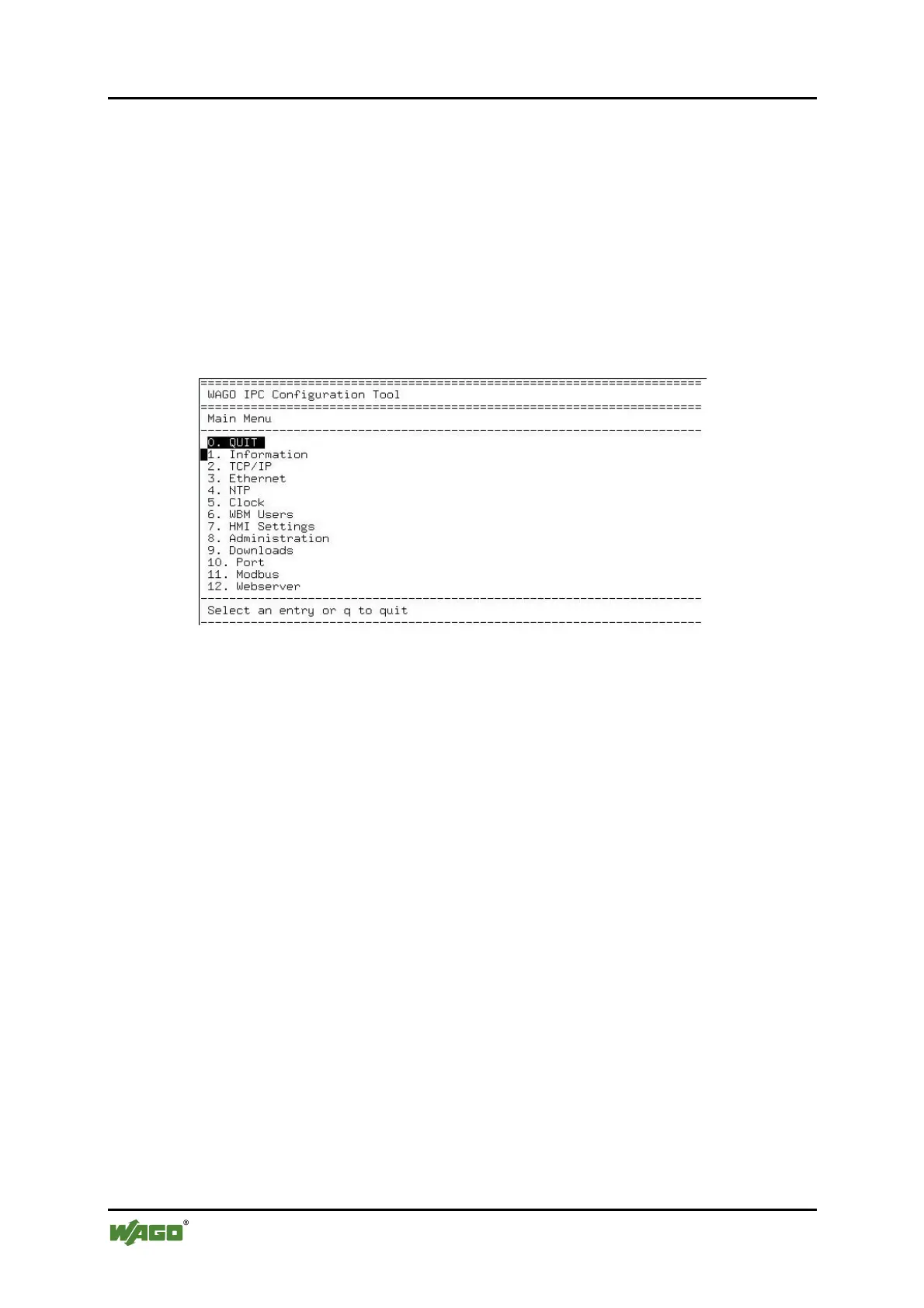

Figure 34: Start screen of the WAGO IPC configuration tool
Pos: 45 /Dokumentati on allgemein/Glieder ungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ @ 1
