7.3 Power supply via 750-602 Supply Module
Scope of Delivery
The 750-602 Supply Module is no longer included in the scope of delivery as of
HW Version 11.
Length of the power supply cable
With this type of power supply, the length of the power supply cable shall not
exceed 3 meters from the voltage source to the I/O-IPC X4 connection. If a longer
cable is necessary, power shall only be supplied as described in section “Power
Supply via 750-626 Supply Module”
Ensure the correct conductor cross-section!
Use conductor cross-sections from 0.08 mm² to 2.5 mm² (28 - 14 AWG) only for
the X4 connection and for the CAGE CLAMP
®
connections of the power supply
module.
++

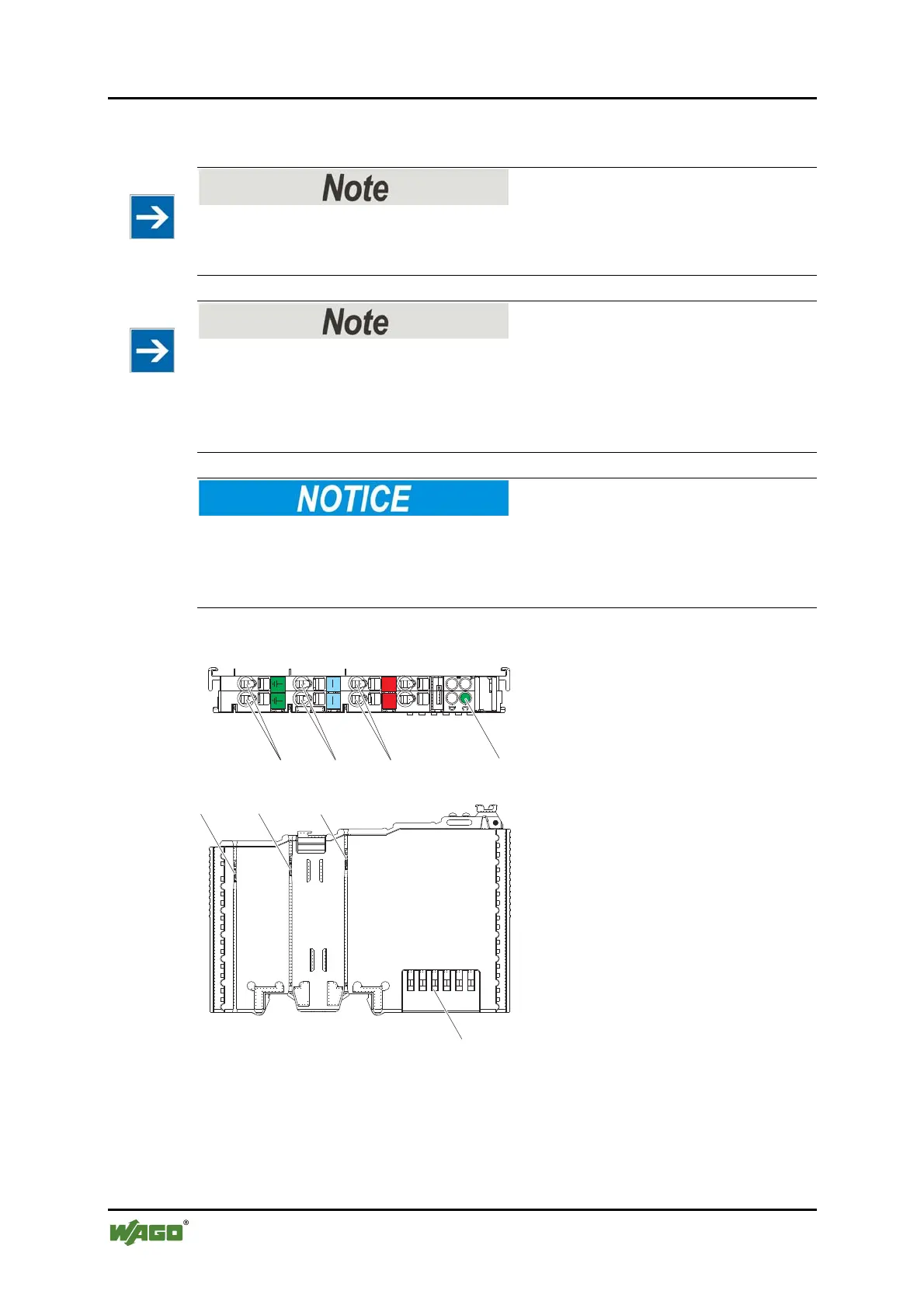

Figure 18: 750-602
63
64
60
61 62
63
63
