14.4.1.2 Access via RS-232 Interface and Terminal Program

In order to access the Linux console via RS-232 interface using a terminal

program, proceed as follows:

1. In the WBM or IPC configuration tool, assign the Linux console to the

RS-232 interface. For this, see section “Administration”.

Pos: 48.12 /Serie 758 ( Funk, IPC und PFC)/Betri ebssystem/Betriebssy stem Linux 758-87x IPC mit Feldbus - Zugriff über RS-232 und Terminal, Schr itt 2 @ 10\mod_1313400859077_21. doc @ 76907 @ @ 1

2. Connect the serial interface of the PC with RS-232 interface X6 (12) of the

I/O-IPC using a null modem cable.

Pos: 48.13 /Serie 758 ( Funk, IPC und PFC)/Betr iebssystem/Betriebssy stem Linux 758-87x IPC mit Feldbus - RS-232-Schni ttstelle X6 - Bild @ 10\ mod_1312533669046_21. doc @ 75977 @ @ 1

RST

Stop

Run

IDE/PWR

ERR

STA

RDY

RUN

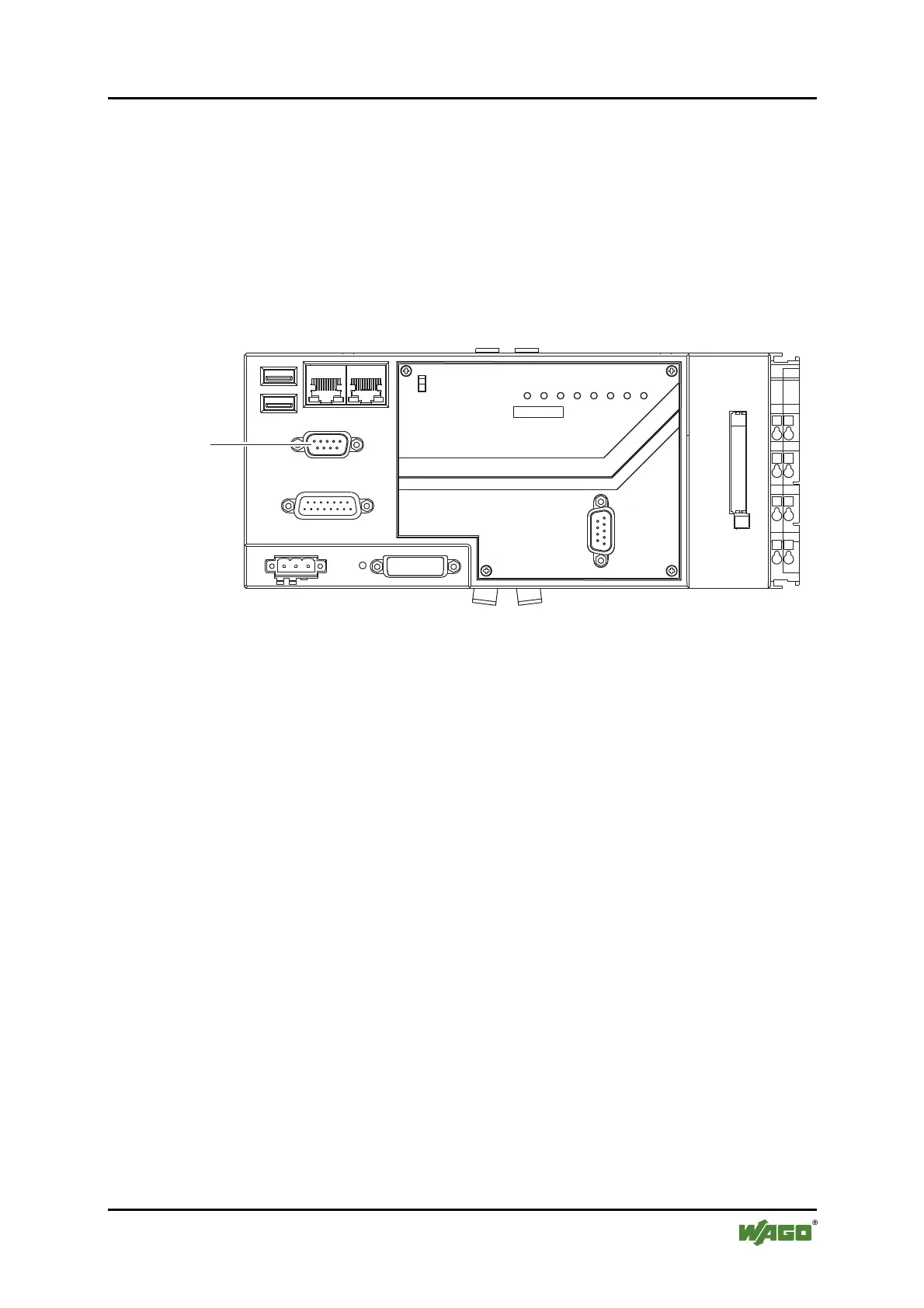

Figure 104: RS-232 interface X6

Pos: 48.14 /Serie 758 ( Funk, IPC und PFC)/Betr iebssystem/Betriebssy stem Linux 758-87x IPC - Zugriff über RS-232 und Terminal, Schritte 3 - 7 @ 10\mod_1312533822280_21.d oc @ 75985 @ @ 1

3. Open a terminal program (Linux: e.g. minicom, Windows: e.g. hyper

terminal) on your PC.

4. Enter the communication parameters of the I/O-IPC serial interface set

beforehand into the terminal program:

• Speed: 115200 bit/sec

• Data width: 8 Bit

• Parity: none

• Stop bits: 1 Bit

• Flow control: none

5. The Linux console start screen appears.

6. Enter your user name (See section "Access to the Linux console")

7. Enter the password for your user name. The Linux console of the I/O-IPC
