12.2.2 PROFIBUS Slaves
Using the tab described below, you define the behavior of PROFIBUS slaves.
Base Parameters

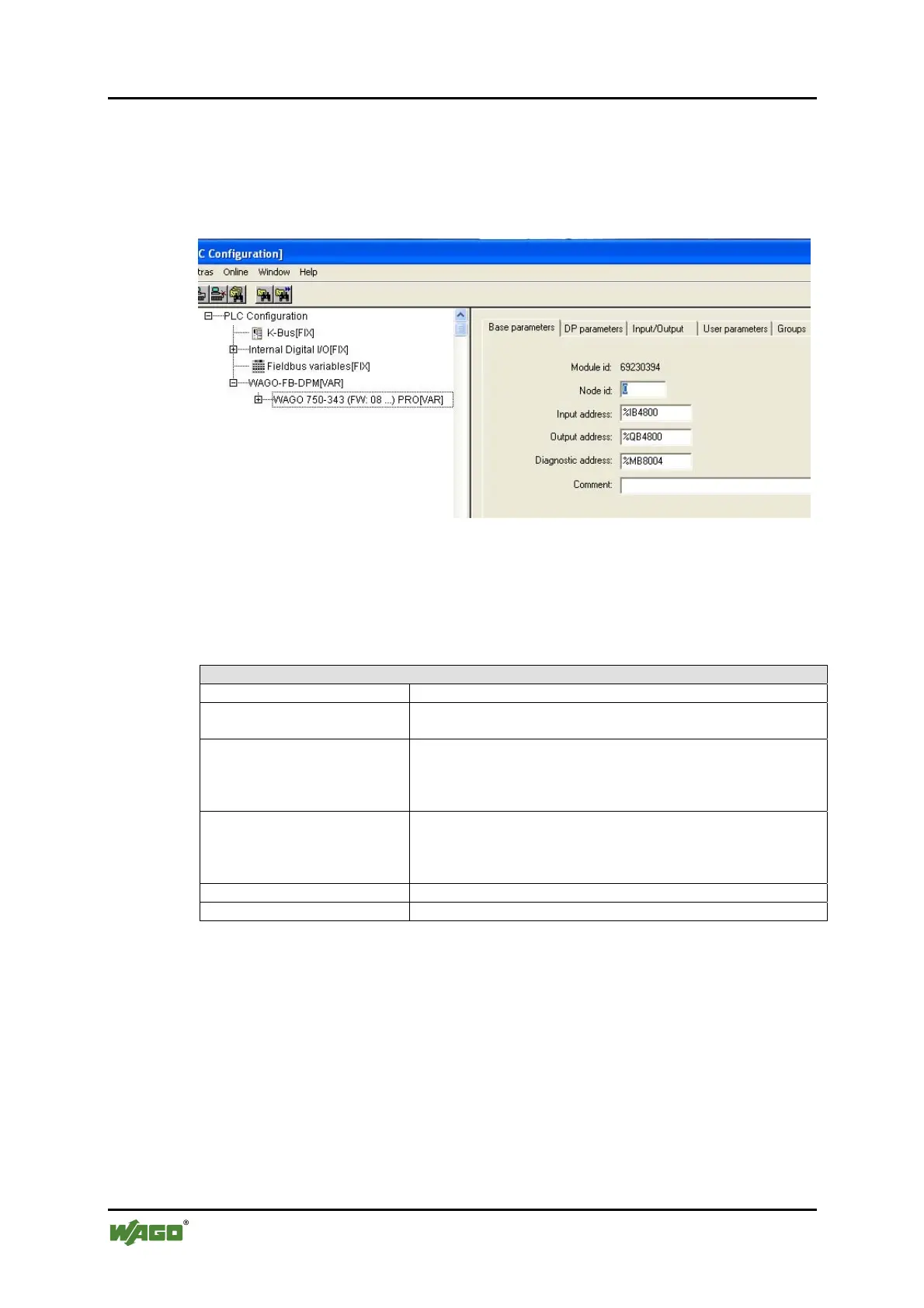

Figure 69: "Base Parameters" tab
The following table explains the parameters listed in the register that are
automatically assigned by the target system settings (see Section "Designing a
Project and Selecting the Target System"):
Table 62: Description of the Parameters
Base Parameters
Module id Recognition of the slave.
Node id Node number of the slave used in the CoDeSys runtime
environment.
Input address Starting address for the input data:
The address space always begins at %IB 4800 and is
automatically assigned. You can also adjust the starting address
manually.
Output address Starting address for the output data:
The address space always begins at %QB 4800 and is
automatically assigned. You can also adjust the starting address
manually.
Diagnostic address Memory area for internal diagnostic processing.
Comment: Here, you can assign the slave a unique name.
