164 PROFIBUS Master in CoDeSys 2.3 WAGO-I/O-SYSTEM 750
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
Description of the Diagnostic Information for WAGO I/O Modules
The diagnostic information of the WAGO I/O modules is stored beginning with
the array element EXTENDEDINFO[23]. Using the 750-466 Input Module with
two channels, you can see here, for example, the decoding of the diagnostic
information.

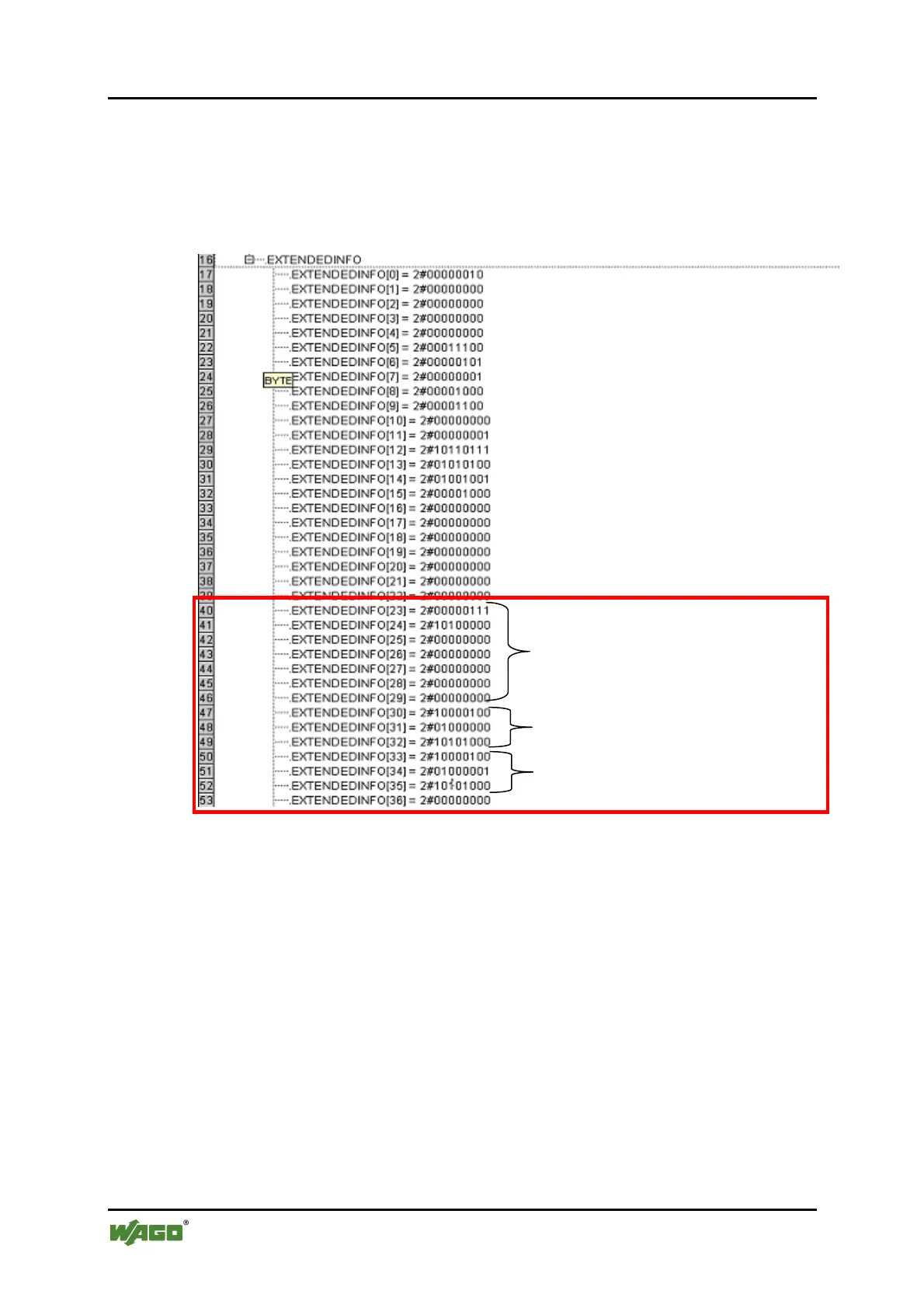

Figure 90: Online view of the arrays EXTENDEDINFO in binary representation 1
Diagnostic information of the
750-466 I/O Module, 7 bytes
Diagnostics of the 1st channel,
3 bytes
Diagostics of the 2nd channel,
3 bytes
