WAGO-I/O-SYSTEM 750 Connecting the Supply Voltage 57
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0
Pos: 38.15 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x 2.0 @ 10\mod_1313 409103611_21.doc @ 76984 @ @ 1
To connect the I/O-IPC electronic supply and the field supply for the connected
I/O modules, sensors and actuators, proceed as follows:
1. Disconnect from the power supply those parts of the system on which you
have mounted the I/O-IPC.
Pos: 38.16 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x 2.1 @ 10\mod_1315 215638034_21.doc @ 78147 @ @ 1
2. To supply power to the I/O-IPC electronics, connect 24 V to the "+" and 0
V to the "-" of the 750-602 filter module (6), as shown in the illustration.
Provide this supply with a 1.6 A fuse.
Pos: 38.17 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x allgemei n 2.2 @ 10\mod_13134102459 27_21.doc @ 76987 @ @ 1
3. To conduct the electronic supply from the filter module (6) to the I/O-IPC,
connect the power supply to the X4 connection (10).
Pos: 38.18 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x allgemei n 2.3 @ 10\mod_13134102555 36_21.doc @ 76990 @ @ 1
4. To supply power to the field, connect 24 V to "+" and 0 V to "-" of the
750-626 Filter Module (6), as shown in the illustration. Provide this supply
with a 10 A fuse.
Pos: 38.19 /Serie 758 ( Funk, IPC und PFC)/Ansc hluss Daten- und Versorgungsk abel/Anschluss D aten- und Versorgungska bel 758-87x 750-626 - Bild 2 mit Feldbus @ 10\mod_131244 2227204_21.doc @ 75875 @ @ 1
Field power supplyElectronic power supply
GND
V_IN
10
24 V
0 V
24 V
0 V
+-
10 A
24 V
0 V
+-
1,6 A
6
+
+
+
+
+
+

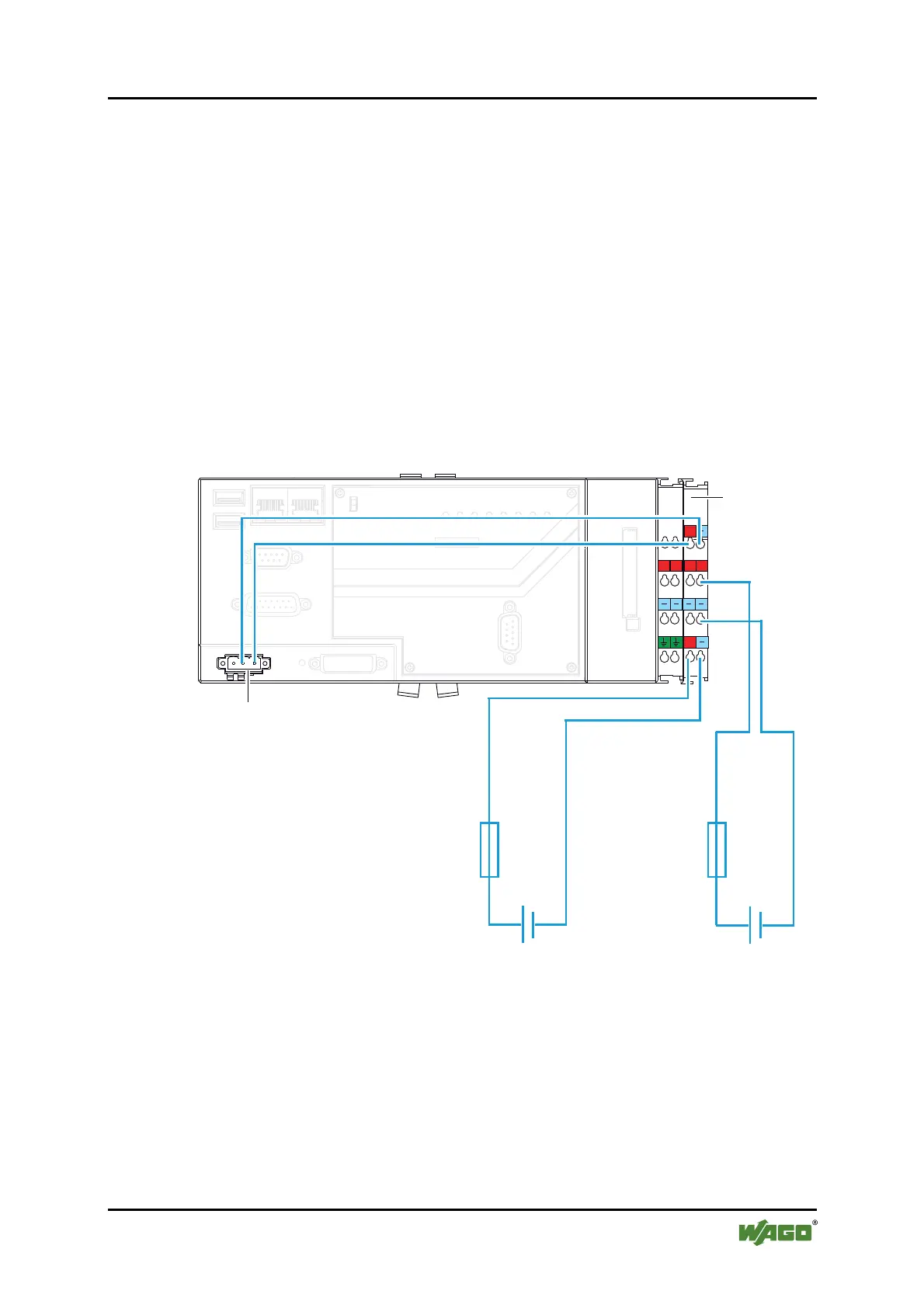

Figure 21: Power Supply via 750-626 (with fieldbus)
