8.5 Switch Off/Re-start
Pos: 41.10 /Serie 758 ( Funk, IPC und PFC)/Wic htige Erläuterungen/Sic herheitshinweise/Si cherheitshinwei se 758-87x Heiße Oberseite PI KTOGRAMM @ 10\mod_13151 99932690_21.doc @ 78103 @ @ 1
CAUTION
Hot surface!
The I/O-IPC housing may become hot during operation. If the I/O-IPC has been
in operation, allow it to cool off before moving it.
Pos: 41.11 /Serie 758 ( Funk, IPC und PFC)/I n Betrieb nehmen/In Betrieb nehmen 758- 87x 6 Text @ 11\mod_131522 4087320_21.doc @ 78230 @ @ 1
To switch the I/O-IPC off, proceed as follows:
1. Close the running software and the operating system.
2. Switch the I/O-IPC off by turning off the power supply or by disconnecting
the power socket from theX4 connector (10).
To restart the I/O-IPC, press the reset button (45) or switch the I/O-IPC off and
then on again.
Pos: 41.12 /Serie 758 ( Funk, IPC und PFC)/In B etrieb nehmen/In Betrieb nehmen 758- 87x -FB Bild @ 10\mod_131 2442612008_21.doc @ 75886 @ @ 1
RST
Stop
Run
U1
IDE/PWR
IO
ERR
STA
RDY
RUN
U2

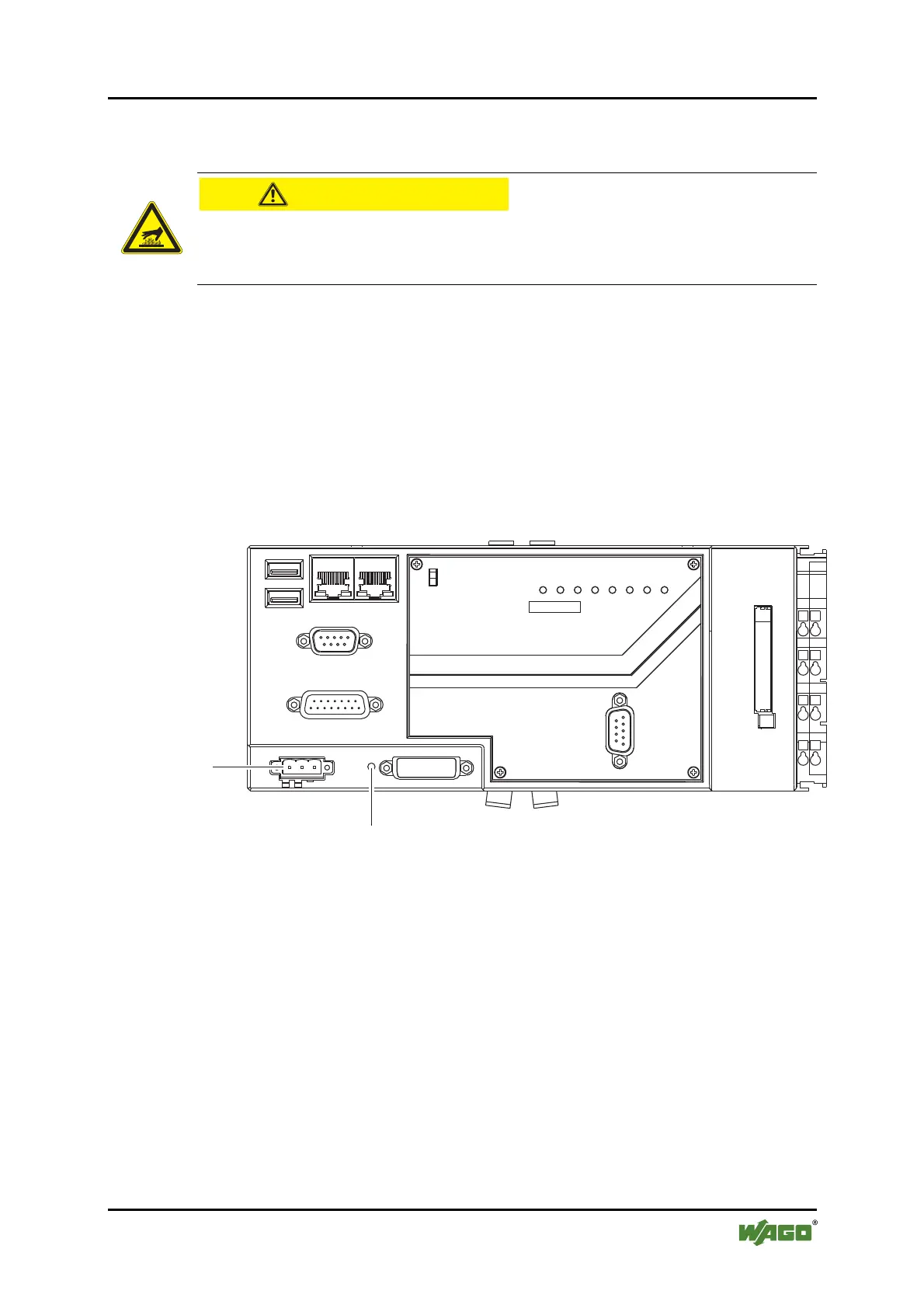

Figure 30: Switch off/restart of the I/O-IPC
