WAGO WAGO-I/O-IPC-C6 User Manual

WAGO-I/O-SYSTEM 750 Description of I/O-IPC Interfaces 39
758-874/000-131 WAGO-I/O-IPC-C6
Manual
Version 1.0.0

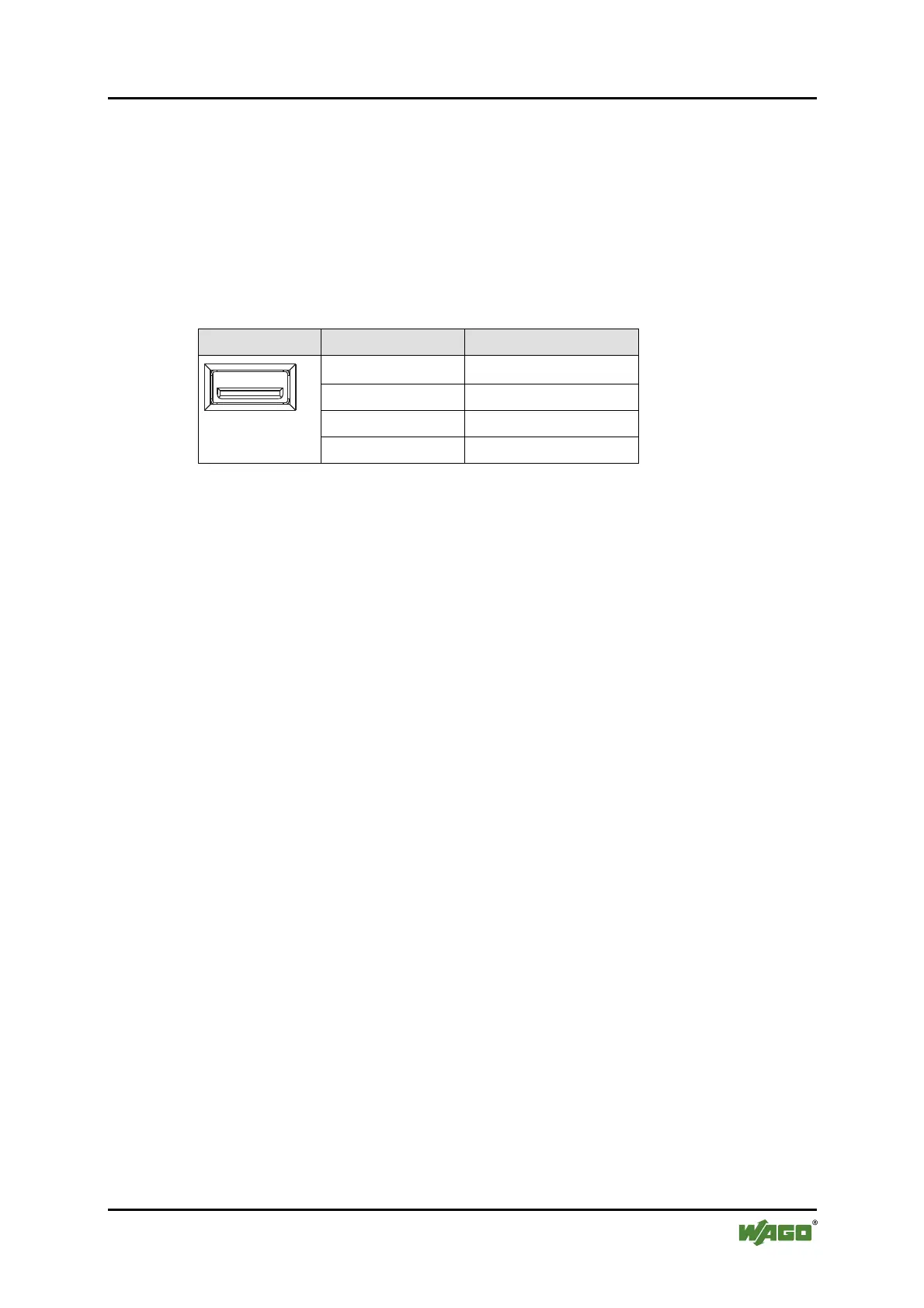

5.5 USB Interfaces (X10, X11)
The USB interfaces are used to connect USB devices such as USB memory. If the
connected USB device is not used, you can remove it at any time. If a USB
memory is connected, it is important to remember to close any open files before
removing the USB memory.
The following table provides information on the USB interface pin assignments:
Table 16: USB Interfaces: Pin Assignments
Connector Pin Description
1 USB_VCC1
2 USB_N1
3 USB_P1
4
3
2
1
Figure 10: USB
Interface
4 USB_GND
