ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S32

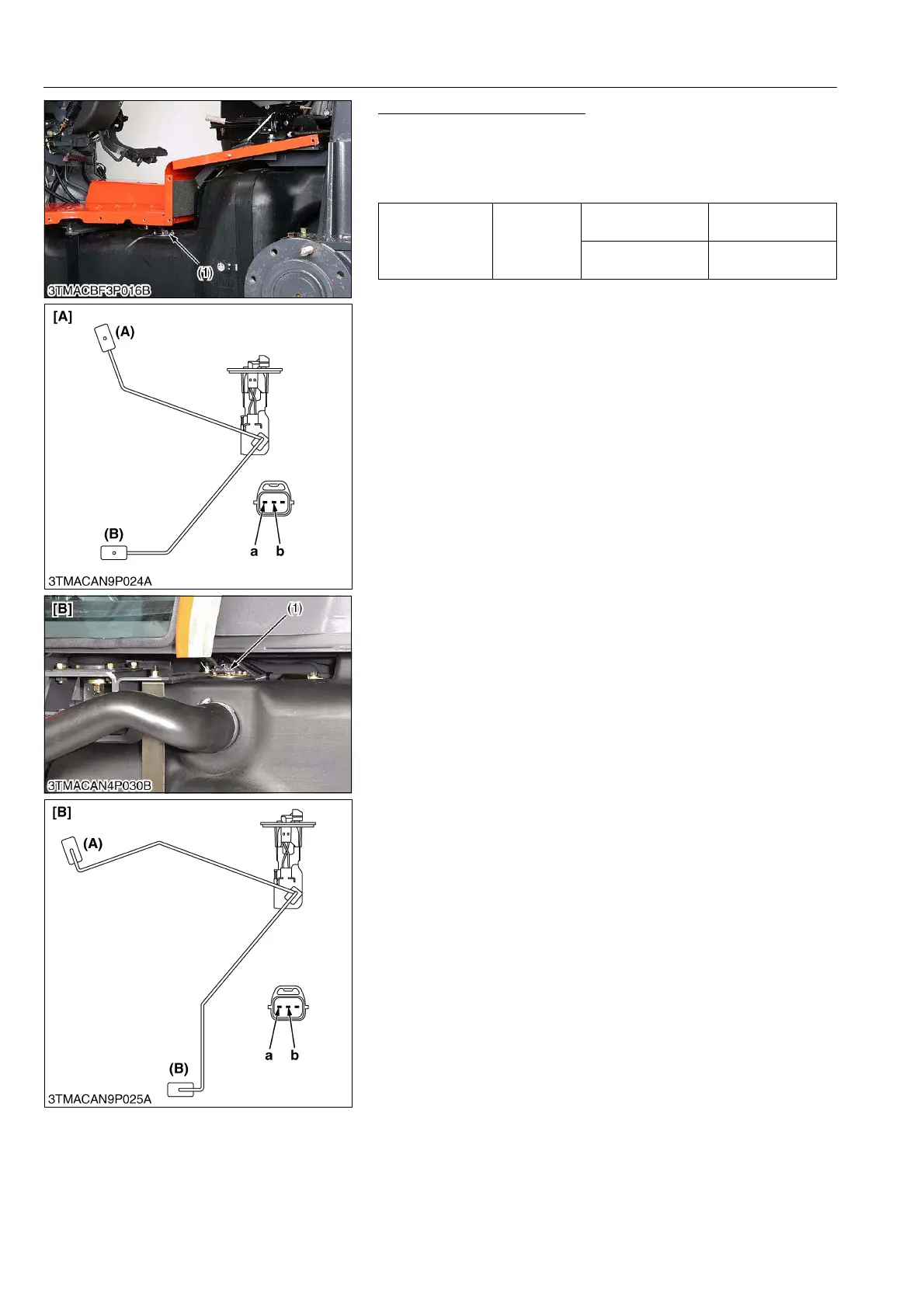

Checking Fuel Level Sensor
1. Remove the fuel level sensor from the fuel tank.
2. Measure the resistance with an ohmmeter across the terminal a
and terminal b.
3. If the measurement is not indicated, the sensor is faulty.
9Y1210143ELS0050US0
Resistance
(Sensor terminal
a – terminal b)
Factory
specification
Float at uppermost
position
3.0 to 5.0 Ω
Float at lowermost
position
107.5 to 112.5 Ω
(1) Fuel Unit
[A] ROPS Model
[B] CABIN Model
(A) Float at Uppermost Position
(B) Float at Lowermost Position
a: Terminal 1
b: Terminal 2
