YASKAWA GA700 Series

Document No. EZZ024200
Prepared in October 2020
4
Provide the external 24 V power supply to the input signal common terminal (SC). For details on wiring, refer to
Figure 2.

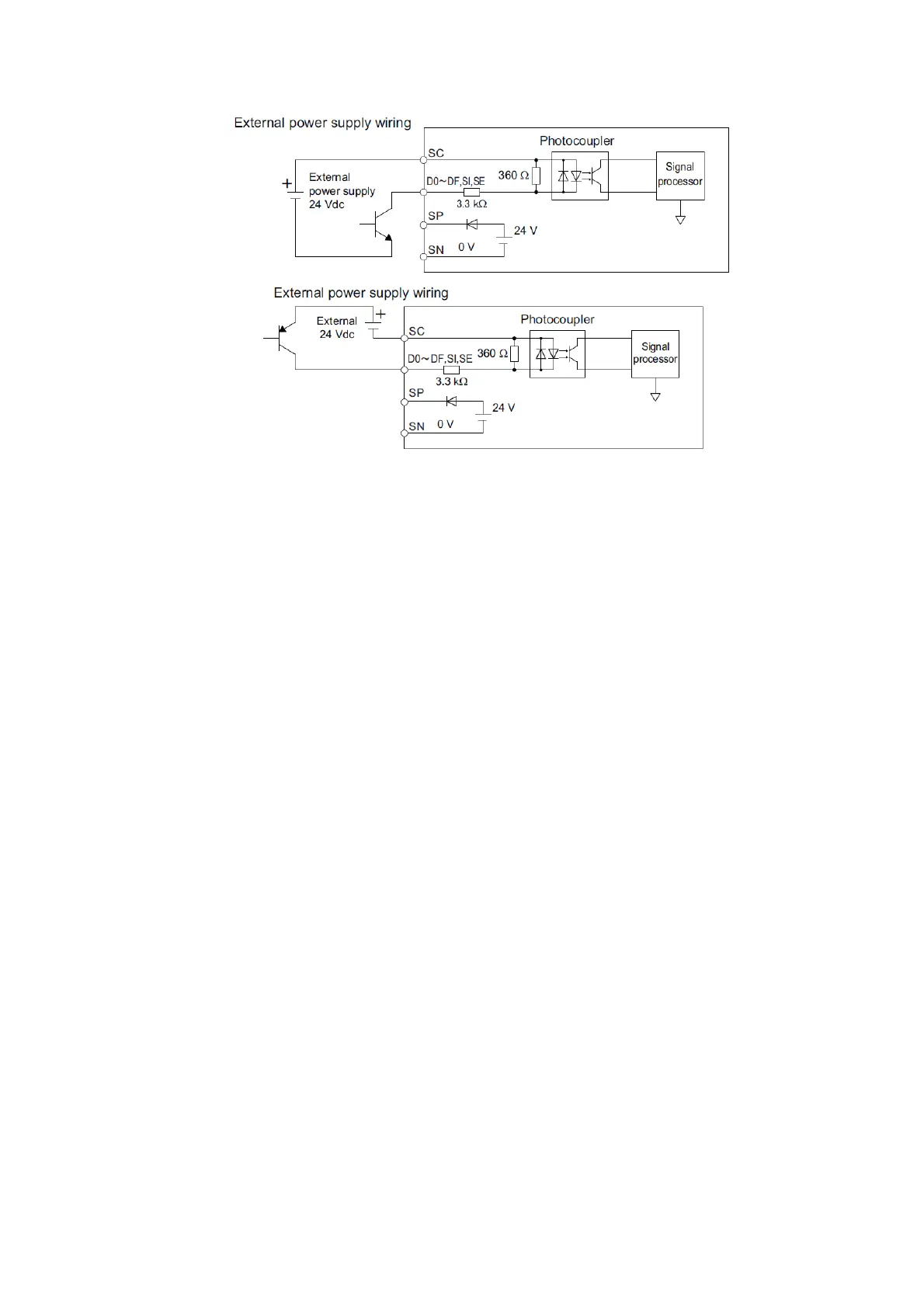

Figure 2. Digital Input Option (DI-A3) Wiring
Note: Use of different external 24 V power supplies is recommended for external power supply input terminals
(PS-AC) and multi-function input selection common terminal (SC)/input signal common terminal (SC).
