YASKAWA GA700 Series

4.6 Keypad Operation
178 YASKAWA SIEPC71061705H GA700 Series Technical Manual

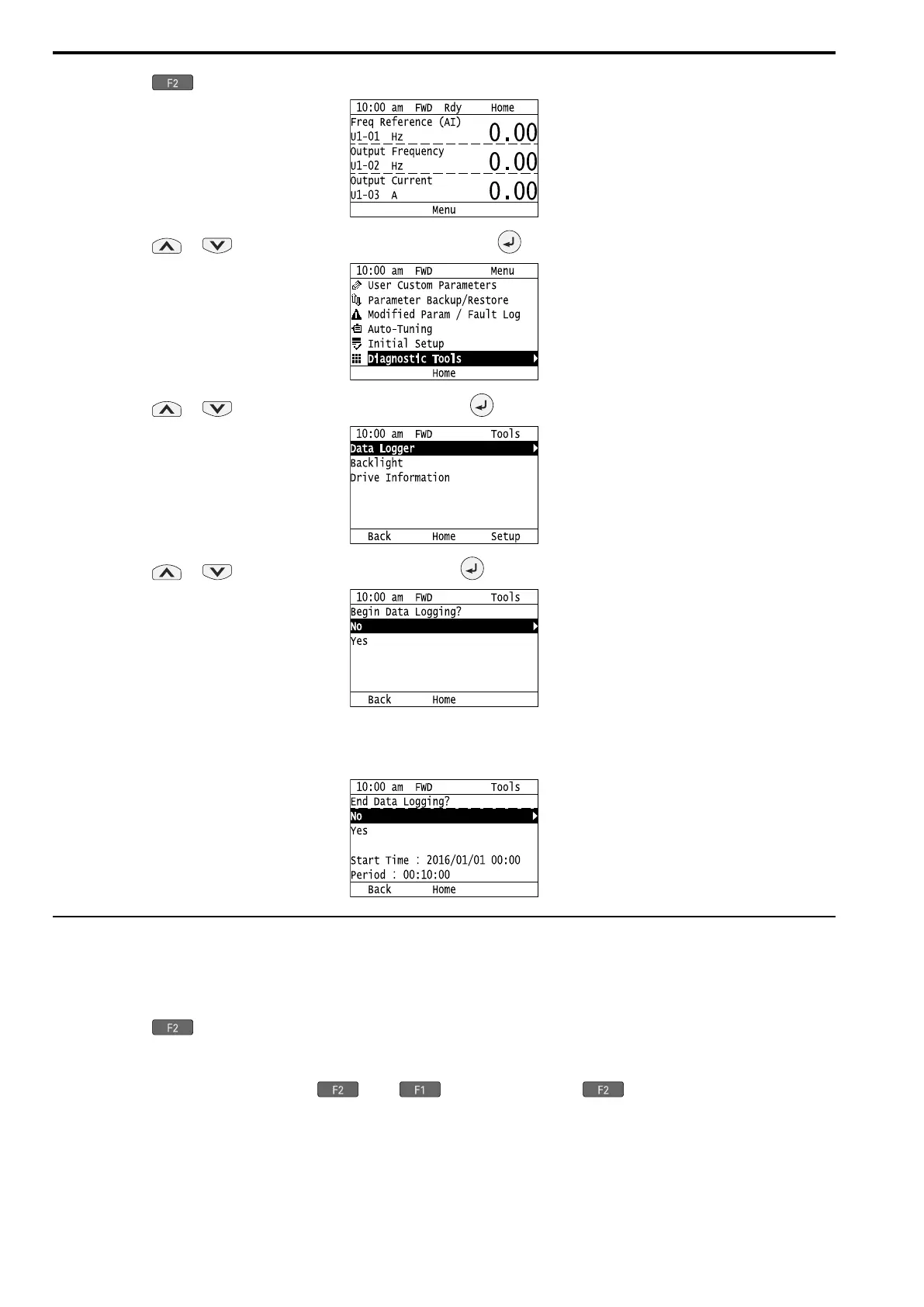

3. Push (Menu).
4. Push or to select [Diagnostic Tools], then push .
5. Push or to select [Data Logger], then push .
6. Push or to select [Yes] or [No], then push .
• [Yes]: Data logging starts.
• [No]: Data logging will not start.
If the drive was logging data when you entered the command, the keypad look like this:
◆ Configuring the Data Log Content
■ Set Monitor to Log
The procedure in this section shows how to set the monitor for which to log data.
1. Push (Home) to show the HOME screen.
Note:
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If the screen does not show [Home] for , push (Back), and then push to show [Home].
