4.2 Keypad Components and Functions
136 YASKAWA SIEPC71061705H GA700 Series Technical Manual

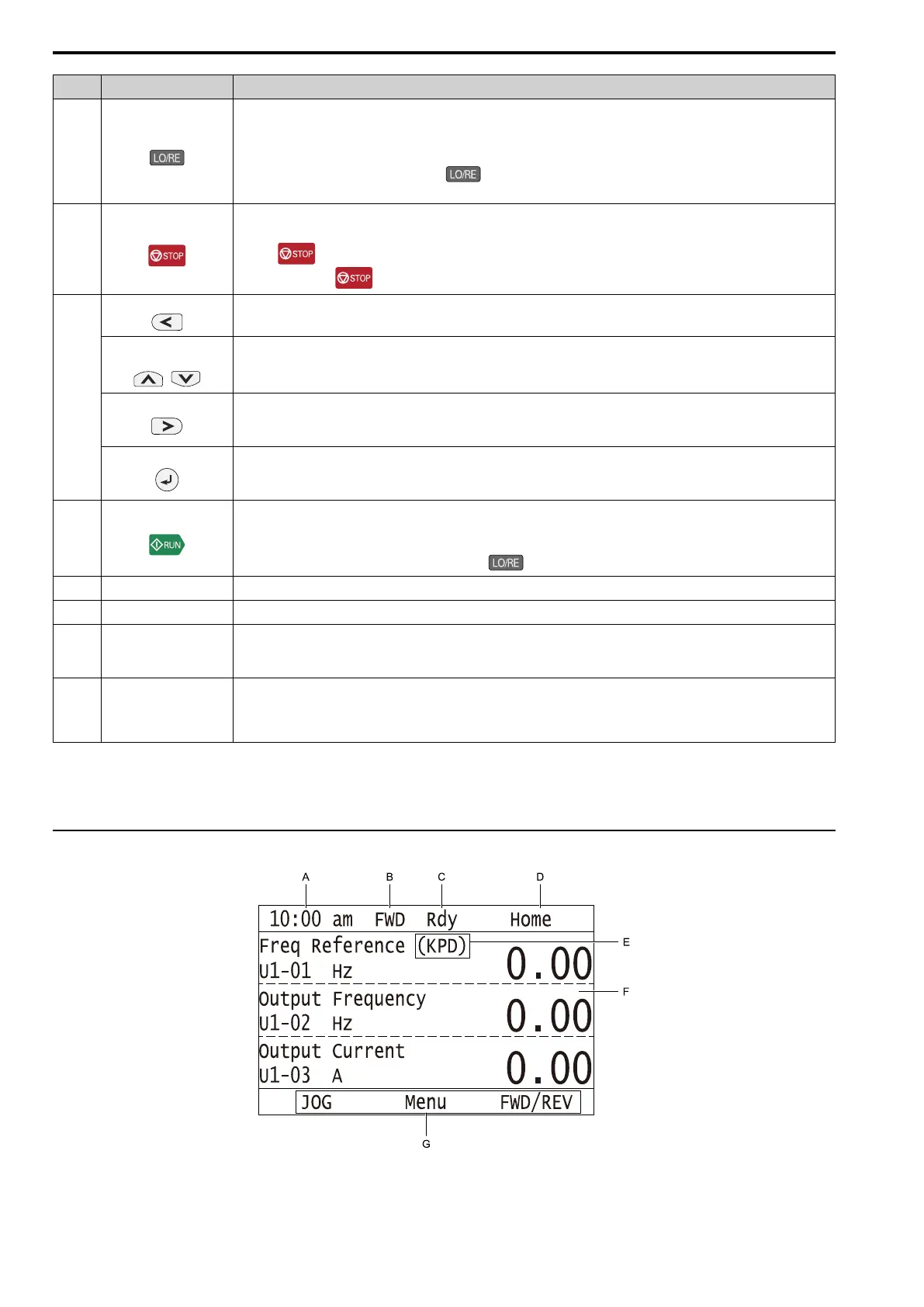

Symbol Name Function
F
LO/RE Selection Key
Switches drive control for the Run command and frequency reference between the keypad (LOCAL) and an external source
(REMOTE).
Note:
• The LOCAL/REMOTE Selection Key continuously stays enabled after the drive stops in Drive Mode. If the application must not
switch from REMOTE to LOCAL because it will have a negative effect on system performance, set o2-01 = 0 [LO/RE Key
Function Selection = Disabled] to disable .
• The drive will not switch between LOCAL and REMOTE when it is receiving a Run command from an external source.
G
STOP Key
Stops drive operation.
Note:
Push to stop the motor. This will also apply when a Run command (REMOTE Mode) is active at an external Run command
source. To disable priority, set o2-02 = 0 [STOP Key Function Selection = Disabled].
H
Left Arrow Key • Moves the cursor to the left.
• Goes back to the previous screen.
Up Arrow Key/Down
Arrow Key
/
• Scrolls up or down to show the next item or the previous item.
• Selects parameter numbers, and increments or decrements setting values.
Right Arrow Key (RESET)
• Moves the cursor to the right.
• Continues to the next screen.
• Resets the drive to clear a fault.
ENTER Key
• Enters parameter values and settings.
• Selects menu items to move between keypad displays.
• Selects each mode, parameter, and set value.
I
RUN Key
Starts the drive in LOCAL Mode.
Starts the operation in Auto-Tuning Mode.
Note:
Before you use the keypad to operate the motor, push on the keypad to set the drive to LOCAL Mode.
J
USB Terminal
For factory adjustment
K RJ-45 Connector
Connects to the drive using an RJ-45 8-pin straight through UTP CAT5e extension cable or keypad connector.
L Clock Battery Cover
Remove this cover to install or replace the clock battery.
Note:
You must supply the clock battery
*1
. It is not included with the keypad.
M
Nameplate
Shows the model number of the keypad and other information
Note:
• “REV” identifies the hardware and software version of the keypad.
• “FLASH” identifies the version of the flash memory.
*1 Refer to Replace the Keypad Battery on page 418 for information about the correct clock battery and the installation procedure.
WARNING! Sudden Movement Hazard. If you change the control source when b1-07 = 1 [LOCAL/REMOTE Run Selection =
Accept Existing RUN Command], the drive can start suddenly. Before you change the control source, remove all personnel from
the area around the drive, motor, and load. Sudden starts can cause serious injury or death.
◆ LCD Display
Figure 4.2 LCD Display Indications
