3.9 Braking Resistor Installation
116 YASKAWA SIEPC71061705H GA700 Series Technical Manual

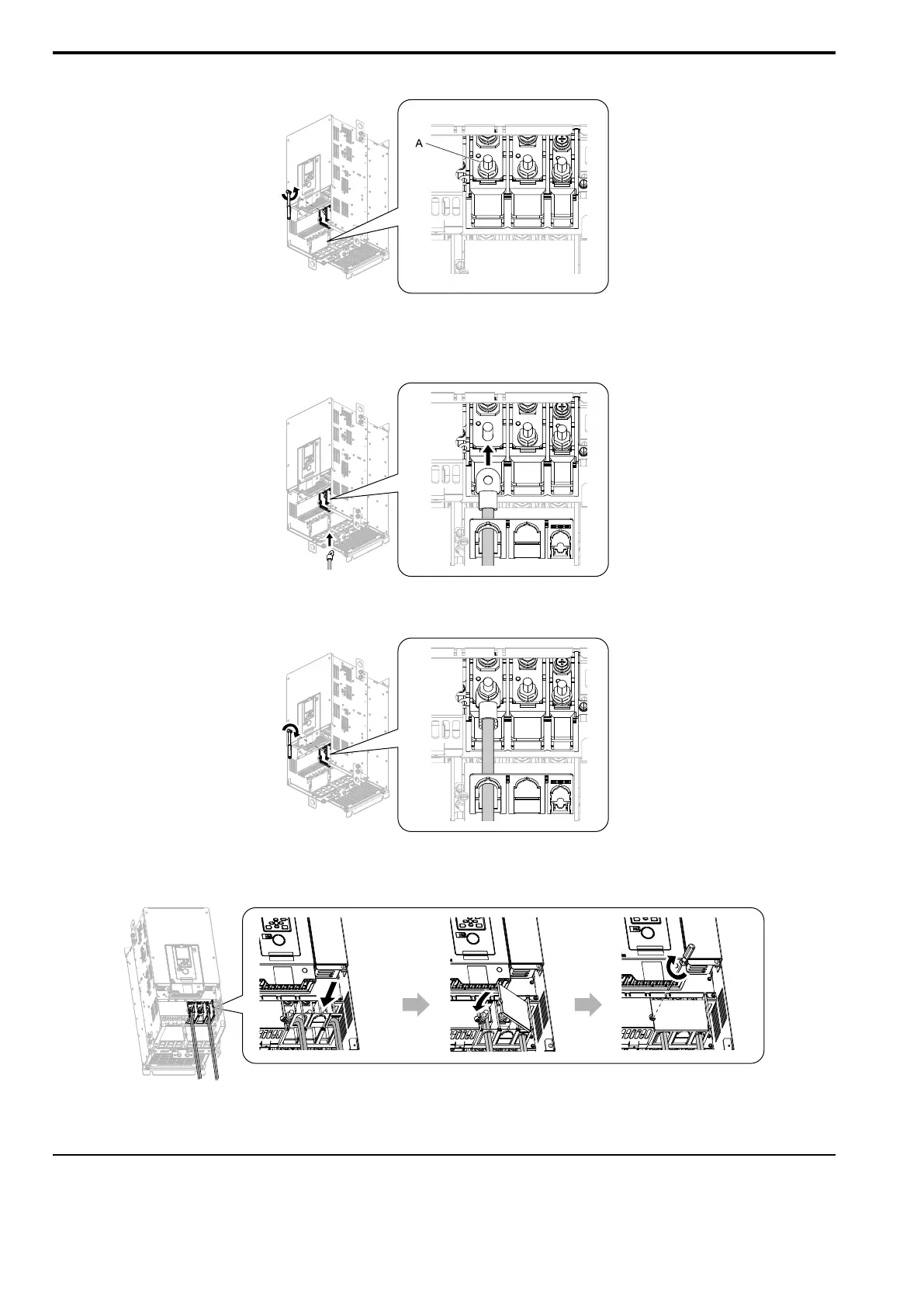

5. Remove the main circuit terminal block nut.
A - Nut
Figure 3.68 Remove the Terminal Block Nut
6. Wire the closed-loop crimp terminal to the main circuit terminal block.
Figure 3.69 Connect the Wire
7. Tighten the nut to the specified torque.
Figure 3.70 Tighten the Terminal Block Nut
8. Attach the wiring cover and terminal block cover to their initial positions and tighten the screws on the
terminal block cover.
Figure 3.71 Reattach the Wiring Cover
9. Put the terminal cover back in its initial position.
◆ Connect Braking Units in Parallel
To connect two or more braking units in parallel, refer to Figure 3.72 for wiring and connector selections.
