4.6 Keypad Operation
180 YASKAWA SIEPC71061705H GA700 Series Technical Manual

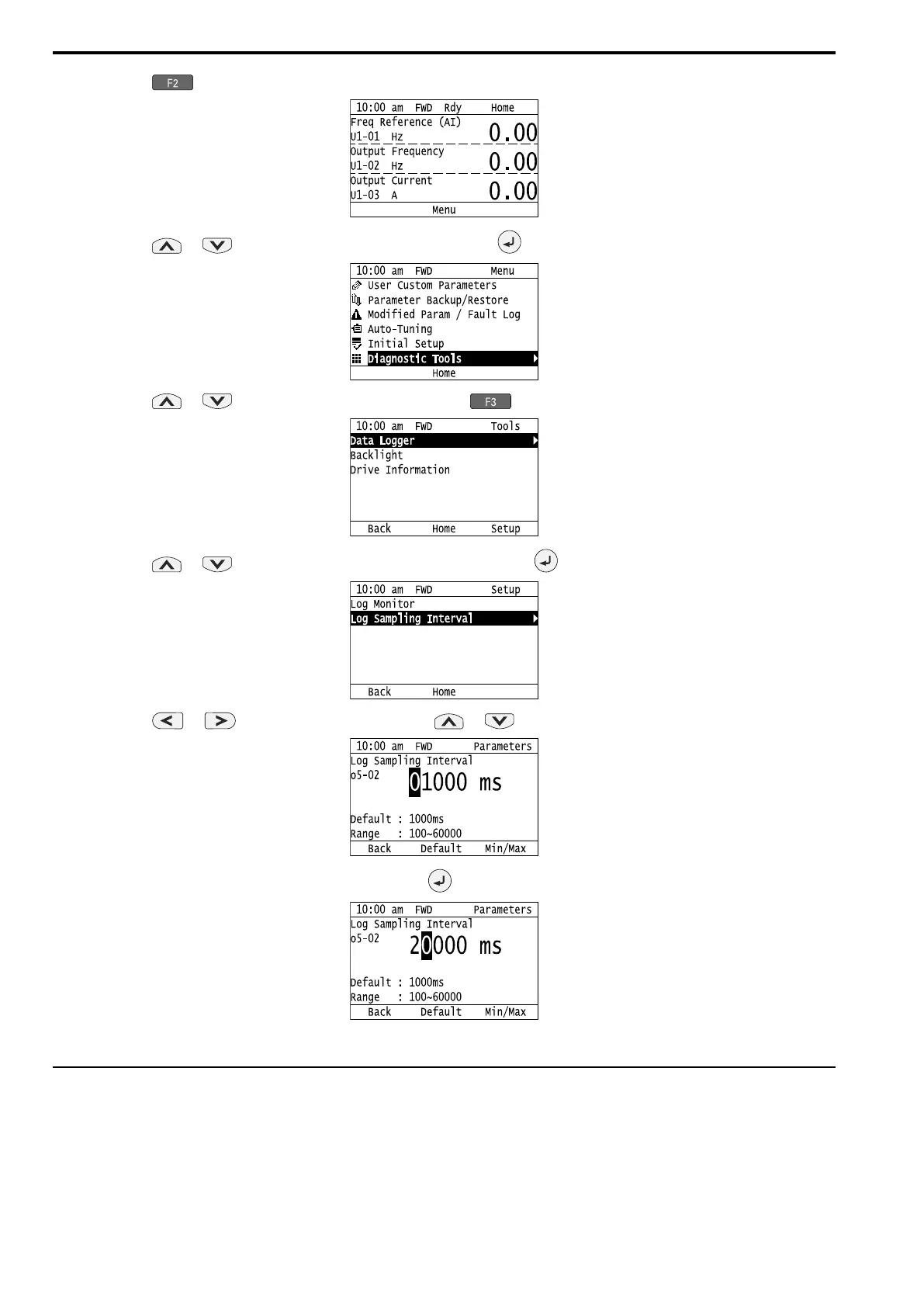

2. Push (Menu).
3. Push or to select [Diagnostic Tools], then push .
4. Push or to select [Data Logger], then push (Setup).
5. Push or to select [Log Sampling Interval], then push .
6. Push or to select the digit, then push or to change the value.
7. When you complete changing the value, push .
The procedure to set the sampling time is complete.
◆ Set Backlight to Automatically Turn OFF
You can set the backlight of the keypad screen to automatically turn OFF after a set length of time since the last
key operation on the keypad. The procedure in this section shows how to turn ON and turn OFF the backlight.
To Next Page
