10.8 Knock-Out Hole Dimensions (IP20/UL Type 1)
YASKAWA SIEPC71061705H GA700 Series Technical Manual 465
10.8 Knock-Out Hole Dimensions (IP20/UL Type 1)
◆ Models and Dimensions of Knock-Out Hole
Model Reference
2004 to 2042
4002 to 4023
465
2056
4031, 4038
466
2070, 2082
4044, 4060
466
2110
4075
467
2138
4089, 4103
467
2169
4140, 4168
468
2211 468
2257, 2313
4208 - 4296
469
2360
4371
469
■ 2004 to 2042, 4002 to 4023

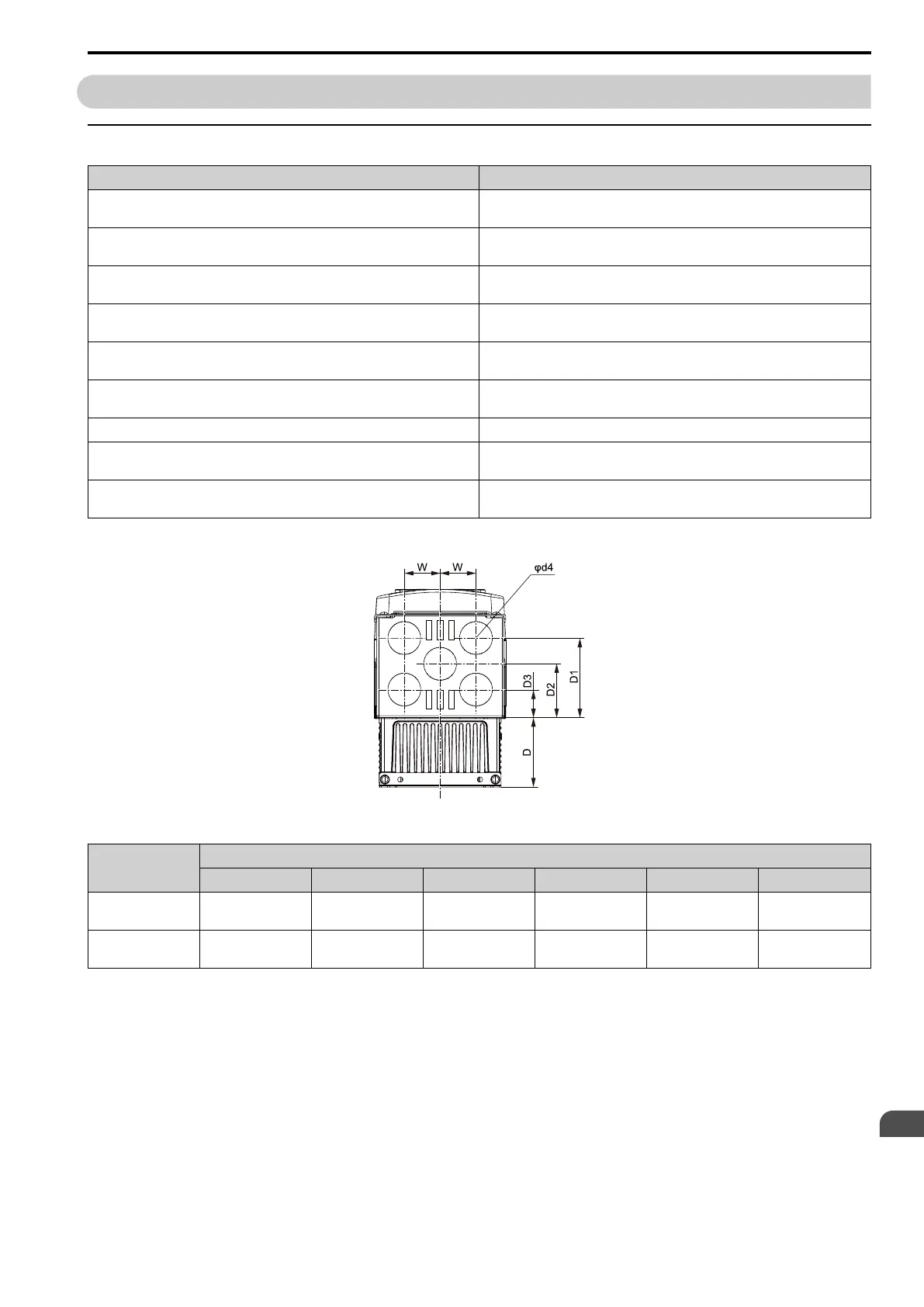

Figure 10.19 Knock-Out Dimensions Diagram 1 (Model: 2004 to 2042, 4002 to 4023)
Model
Dimensions mm (in)
D D1 D2 D3 W φd4
2004 to 2012
4002 to 4005
39
(1.54)
85
(3.35)
57.5
(2.26)
30
(1.18)
38.2
(1.50)
35
(1.38)
2018 to 2042
4007 to 4023
74
(2.91)
85
(3.35)
57.5
(2.26)
30
(1.18)
38.2
(1.50)
35
(1.38)
