3.5 Control Circuit Wiring
94 YASKAWA SIEPC71061705H GA700 Series Technical Manual
3.5 Control Circuit Wiring
This section gives information about how to correctly wire the control circuit.
◆ Control Circuit Connection Diagram
Wire the drive control circuit as shown in Figure 3.35.

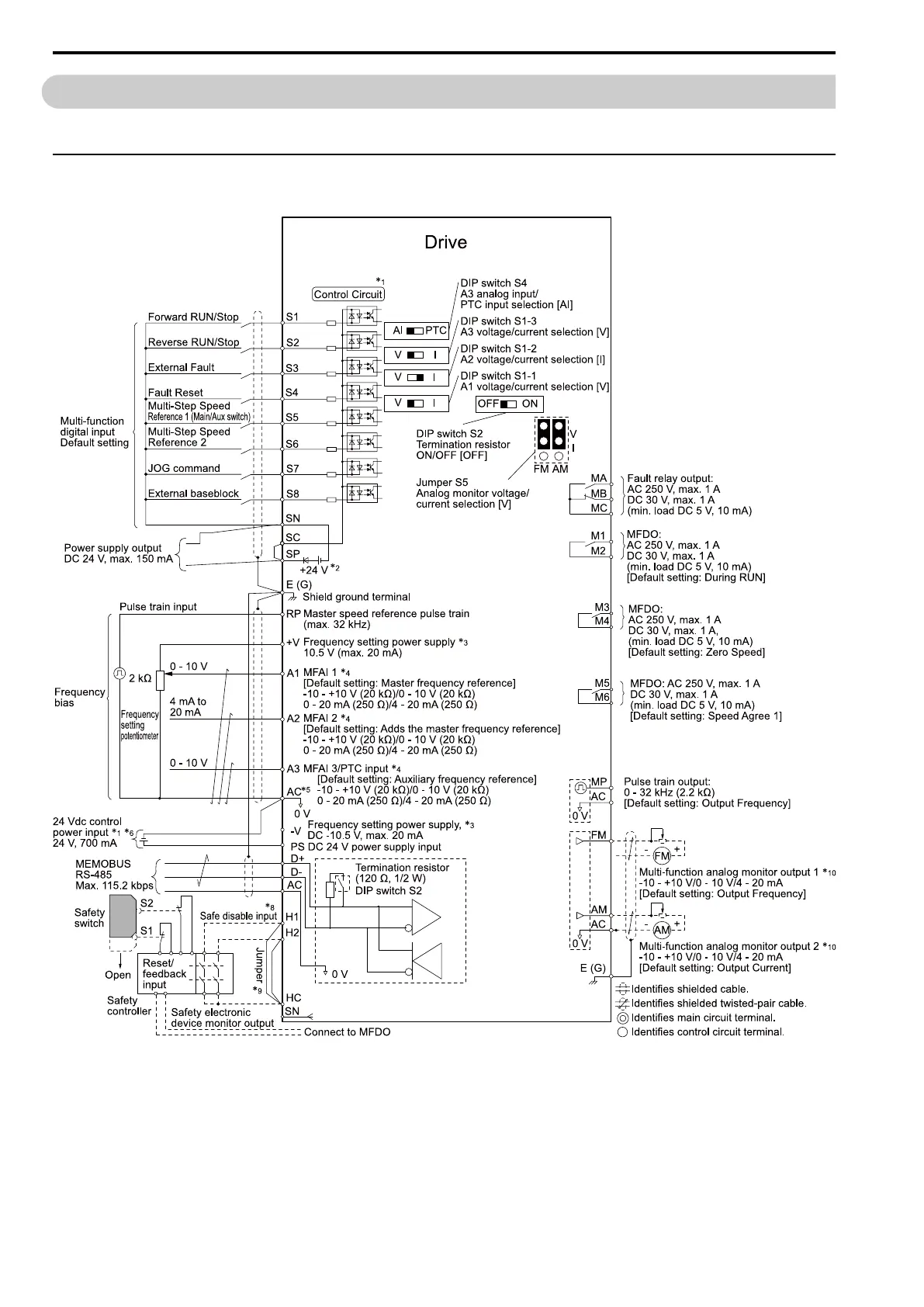

Figure 3.35 Control Circuit Connection Diagram
*1 Connect a 24 V Control power input supply to terminals PS-AC to operate the control circuit while the main circuit power supply is
OFF.
