3.7 Connect the Drive to a PC
108 YASKAWA SIEPC71061705H GA700 Series Technical Manual
3.7 Connect the Drive to a PC
The drive has a mini-B type USB port.
You can use a USB cable (USB 2.0, type: A - mini-B) to connect the drive to a type-A USB port on a PC. After
you connect the drive to the PC, you can use Yaskawa DriveWizard Industrial software to monitor drive
performance and manage parameter settings.
A - USB 2.0, type A - mini-B cable
B - Mini-B type connector
C - Type-A connector
D - PC

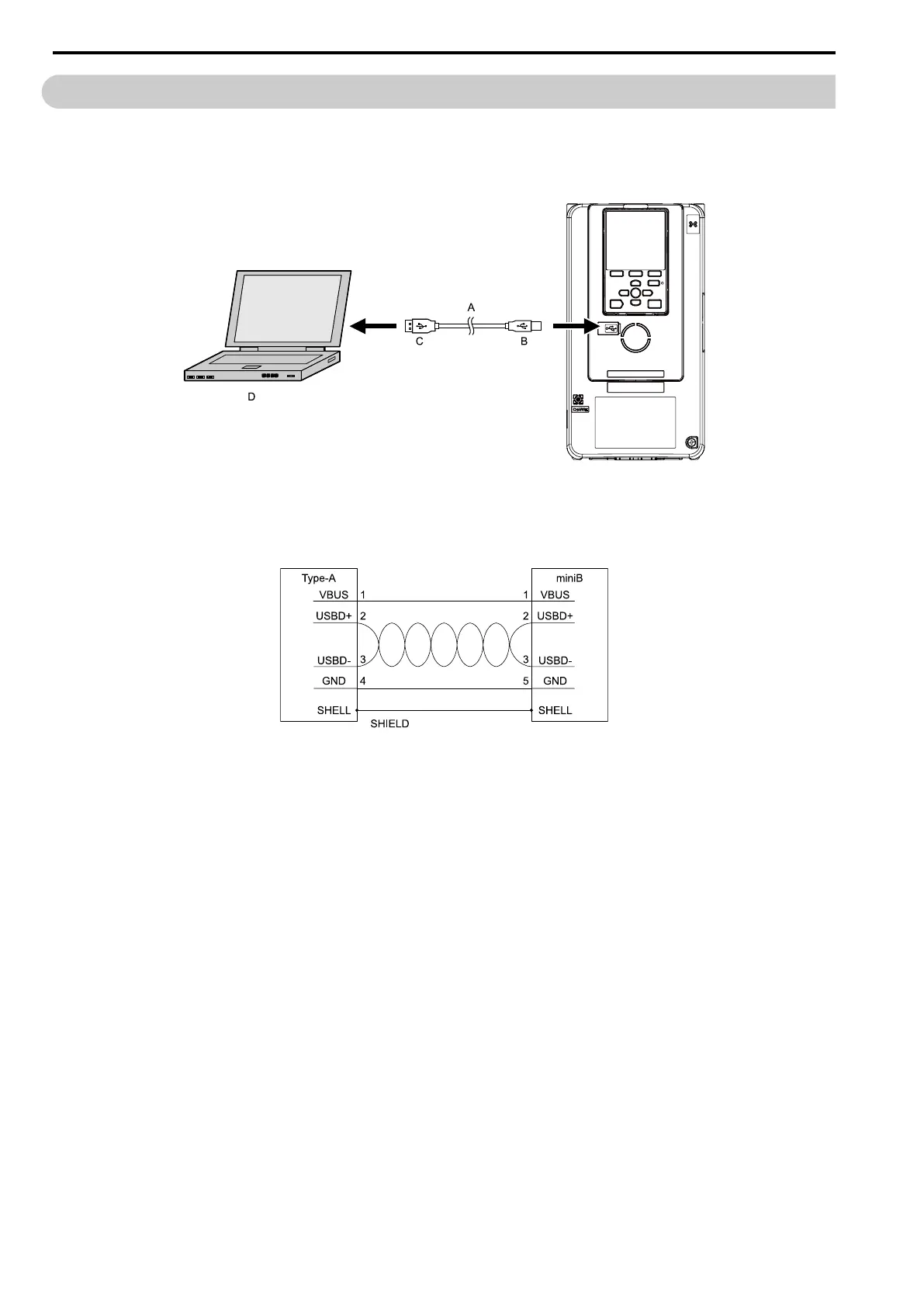

Figure 3.53 Connect to a PC (USB)
Yaskawa recommends that you use a USB cable with connectors connected with shielded wires.
Figure 3.54 Recommended USB Cable
