YASKAWA GA700 Series

4.6 Keypad Operation
154 YASKAWA SIEPC71061705H GA700 Series Technical Manual

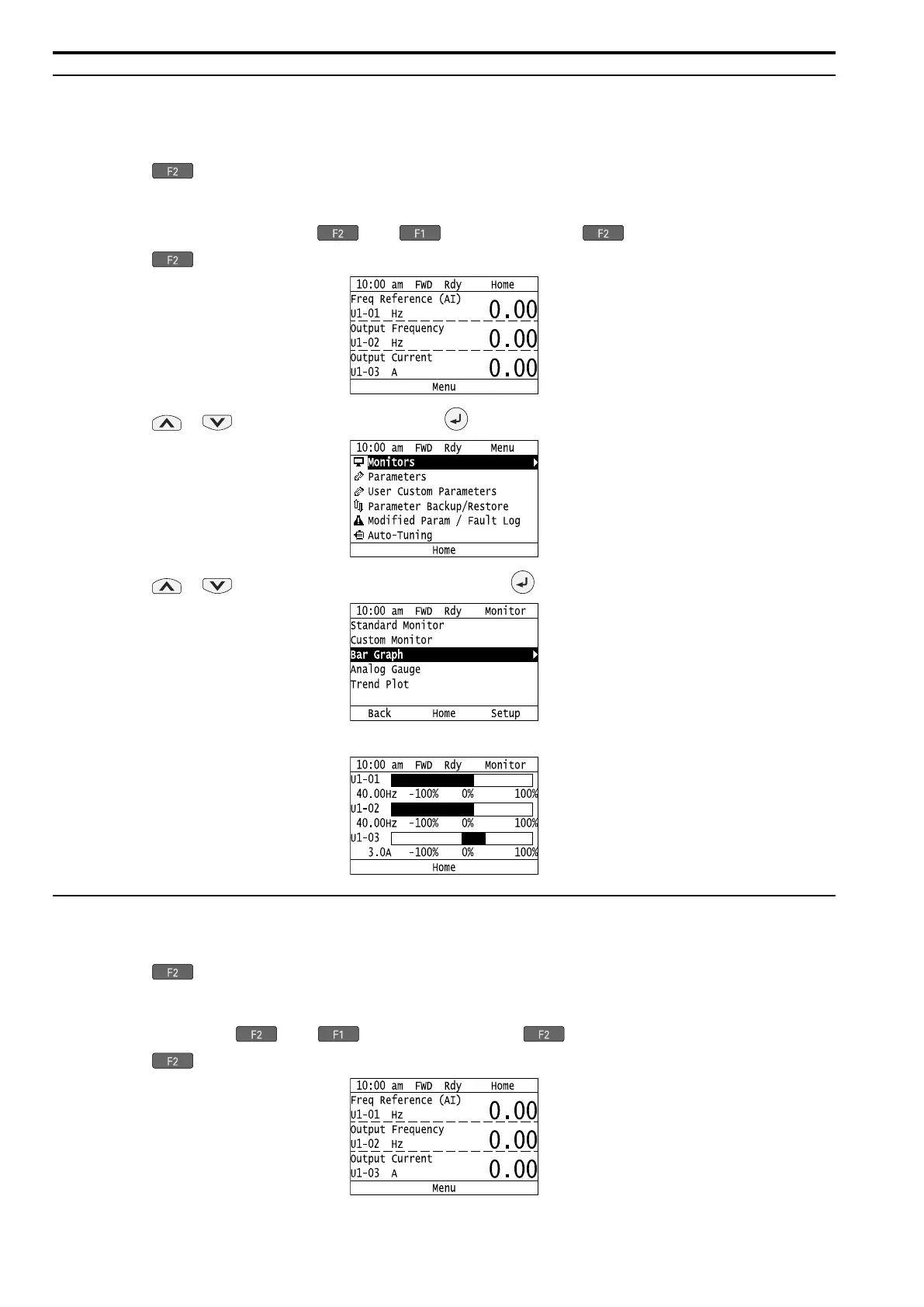

◆ Show Monitors as Bar Graphs
The procedure in this section shows how to show a specific monitor as a bar graph. You can show a maximum of
three.
1. Push (Home) to show the HOME screen.
Note:
• When the drive is in HOME Mode, the screen shows [Home] in the upper right-hand corner of the screen.
• If the screen does not show [Home] for , push (Back), and then push to show [Home].
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Display Bar Graph], then push .
The screen will show the monitors as shown in this figure.
◆ Set the Monitors to Show as Analog Gauges
The procedure in this section shows how to show the frequency reference monitor as an analog gauge.
1. Push [Home] to show the HOME screen.
Note:
• The keypad will [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push [Back] to show [Home] on .
2. Push [Menu].
