YASKAWA GA700 Series

10.7 Drive Exterior and Mounting Dimensions
456 YASKAWA SIEPC71061705H GA700 Series Technical Manual
Table 10.46 Three-Phase 400 V Class (IP20/UL Open Type)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2 W3 W4
W5
(Maxi
mum)
H1 H2 H3 H4 t1 t2 d
4453
510
(20.08)
1136
(44.72)
480
(18.90)
260
(10.24)
220
(8.66)
450
(17.72)
450
(17.72)
225
(8.86)
225
(8.86)
20
(0.79)
1093
(43.03)
25.5
(1.00)
43.5
(1.71)
30.5
(1.20)
4.5
(0.18)
4.5
(0.18)
M12
198
(436.59)
4568
510
(20.08)
1136
(44.72)
480
(18.90)
260
(10.24)
220
(8.66)
450
(17.72)
450
(17.72)
225
(8.86)
225
(8.86)
20
(0.79)
1093
(43.03)
25.5
(1.00)
43.5
(1.71)
30.5
(1.20)
4.5
(0.18)
4.5
(0.18)
M12
198
(436.59)
4675
510
(20.08)
1136
(44.72)
480
(18.90)
260
(10.24)
220
(8.66)
450
(17.72)
450
(17.72)
225
(8.86)
225
(8.86)
20
(0.79)
1093
(43.03)
25.5
(1.00)
43.5
(1.71)
30.5
(1.20)
4.5
(0.18)
4.5
(0.18)
M12
207
(456.44)
◆ IP20/UL Type1
■ 2004 - 2042, 4002 - 4023

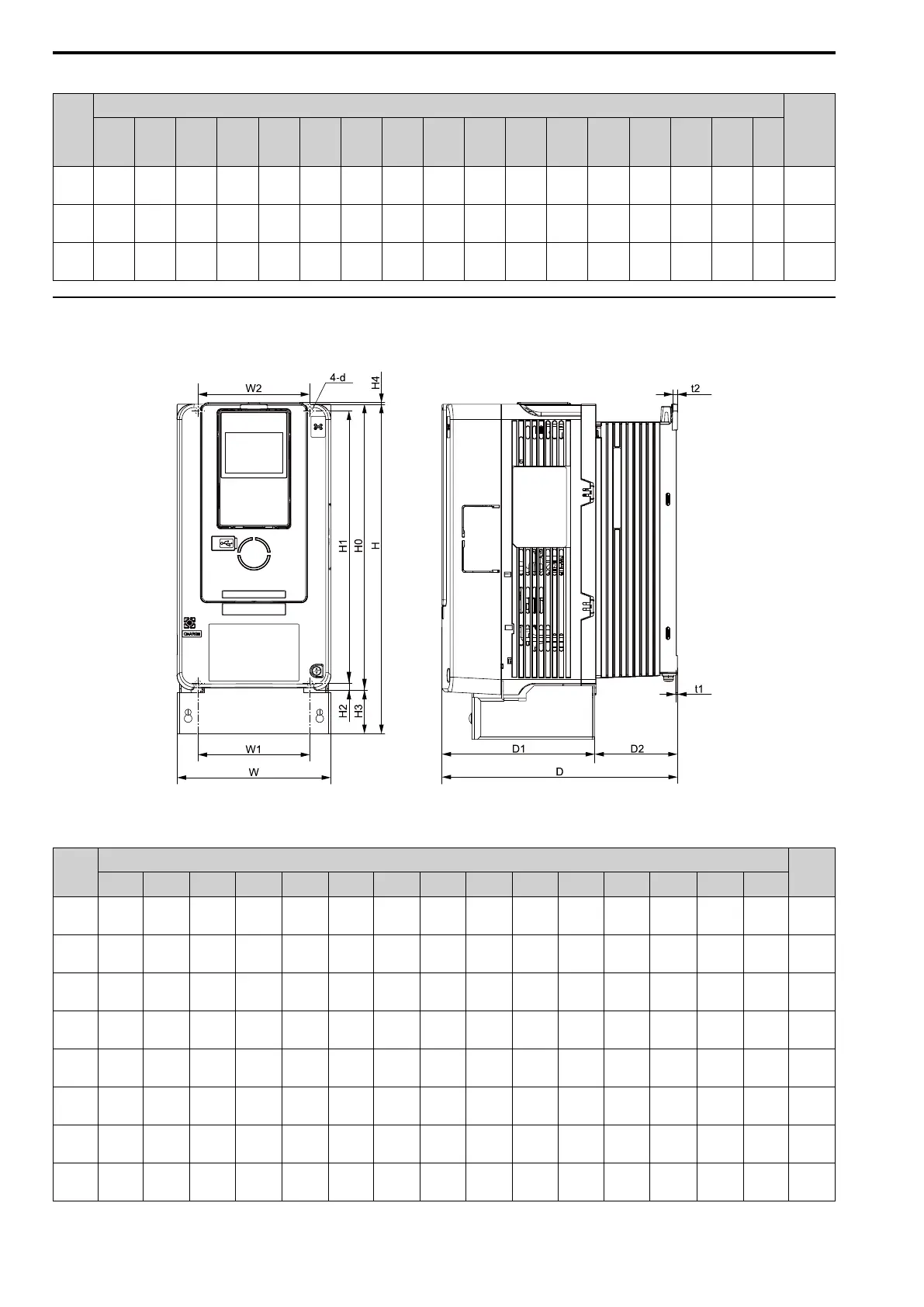

Figure 10.11 Dimension Diagram 1
Table 10.47 Three-Phase 200 V Class (IP20/UL Type 1)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2 H0 H1 H2 H3 H4 t1 t2 d
2004
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.1
(9.04)
2006
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.1
(9.04)
2010
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.1
(9.04)
2012
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.1
(9.04)
2018
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.4
(9.70)
2021
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.4
(9.70)
2030
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.8
(10.58)
2042
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.24)
40
(1.57)
1.5
(0.06)
1.6
(0.06)
5
(0.20)
M5
4.8
(10.58)
