Startup Procedure and Test Run
4

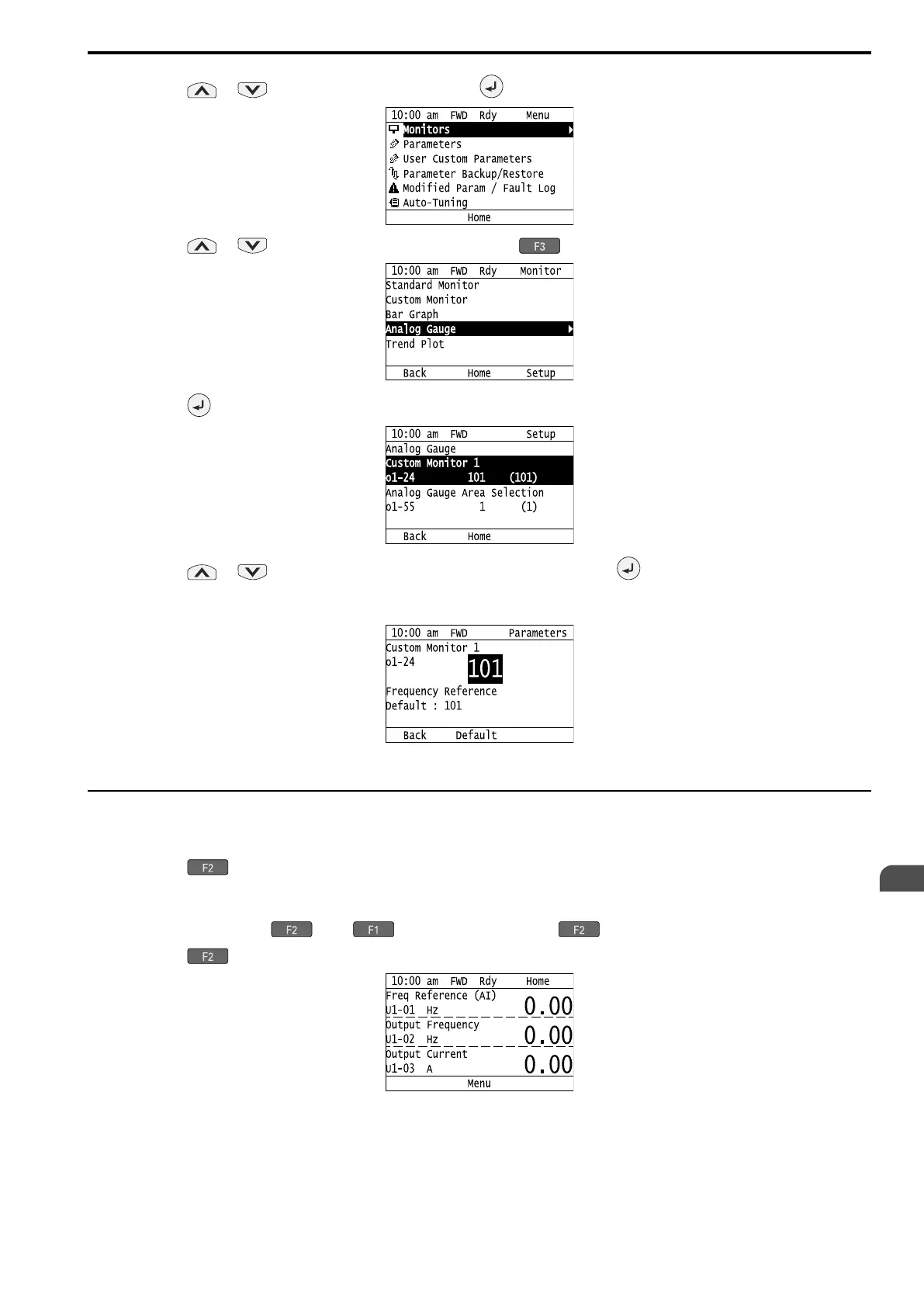

4.6 Keypad Operation
YASKAWA SIEPC71061705H GA700 Series Technical Manual 155
3. Push or to select [Monitors], then push .
4. Push or to select [Analog Gauge], then push [Setup].
5. Push .
6. Push or to select the monitor number to register, then push .
Monitor Set the x-xx part of the Ux-xx. For example, to show monitor U1-01 [Frequency Reference], set it
to "101" as shown in this figure.
The configuration procedure is complete.
◆ Display Monitors as an Analog Gauge
The following explains how to display the contents selected for a monitor as an analog gauge.
1. Push [Home] to show the HOME screen.
Note:
• The keypad will [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push [Back] to show [Home] on .
2. Push [Menu].
