8.4 Replace Cooling Fans and Circulation Fans
404 YASKAWA SIEPC71061705H GA700 Series Technical Manual

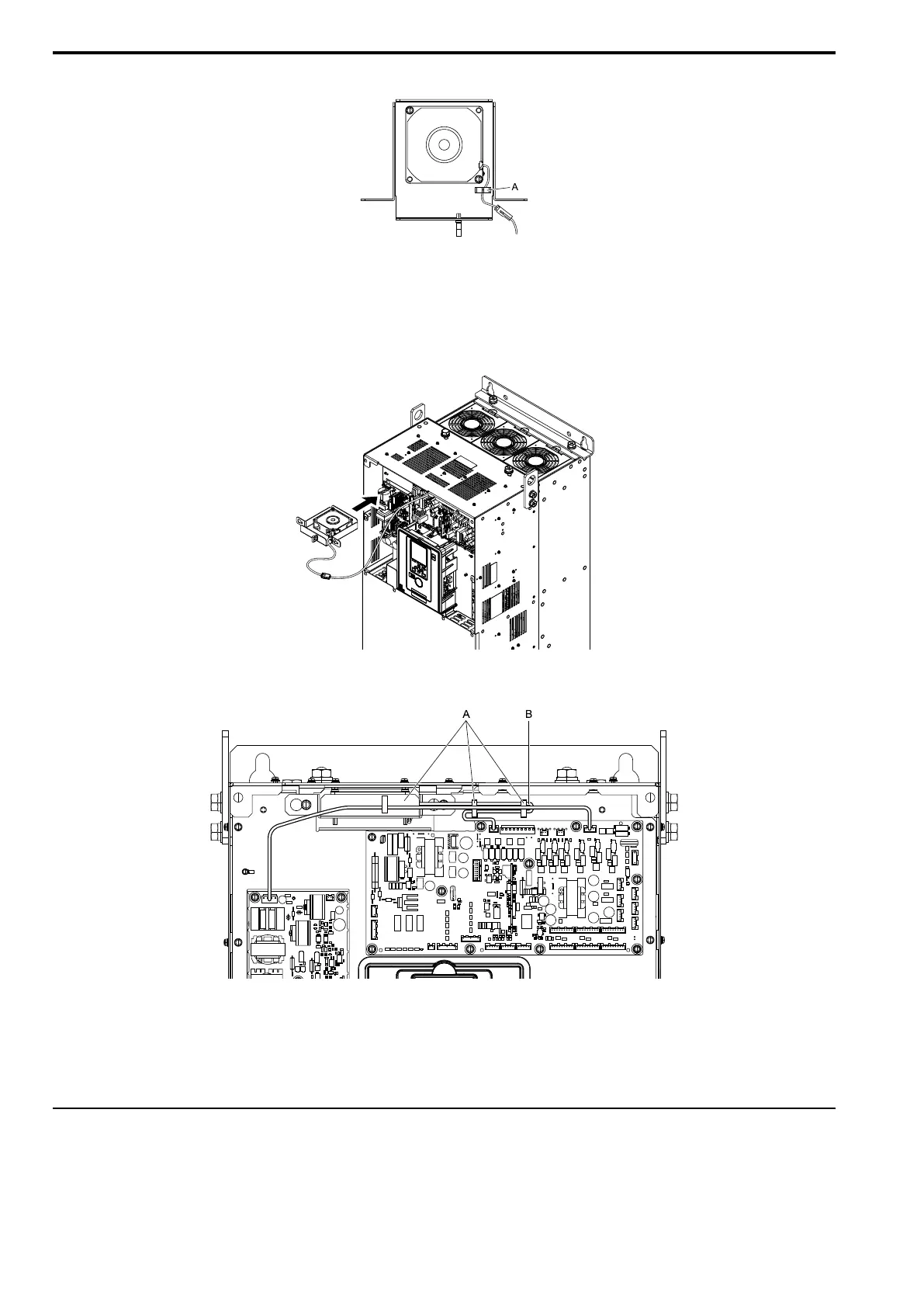

3. Safety the fan cable through the clamp.
A - Clamp
Figure 8.46 Safety the Fan Cable
4. Put the fan unit into the specified location and slide it to the left, then use screws to safety it to the drive.
Tighten the screws to a correct tightening torque:
• 0.98 N∙m to 1.33 N∙m (8.67 lbf∙in to 11.77 lbf∙in)
Figure 8.47 Install the Fan Unit
5. Safety the cable through the clamps.
A - Clamps B - Fan cable
Figure 8.48 Safety the Fan Cable through the Clamps
6. Install the drive cover.
7. Energize the drive and set o4-03 = 0 [Fan Operation Time Setting = 0 h] to reset the fan operation time.
◆ Fan Replacement (Procedure G)
DANGER! Electrical Shock Hazard. Do not examine, connect, or disconnect wiring on an energized drive. Before servicing,
disconnect all power to the equipment and wait for the time specified on the warning label at a minimum. The internal capacitor
stays charged after the drive is de-energized. The charge indicator LED extinguishes when the DC bus voltage decreases
below 50 Vdc. When all indicators are OFF, remove the covers before measuring for dangerous voltages to make sure that the
drive is safe. If you do work on the drive when it is energized, it will cause serious injury or death from electrical shock.
