3.3 Main Circuit Wiring
68 YASKAWA SIEPC71061705H GA700 Series Technical Manual
3.3 Main Circuit Wiring
This section gives information about the functions, specifications, and procedures necessary to safely and
correctly wire the main circuit in the drive.
NOTICE: Damage to Equipment. Do not energize and de-energize the drive more frequently than one time each 30 minutes. If
you frequently energize and de-energize the drive, it can cause drive failure.
Note:
Soldered wire connections can become loose over time and cause unsatisfactory drive performance.
◆ Motor and Main Circuit Connections
WARNING! Electrical Shock Hazard. Do not connect terminals R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, -, +1, +2, +3, B1, or B2 to
the ground terminal. If you connect these terminals to earth ground, it can cause damage to the drive or serious injury or death.
Note:
The location of terminals are different for different drive models.
A - DC bus terminal
B - Connect to the drive ground terminal.
C - Ground the motor case.
D - Three-Phase Motor
E - Use R, S, T for input power supply.
F - Input Protection (Fuses or Circuit Breakers)

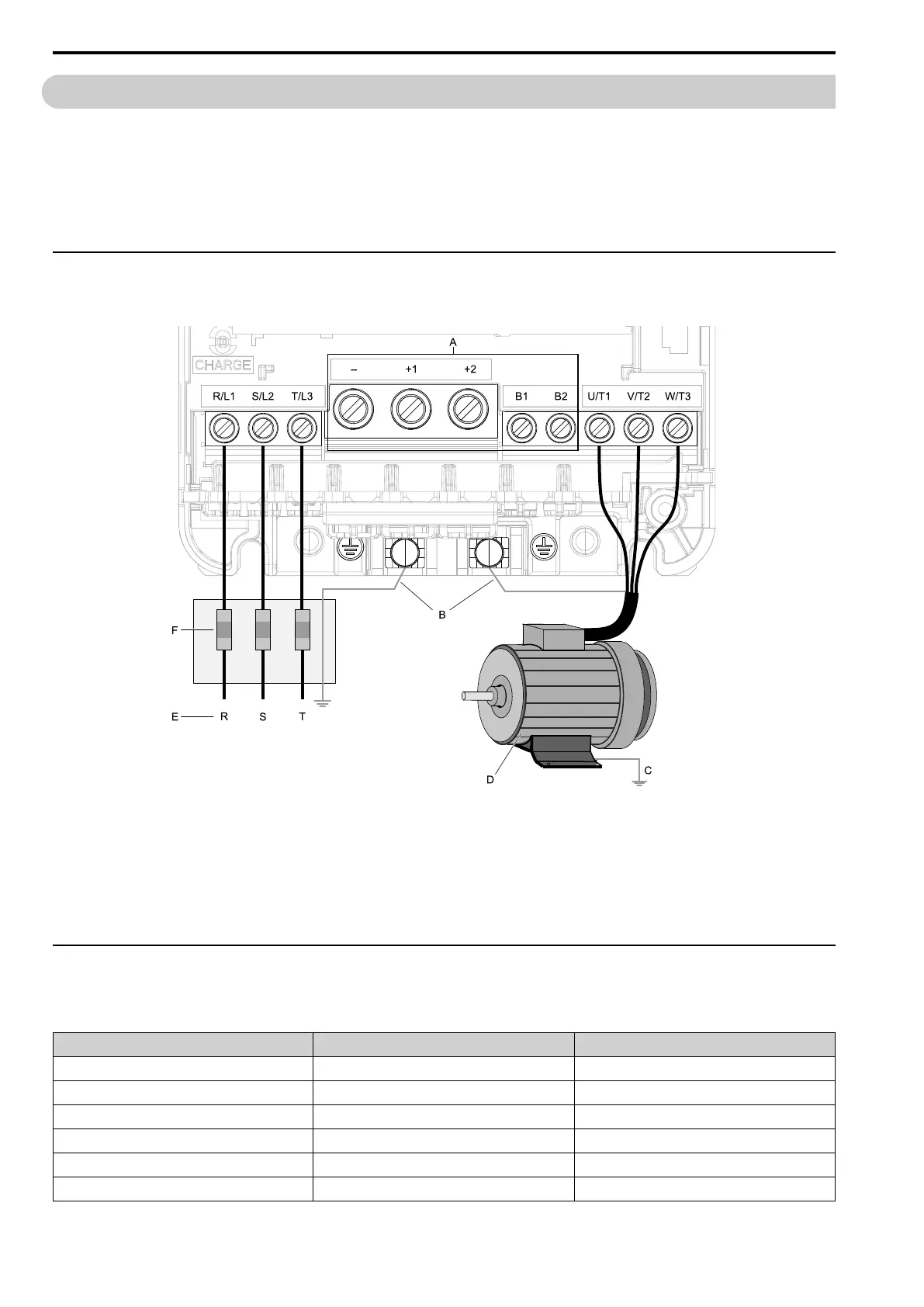

Figure 3.2 Wiring the Main Circuit and Motor
◆ Configuration of Main Circuit Terminal Block
Use Table 3.1 to find the correct main circuit terminal block figure for your drive.
Table 3.1 Configuration of Main Circuit Terminal Block
Model Shape of Terminal
*1
Figure
2004 - 2042, 4002 - 4023 European terminal Figure 3.3
2056, 4031, 4038 European terminal Figure 3.4
2070, 2082 European terminal Figure 3.5
4044 European terminal Figure 3.6
4060 European terminal Figure 3.7
2110 European terminal Figure 3.8
