YASKAWA GA700 Series

Electrical Installation
3
3.3 Main Circuit Wiring
YASKAWA SIEPC71061705H GA700 Series Technical Manual 69
Model Shape of Terminal
*1
Figure
4075 European terminal Figure 3.9
4089 European terminal Figure 3.10
2138, 4103 European terminal Figure 3.11
2169, 2211, 4140, 4168 European terminal Figure 3.12
2257, 2313, 4208 to 4296 Screw terminal Figure 3.13
2360, 2415, 4371, 4389 Screw terminal Figure 3.14
4453 - 4675 Screw terminal Figure 3.15
*1 The ground terminal is a screw terminal.

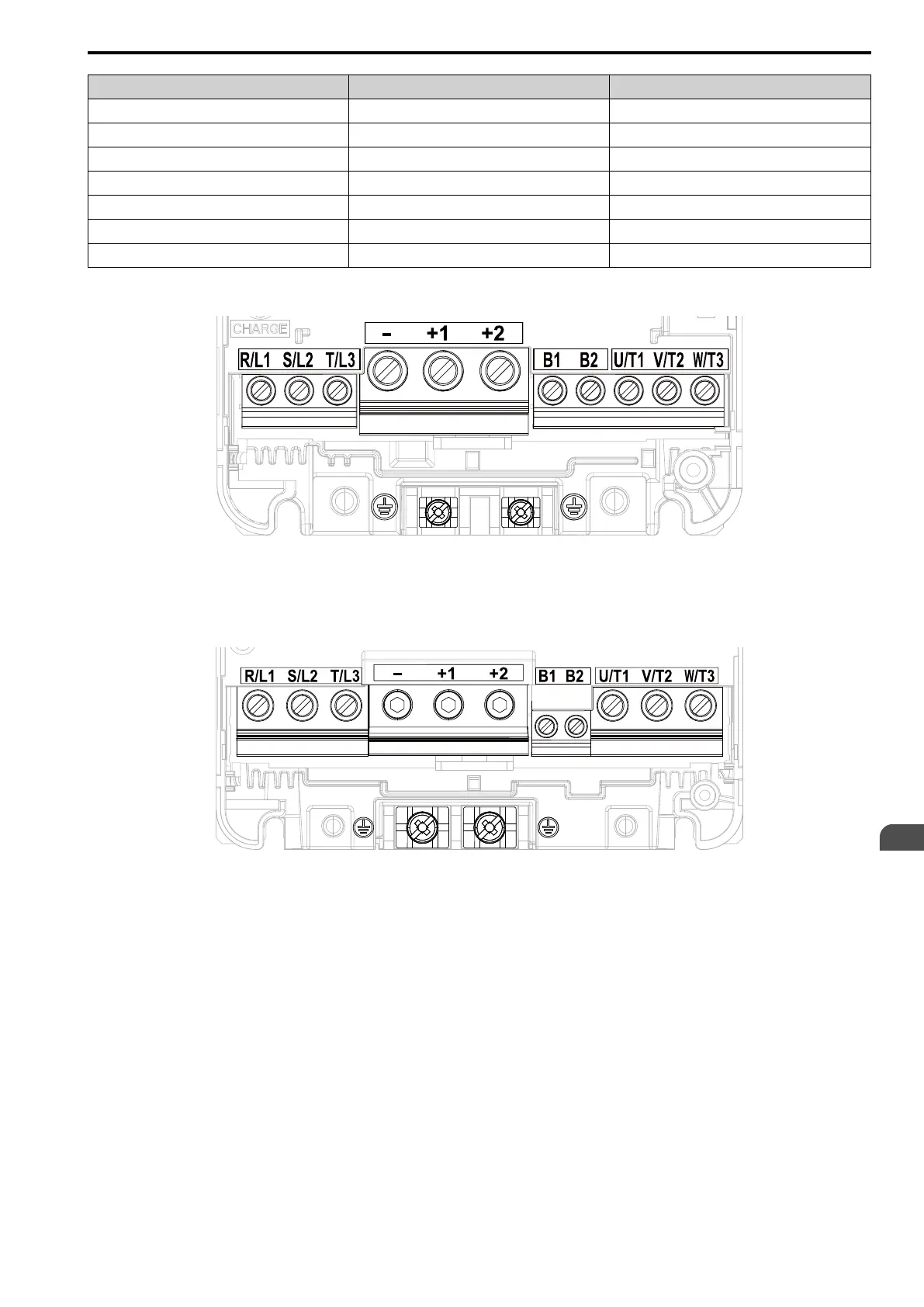

Figure 3.3 Configuration of Main Circuit Terminal Block (2004 - 2042, 4002 - 4023)
Figure 3.4 Configuration of Main Circuit Terminal Block (2056, 4031, 4038)
