4.6 Keypad Operation
YASKAWA SIEPC71061705H GA700 Series Technical Manual 159

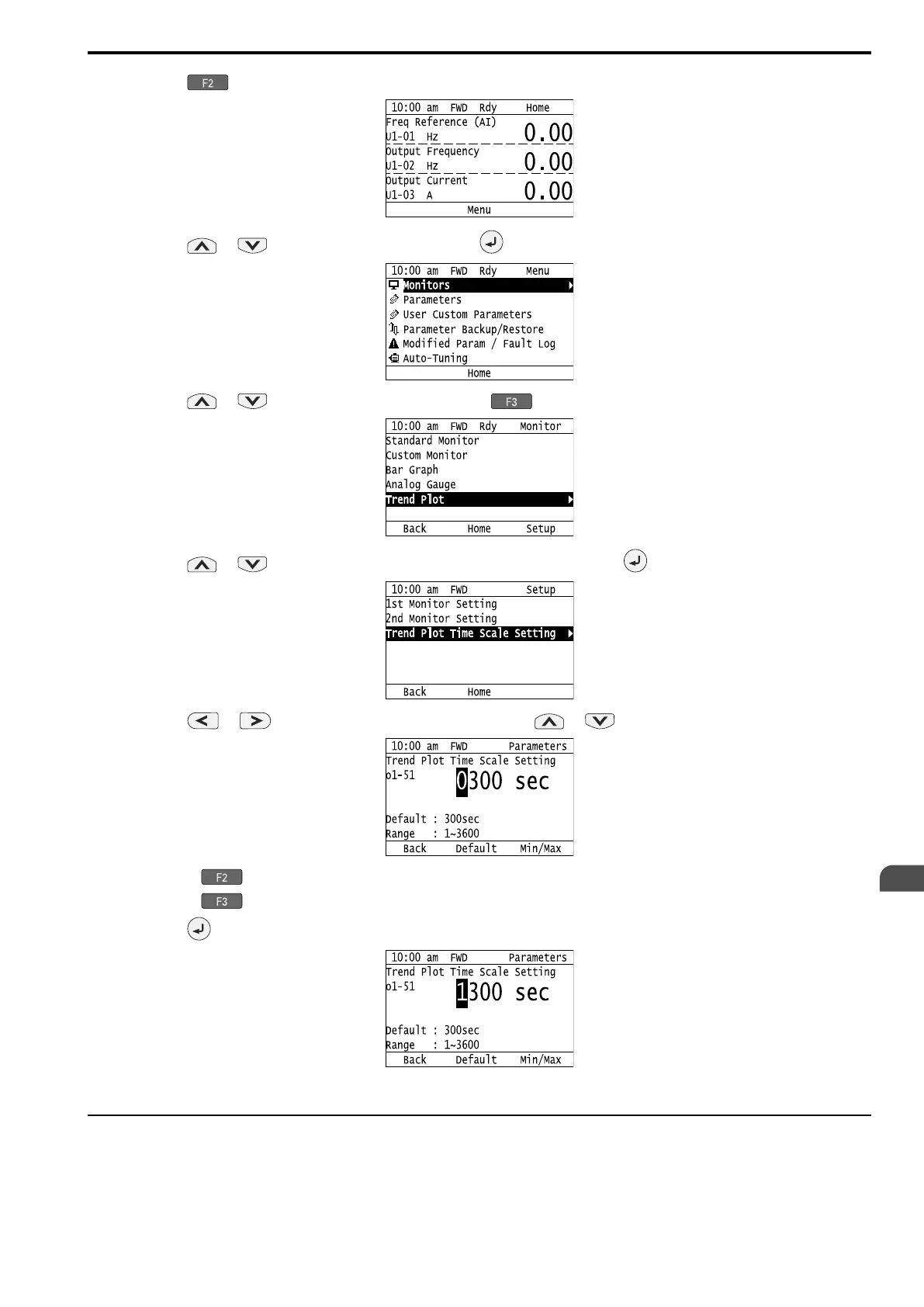

2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Trend Plot], then push (Setup).
5. Push or to select [Trend Plot Time Scale Setting], then push .
6. Push or to select the specified digit, then push or to select the correct number.
• Push (Default) to set the parameters to the factory default.
• Push (Min/Max) to move between the minimum value and maximum value.
7. Push to keep the changes.
The configuration procedure is complete.
◆ Show Monitor Items as a Trend Plot
The procedure in this section shows how to show the selected monitor data as a trend plot.
