10.8 Knock-Out Hole Dimensions (IP20/UL Type 1)
YASKAWA SIEPC71061705H GA700 Series Technical Manual 467
■ 2110, 4075

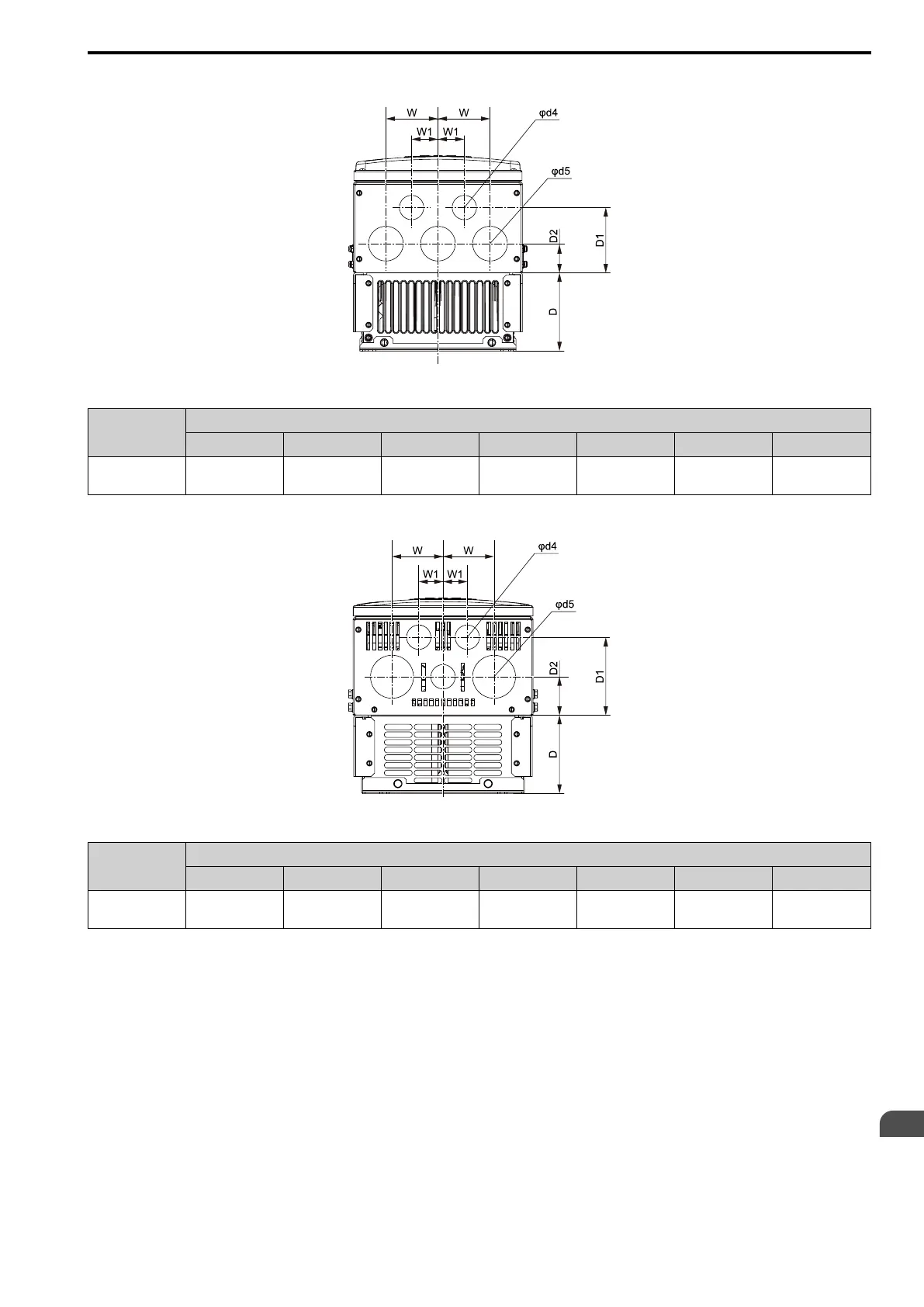

Figure 10.22 Knock-Out Dimensions Diagram 4 (Model: 2110, 4075)
Model
Dimensions mm (in)
D D1 D2 W W1 φd4 φd5
2110
4075
112.5
(4.43)
96
(3.78)
48.5
(1.91)
73
(2.87)
38
(1.50)
35
(1.38)
50
(1.97)
■ 2138, 4089, 4103
Figure 10.23 Knock-Out Dimensions Diagram 5 (Model: 2138, 4089, 4103)
Model
Dimensions mm (in)
D D1 D2 W W1 φd4 φd5
2138
4089, 4103
112.4
(4.43)
112.8
(4.44)
55.8
(2.20)
73.5
(2.89)
35
(1.38)
35
(1.38)
62
(2.44)
