10.8 Knock-Out Hole Dimensions (IP20/UL Type 1)
YASKAWA SIEPC71061705H GA700 Series Technical Manual 469
■ 2257, 2313, 4208 to 4296

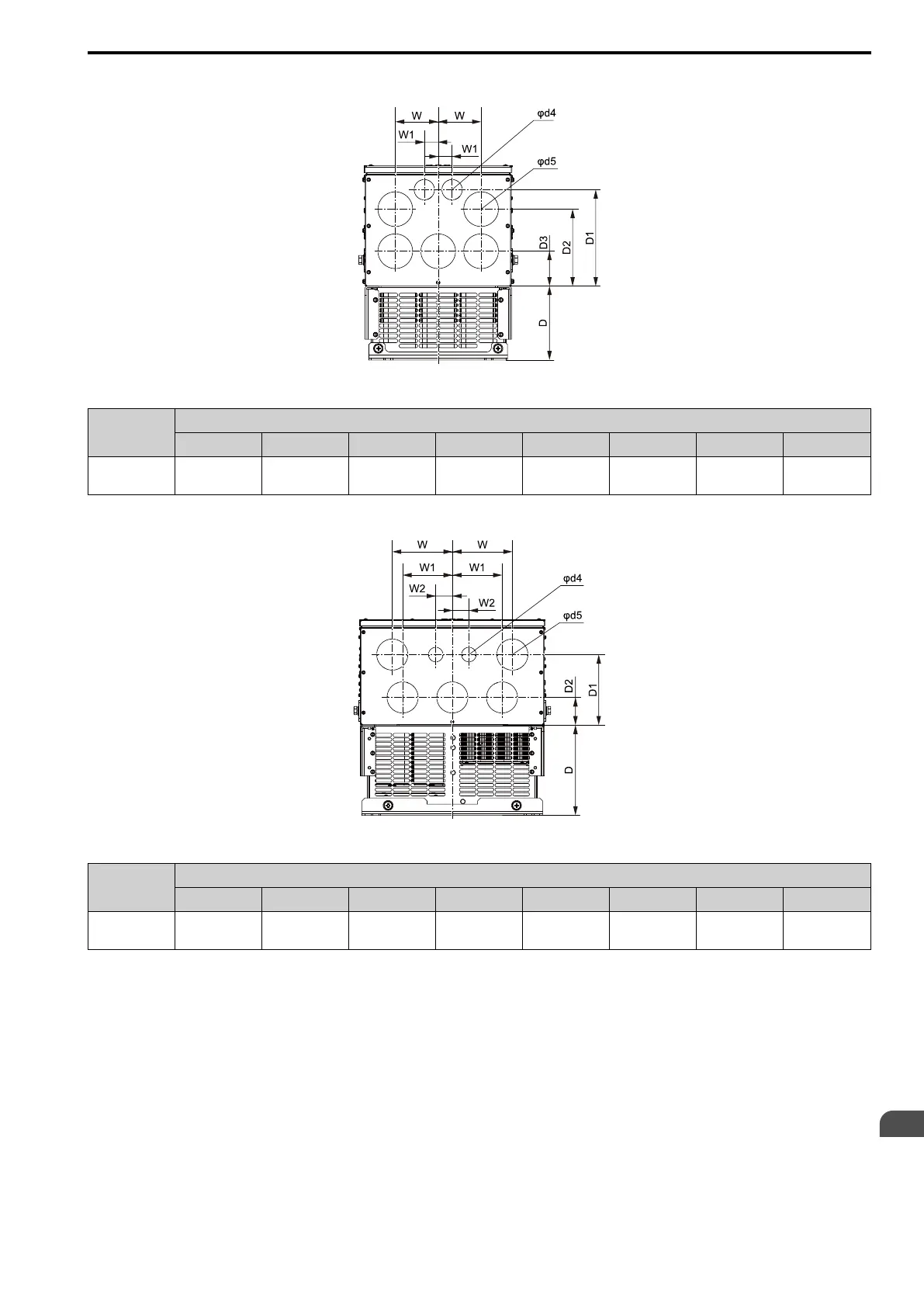

Figure 10.26 Knock-Out Dimensions Diagram 8 (Model:2257, 2313, 4208, 4250, 4296)
Model
Dimensions mm (in)
D D1 D2 D3 W W1 φd4 φd5
2257, 2313
4208, 4250, 4296
160
(6.30)
208.4
(8.20)
166.3
(6.55)
75.3
(2.96)
92.8
(3.65)
27.5
(1.08)
35
(1.38)
62
(2.44)
■ 2360, 4371
Figure 10.27 Knock-Out Dimensions Diagram 9 (Model: 2360, 4371)
Model
Dimensions mm (in)
D D1 D2 W W1 W2 φd4 φd5
2360
4371
218
(8.58)
170
(6.69)
66.6
(2.62)
145
(5.71)
40
(1.57)
120
(4.72)
35
(1.38)
75
(2.95)
