4.6 Keypad Operation
YASKAWA SIEPC71061705H GA700 Series Technical Manual 157

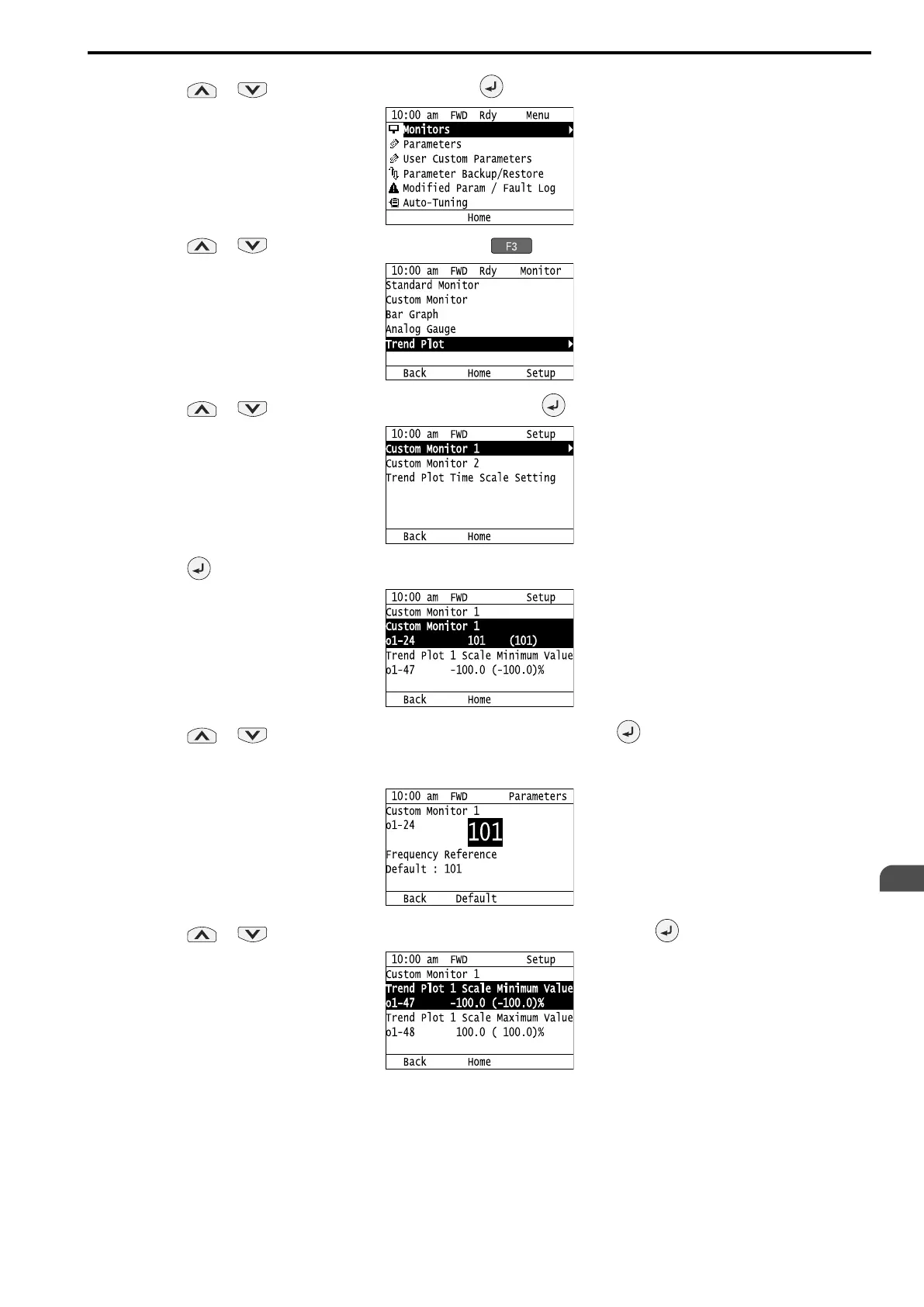

3. Push or to select [Monitors], then push .
4. Push or to select [Trend Plot], then push [Setup].
5. Push or to select [Custom Monitor 1], then push .
6. Push .
7. Push or to select the monitor number to register, then push .
When the U parameters are on the display as "Ux-xx", the three digits in "x-xx" identify which monitor to
output. For example, to show monitor U1-01 [Frequency Reference], set it to "101" as shown in this figure.
8. Push or to select [Trend Plot 1 Scale Minimum Value], then push .
