YASKAWA GA700 Series

5.2 European Standards
232 YASKAWA SIEPC71061705H GA700 Series Technical Manual

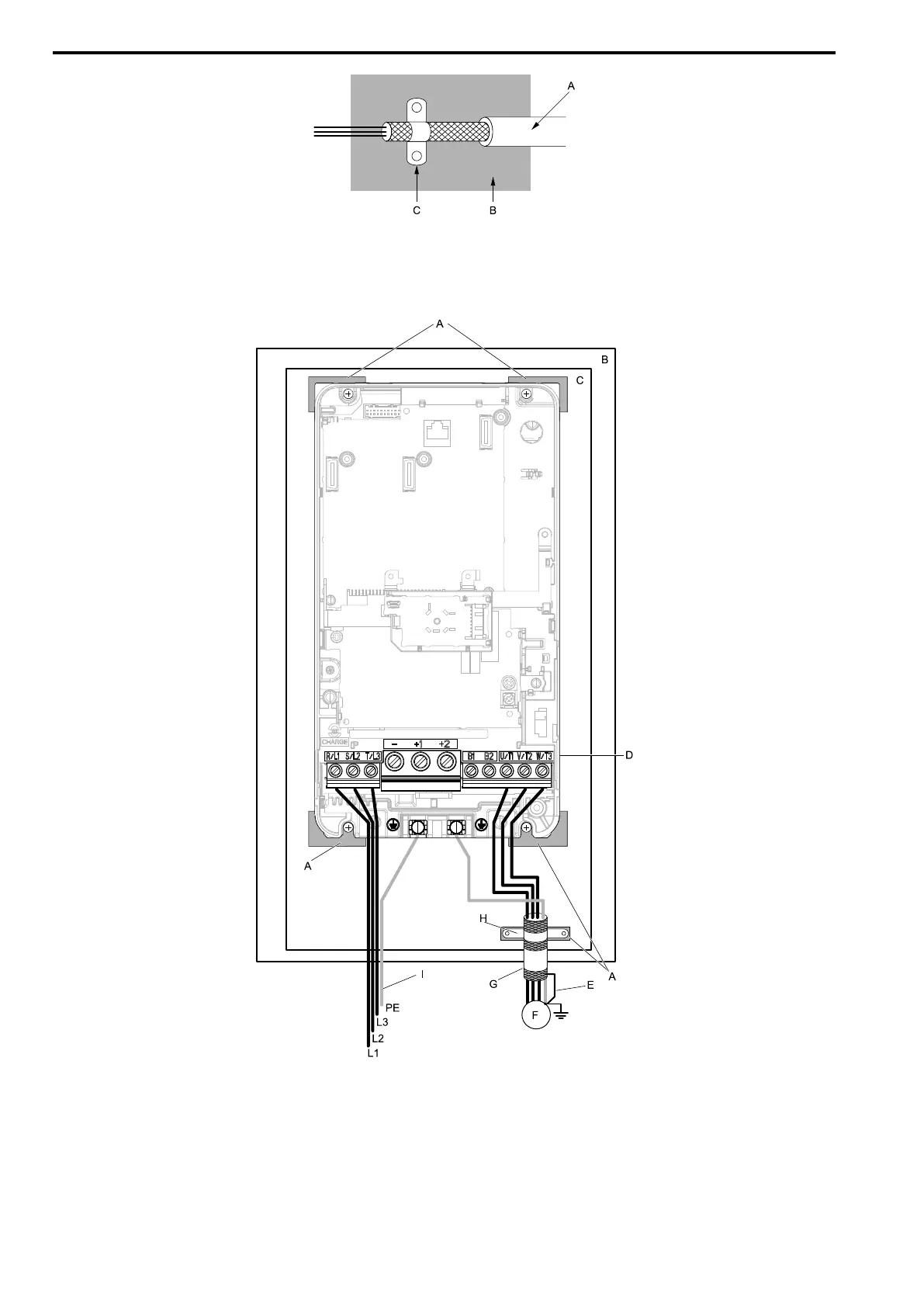

A - Braided shield cable
B - Metal plate
C - Cable clamp (conductive)
Figure 5.5 Ground the Shield
A - Grounding surface (Remove any paint or
sealant.)
B - Enclosure panel
C - Metal plate
D - Drive
E - Shielded wire
F - Motor
G - Motor cable
H - Cable clamp
I - Grounding wire
Figure 5.6 Install a Drive with a Built-in EMC Filter
