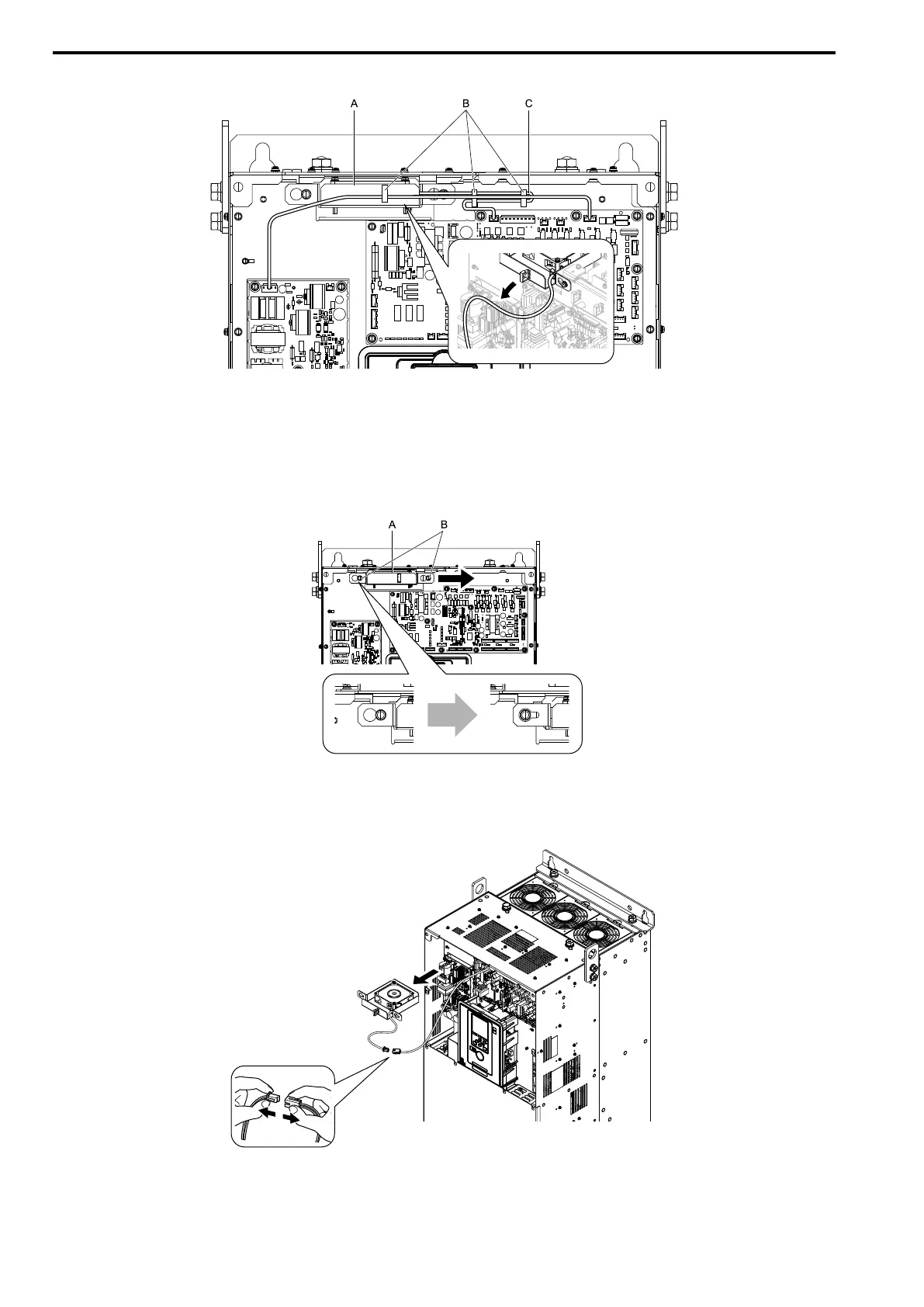

8.4 Replace Cooling Fans and Circulation Fans
402 YASKAWA SIEPC71061705H GA700 Series Technical Manual
1. Remove the cable from the clamps.
A - Fan unit
B - Clamps
C - Fan cable
Figure 8.40 Remove the Fan Cable
2. Loosen the screws that safety the fan unit and slide the fan unit to the right.
Note:
To remove the fan unit, it is only necessary to loosen the screws.
A - Fan unit B - Screws
Figure 8.41 Slide the Fan Unit
3. Disconnect the relay connector and remove the fan unit.
Figure 8.42 Remove the Fan Unit
To Next Page
