8.4 Replace Cooling Fans and Circulation Fans
412 YASKAWA SIEPC71061705H GA700 Series Technical Manual

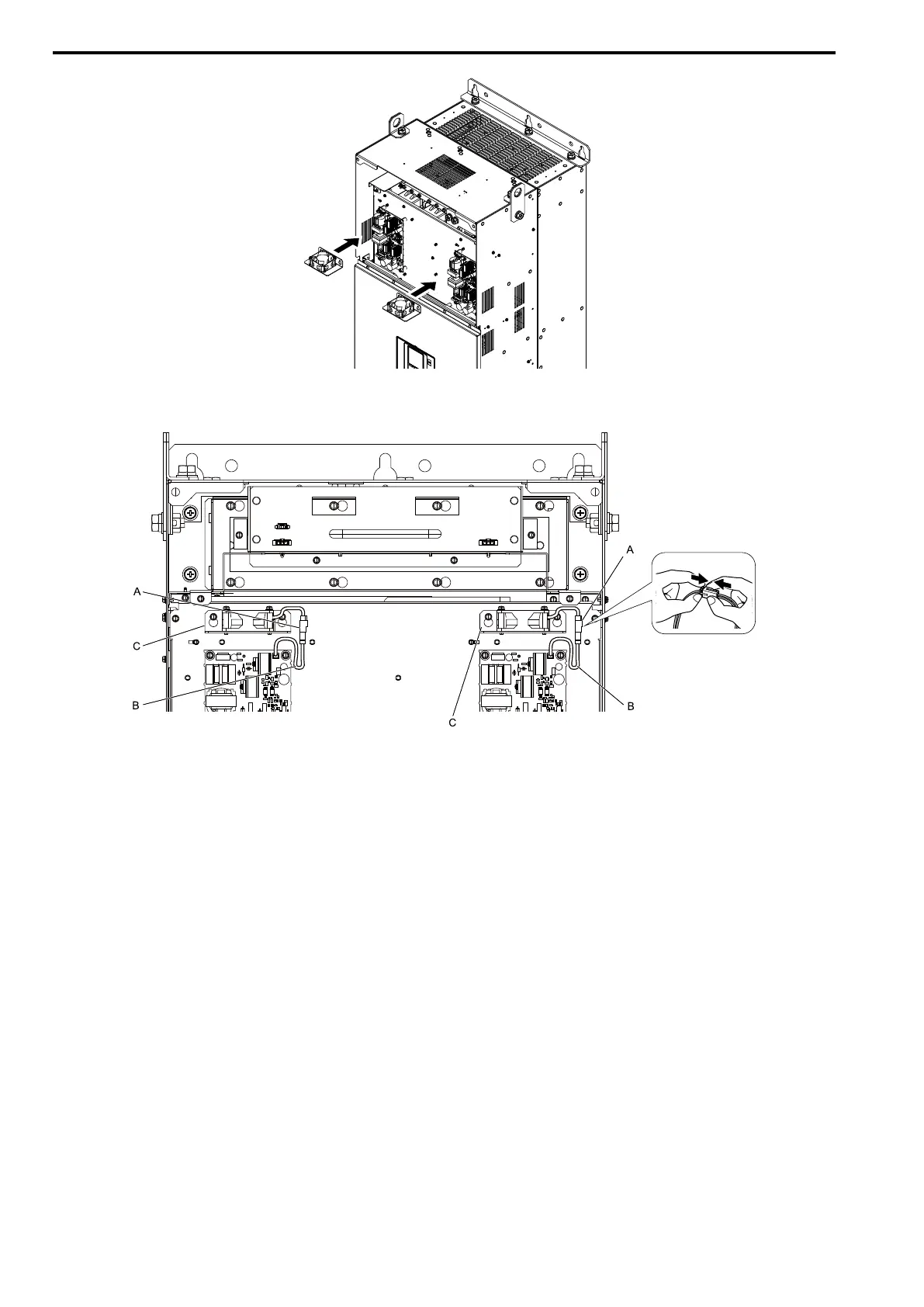

Figure 8.64 Install the Circuit Board Cooling Fan Unit
3. Connect the fan cable to the fan connectors.
A - Fan connectors
B - Fan cable
C - Circuit board cooling fan units
Figure 8.65 Fan Connect Cooling Fan Connectors
4. Install the drive cover.
5. Energize the drive and set o4-03 = 0 [Fan Operation Time Setting = 0 h] to reset the fan operation time.
